Artificial Neural Net

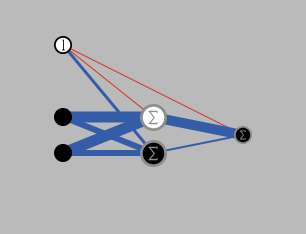

Artificial Neural Net preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

computer science

Tagged by Reuven M. Lerner over 10 years ago

Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.3 • Viewed 1080 times • Downloaded 87 times • Run 0 times
Download the 'Artificial Neural Net' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Click to Run Model

links-own [weight]

breed [bias-nodes bias-node]
breed [input-nodes input-node]
breed [output-nodes output-node]
breed [hidden-nodes hidden-node]

turtles-own [activation err]

globals [
  epoch-error
  input-node-1   ;; keep the input and output nodes
  input-node-2   ;; in global variables so we can
  output-node-1  ;; refer to them directly
]

;;;
;;; SETUP PROCEDURES
;;;

to setup
  clear-all
  ask patches [ set pcolor gray + 2 ]
  set-default-shape bias-nodes "bias-node"
  set-default-shape input-nodes "circle"
  set-default-shape output-nodes "output-node"
  set-default-shape hidden-nodes "output-node"
  setup-nodes
  setup-links
  propagate
  reset-ticks
end

to setup-nodes
  create-bias-nodes 1 [ setxy -5 5 ]
  ask bias-nodes [ set activation 1 ]
  create-input-nodes 1
  [ setxy -5 -1
    set input-node-1 self ]
  create-input-nodes 1
  [ setxy -5 1
    set input-node-2 self ]
  ask input-nodes [ set activation random 2 ]
  create-hidden-nodes 1 [ setxy 0 -1 ]
  create-hidden-nodes 1 [ setxy 0 1 ]
  ask hidden-nodes
  [ set activation random 2
    set size 1.5 ]
  create-output-nodes 1
  [ setxy 5 0
    set output-node-1 self ]
  ask output-nodes [ set activation random 2 ]
end

to setup-links
  connect-all bias-nodes hidden-nodes
  connect-all bias-nodes output-nodes
  connect-all input-nodes hidden-nodes
  connect-all hidden-nodes output-nodes
end

to connect-all [nodes1 nodes2]
  ask nodes1 [
    create-links-to nodes2 [
      set weight random-float 0.2 - 0.1
    ]
  ]
end

to recolor
  ask turtles [
    set color item (step activation) [black white]
  ]
  ask links [
    set thickness 0.1 * abs weight
    ifelse weight > 0
      [ set color red ]
      [ set color blue ]
  ]
end

;;;
;;; TRAINING PROCEDURES
;;;

to train
  set epoch-error 0
  repeat examples-per-epoch [
    ask input-nodes [ set activation random 2 ]
    propagate
    back-propagate
  ]
  tick
  set epoch-error epoch-error / examples-per-epoch
  plotxy ticks epoch-error
end

;;;
;;; FUNCTIONS TO LEARN
;;;

to-report target-answer
  let a [activation] of input-node-1 = 1
  let b [activation] of input-node-2 = 1
  report ifelse-value run-result
    (word "a " target-function " b") [1][0]
end

;;;
;;; PROPAGATION PROCEDURES
;;;

;; carry out one calculation from beginning to end

to propagate
  ask hidden-nodes [ set activation new-activation ]
  ask output-nodes [ set activation new-activation ]
  recolor
end

to-report new-activation  ;; node procedure
  report sigmoid sum [[activation] of end1 * weight] of my-in-links
end

;; changes weights to correct for errors

to back-propagate
  let example-error 0
  let answer target-answer

  ask output-node-1 [
    set err activation * (1 - activation) * (answer - activation)
    set example-error example-error + ( (answer - activation) ^ 2 )
  ]
  set epoch-error epoch-error + example-error
  ask hidden-nodes [
    set err activation * (1 - activation) * sum [weight * [err] of end2] of my-out-links
  ]
  ask links [
    set weight weight + learning-rate * [err] of end2 * [activation] of end1
  ]
end

;;;
;;; MISC PROCEDURES
;;;

;; computes the sigmoid function given an input value and the weight on the link

to-report sigmoid [input]
  report 1 / (1 + e ^ (- input))
end

;; computes the step function given an input value and the weight on the link

to-report step [input]
  report ifelse-value (input > 0.5) [1][0]
end

;;;
;;; TESTING PROCEDURES
;;;

;; test runs one instance and computes the output

to test
  ;; output the result
  ifelse test-success? input-1 input-2
    [ user-message "Correct." ]
    [ user-message "Incorrect." ]
end

to-report test-success? [n1 n2]
  ask input-node-1 [ set activation n1 ]
  ask input-node-2 [ set activation n2 ]
  propagate
  report target-answer = step [activation] of one-of output-nodes
end
