HOTnet-maps
Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)
WHAT IS IT?
In some networks, a few "hubs" have lots of connections, while everybody else only has a few. This model shows one way such networks can arise.
Such networks are ubiquitous of real world situations, ranging from the connections between websites to the collaborations between actors.
The model generates these networks by a process of "Highly/Heuristically Optimized/Organized Tolerance/Tradeoffs", in which new network members make a connection to the members which optimize multiple functional objectives.
HOW IT WORKS
The model starts with two nodes connected by an edge: the root node, in the center, and a node situated randomly in the space.
At each step, a new node is added. A new node is created in a random place in the space and then it chooses to attach himself to the node which minimizes the sum of two objectives: Euclidean distance from the node to attach to and number of hops from the root node.
HOW TO USE IT
First you have to hit SETUP button which draws the world. Pressing the GO-ONCE button adds a new city. To continuously add cities, press GO. Cities have colours representative of their population, the darker the bigger.
The PLOT? switch turns off the plots.

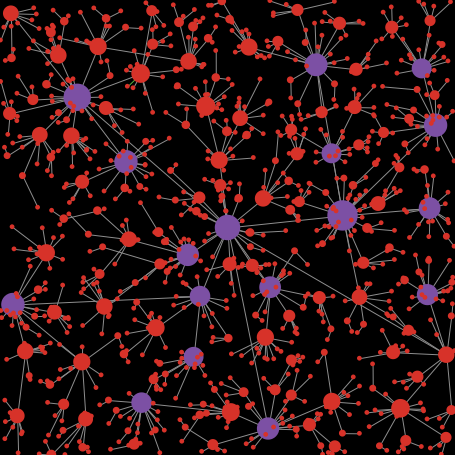

The RESIZE-NODES button will make all of the nodes take on a size representative of their degree magnitude. If you press it again the nodes will return to equal size.
If you want save node degrees on a file for later use, push SAVE-NODE-DEGREES. It will save a file called "NodesDegree.txt". If you want you can export node connectivity in a text format which can be imported by softwares like Cytoscape.
If you want the model to run faster, you can turn off the PLOT? switch, slide to the right the speed and/or uncheck "view updates".
THINGS TO NOTICE
The networks that result from running this model are often called "power law" networks. These are networks in which the distribution of the number of connections of each node is not a normal distribution --- instead it follows what is a called a power law distribution. Power law distributions are different from normal distributions in that they do not have a peak at the average, and they are more likely to contain extreme values. Alex Fabrikant, Elias Koutsoupias, and Christos H. Papadimitriou propose a plausible explanation of the power law distributions of degrees observed in the graphs arising in the Internet topology based on a toy model of Internet growth in which two objectives are optimized simultaneously: “last mile” connection costs, and transmission delays measured in hops. Results seem to suggest that power laws tend to arise as a result of complex, multi-objective optimization. John C. Doyle et al. goes even further showing the power of S-metric and how this kind of networks can have greater performance and resilience than "scale-free" networks like "preferential attachment" of Barabasi & Albert.
You can see the degree distribution of the network in this model by looking at the plots. The top plot is a histogram of the degree of each node. The bottom plot shows the same data, but both axes are on a logarithmic scale. When degree distribution follows a power law, it appears as a straight line on the log-log plot. One simple way to think about power laws is that if there is one node with a degree distribution of 1000, then there will be ten nodes with a degree distribution of 100, and 100 nodes with a degree distribution of 10.
THINGS TO TRY
Let the model run a little while. How many nodes are "hubs", that is, have many connections? How many have only a few? Does some low degree node ever become a hub? How often?
Allow a large network to form. What is the shape of the histogram in the top plot? What do you see in log-log plot? Notice that the log-log plot is only a straight line for a limited range of values. Why is this? Does the degree to which the log-log plot resembles a straight line grow as you add more node to the network?
EXTENDING THE MODEL
Assign an additional attribute to each node. Make the attachment depend on this new attribute as well as on degree or other parameters.
In this network all nodes are peers but this is not the case of internet where differences exist between end users and ISPs; can be power law degrees distribution preserved?
What about S(g)? How does it vary? Why?
NETWORK CONCEPTS

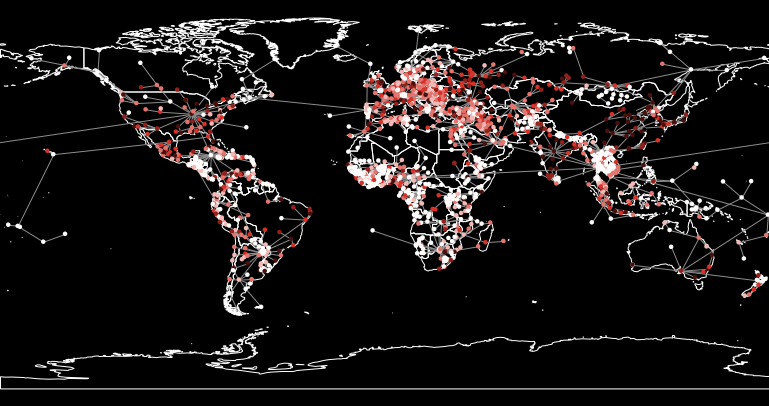

There are many ways to graphically display networks. This model uses GIS estension to allow realist representation of the world.
NETLOGO FEATURES
Nodes are turtle agents and edges are link agents.
RELATED MODELS
See other models in the Networks section of the Models Library, such as Giant Component or Preferential Attachment.
See also Network Example, in the Code Examples section.
CREDITS AND REFERENCES
This model is based on:
Alex Fabrikant, Elias Koutsoupias, and Christos H. Papadimitriou. Heuristically Optimized Trade-offs: A New Paradigm for Power Laws in the Internet.
For a more technical treatment, see also:
Lun Li, David Alderson, Reiko Tanaka, John C. Doyle, Walter Willinger. Towards a Theory of Scale-Free Graphs: Definition, Properties, and Implications,
Technical Report CIT-CDS-04-006, Engineering & Applied Sciences Division California Institute of Technology, Pasadena, CA, USA.
HOW TO CITE
If you mention this model in a publication, we ask that you include these citations for the model itself and for the NetLogo software:
- Tomasini Marcello (2012). HOTnet model.
Student at University of Modena and Reggio Emilia.
- Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.
COPYRIGHT AND LICENSE
Copyright 2012 Tomasini Marcello, Marcello.Tomasini@gmail.com
This work is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-sa/3.0/ or send a letter to Creative Commons, 559 Nathan Abbott Way, Stanford, California 94305, USA.
Comments and Questions
extensions [ gis ] globals [ cities-dataset countries-dataset citiesVectorFeature ] breed [ cities city ] ;; the number of hops from a fixed center of the tree cities-own [ nhop ] ;;;;;;;;;;;;;;;;;;;;;;;; ;;; Setup Procedures ;;; ;;;;;;;;;;;;;;;;;;;;;;;; to setup clear-all ; Note that setting the coordinate system here is optional, as ; long as all of your datasets use the same coordinate system. gis:load-coordinate-system (word "data/" projection ".prj") ; Load all of our datasets set cities-dataset gis:load-dataset "data/cities/cities.shp" ;set cities-dataset gis:load-dataset "data/cities.shp" set countries-dataset gis:load-dataset "data/countries.shp" ;; Set the world envelope to the union of all of our dataset's envelopes gis:set-world-envelope (gis:envelope-union-of (gis:envelope-of cities-dataset) (gis:envelope-of countries-dataset)) ;; Display countries gis:set-drawing-color white gis:draw countries-dataset 1 ;; list of cities represented by VectorFeature ordered by country ;set citiesVectorFeature sort-by [gis:property-value ?1 "CNTRY_NAME" > gis:property-value ?2 "CNTRY_NAME"] gis:feature-list-of cities-dataset ;set citiesVectorFeature sort-by [gis:property-value ?1 "COUNTRY" > gis:property-value ?2 "COUNTRY"] gis:feature-list-of cities-dataset ;; list of cities represented by VectorFeature in a random order set citiesVectorFeature shuffle gis:feature-list-of cities-dataset set-default-shape cities "circle" ;; create first 2 cities connected by a backbone create-cities 1 [ let location gis:location-of (first (first (gis:vertex-lists-of item 0 citiesVectorFeature))) setxy item 0 location item 1 location set size 1 ;; set color of the city proportionally with population: darker = bigger set color scale-color red (gis:property-value item 0 citiesVectorFeature "POP_RANK") 1 7 ;set color scale-color red (gis:property-value item 0 citiesVectorFeature "POPULATION") 5000000 1000 set nhop 0 ] create-cities 1 [ let location gis:location-of (first (first (gis:vertex-lists-of item 1 citiesVectorFeature))) setxy item 0 location item 1 location set size 1 ;; set color of the city proportionally with population: darker = bigger set color scale-color red (gis:property-value item 1 citiesVectorFeature "POP_RANK") 1 7 ;set color scale-color red (gis:property-value item 0 citiesVectorFeature "POPULATION") 5000000 1000 create-link-with turtle 0 [ set color green ] set nhop 1 ] reset-ticks end ;;;;;;;;;;;;;;;;;;;;;;; ;;; Main Procedures ;;; ;;;;;;;;;;;;;;;;;;;;;;; to go if (ticks + 2) = length citiesVectorFeature [ stop ] ;; new edge is green, old edges are gray ask links [ set color gray ] ;; index of the list cities let current-city item (ticks + 2) citiesVectorFeature ; a feature in a point dataset may have multiple points, so we ; have a list of lists of points, which is why we need to use ; first twice here let location gis:location-of (first (first (gis:vertex-lists-of current-city))) ; location will be an empty list if the point lies outside the ; bounds of the current NetLogo world, as defined by our current ; coordinate transformation if not empty? location [ ;; The behavior of the model depends crucially on the value of alfa: ;; if alfa is less than a particular constant depending on the shape of the region, ;; then Euclidean distances are not important, and the resulting network is easily seen to be a star, ;; the ultimate in degree concentration, and, depending on how you look at it, the exact opposite, or absurd extreme, of a power law. ;; If alfa grows at least as fast as sqrt(n), where n is the final number of points, then Euclidean distance becomes too important, ;; and the resulting graph is a dynamic version of the Euclidean minimum spanning tree, in which high degrees do occur, ;; but with exponentially vanishing probability. ;; If, however, alfa is anywhere in between — is larger than a certain constant, but grows slower than sqrt(n) if at all — ;; then, almost certainly, the degrees obey a power law. let x item 0 location let y item 1 location let partner nobody ;; Node i attaches itself to the node j that minimizes the weighted sum of the two objectives: ;; alfa * dij + hj ;; where dij is the /normalized/ Euclidean distance, and hj is some measure of the “centrality” of node j, such as ;; (a) the average number of hops from other nodes; ;; (b) the maximum number of hops from another node; ;; (c) the number of hops from a fixed center of the tree; ;; all three measures result in similar power laws. ;; We use metric (b). To compute it we choose tourtle 0 as the center of our network. Then the maximum number of hops from a node is: ;; number of hops of the node from the center + maximum number of hops a node is from the center. ;; we must check the case when nodes with maximum number of hop are children of current node to don't overstimate hj by an excess of max_nhop - 1 ;; Optionally there is a preference to attach to bigger city set partner min-one-of cities [ alfa * sqrt ( ;;( (x - min-pxcor + 0.5) / (max-pxcor - min-pxcor) - (xcor - min-pxcor + 0.5) / (max-pxcor - min-pxcor) ) ^ 2 + ( (x - xcor) / (max-pxcor - min-pxcor) ) ^ 2 + ;;( (y - min-pycor + 0.5) / (max-pycor - min-pycor) - (ycor - min-pycor + 0.5) / (max-pycor - min-pycor) ) ^ 2 ( (y - ycor) / (max-pycor - min-pycor) ) ^ 2 ) + hj self + ifelse-value (city_size_pref? and gis:property-value current-city "POP_RANK" > 0) ;+ ifelse-value (city_size_pref? and gis:property-value current-city "POPULATION" > 0) ;; the greater is the city the less is the added value ;; 7 less than 50K ;; 6 50K < people < 100K ;; 5 100K < people < 250K ;; 4 250K < people < 500K ;; 3 500K < people < 1M ;; 2 1M < people < 5M ;; 1 greater than 5M [ gis:property-value current-city "POP_RANK" ] [0] ] if partner != nobody [ create-cities 1 [ setxy x y set size 1 ;; set color of the city proportionally with population: darker = bigger set color scale-color red (gis:property-value current-city "POP_RANK") 1 7 ;set color scale-color red (gis:property-value current-city "POPULATION") 5000000 1000 create-link-with partner [ set color green ] set nhop 1 + [ nhop ] of partner ] ] ] ;; END if not empty? location tick end ;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;; Compute hj heuristic ;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;; to-report hj [node] let max_nhop max [nhop] of cities ;; if all cities at max_nhop are children of current-city then decrease hj while [ all? cities with [nhop = max_nhop] [ is-child node max_nhop] ] [ set max_nhop max_nhop - 1 ] report max_nhop + [nhop] of node end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;; Find if city at max_ops is child of current-city ;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to-report is-child [root max-nhop] let child false if root != city 0 ;; all cities are children of the root of the tree, so don't check it! [ ask root [ ask link-neighbors with [nhop > [nhop] of root] [ ifelse nhop = max-nhop [ set child true ] [ set child is-child self max-nhop] ;; use of recursion to traverse the tree ] ] ] report child end ;;;;;;;;;;;;;;;;;;;; ;;; Compute s(g) ;;; ;;;;;;;;;;;;;;;;;;;; to-report log-likelihood let s 0 ;; for each link compute di*dj and sum it to s ask links [ set s s + [ count link-neighbors ] of end1 * [ count link-neighbors ] of end2 ] report s end ;;;;;;;;;;;;;;;;;;;;;;;; ;;; Compute S-metric ;;; ;;;;;;;;;;;;;;;;;;;;;;;; to-report relative-log-likelihood let smax 0 let counter 0 let di 0 let child 0 ;; D = { d1, d2, d3, ..., dn }, d1 >= d2 >= d3 >= ... >= dn let degree-sequence sort-by > [ count link-neighbors ] of turtles set di item 0 degree-sequence set degree-sequence remove-item 0 degree-sequence foreach degree-sequence [ set smax smax + di * ? set counter counter + 1 if di = counter ;; we have iterated through all di's childs; if di = 0 select the highest degree. [ set counter 1 ;; count the parent if it's not the root set di item child degree-sequence ;; select child; child = 0 is the root. set child child + 1 ] ] report log-likelihood / smax end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;; Save Nodes Degrees to file ;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to save-node-degree-to-file if file-exists? "NodeDegrees.txt" [ file-delete "NodeDegrees.txt" ] file-open "NodesDegrees.txt" ;; save in descending orders ;; D = { d1, d2, d3, ..., dn }, d1 >= d2 >= d3 >= ... >= dn foreach sort-by > [ count link-neighbors ] of turtles [ file-print ? ] file-close end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;; Export Graph Connectivity to txt ;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to export-graph if file-exists? "HOTGraph.txt" [ file-delete "HOTGraph.txt" ] file-open "HOTGraph.txt" ;; write each linked couple of tourtles and their degree ask links [ file-type [who] of end1 ;; writes without blank spaces file-write [who] of end2 ;; write a space value space file-print "" ;; write carriage return ] file-close end ;;;;;;;;;;;;;; ;;; Layout ;;; ;;;;;;;;;;;;;; ;; resize-nodes, change back and forth from size based on degree to a size of 1 to resize-nodes ifelse all? turtles [size = 1] [ ;; a node is a circle with diameter determined by ;; the SIZE variable; using SQRT makes the circle's ;; area proportional to its degree ask turtles [ set size sqrt count link-neighbors ] ] [ ask turtles [ set size 1 ] ] end ; Copyright 2013 Tomasini Marcello. ; See Info tab for full copyright and license.
