lookuptable example

No preview image

1 collaborator

Tags

code example

Tagged by Geerten Hengeveld over 9 years ago

Parent of 1 model: lookuptable example 2
Visible to everyone | Changeable by the author
Model was written in NetLogo 5.0.4 • Viewed 316 times • Downloaded 34 times • Run 0 times
Download the 'lookuptable example' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

why posting this

In implementing this breed, I found that you can completely declare all breed-relevant information in one .nls (including the breed[] and breed-own[] section) which makes this .nls a library that implements this fun code example for a lookuptable in a list-of-lists style. just download the .nls from the files section, and include it in your model, and you can use the functionality...

Posted over 9 years ago

Click to Run Model

;__includes ["lookuptablefunctionality.nls"]


globals [lookuptablenr]





;implements a crude lookuptable breed.
;a turtle of this breed contains a list of row names, a list of column names and a table
;a procedure is provided to initialise a turtle with a filename where it can read a table from
;a procedure is provided to read the table into the turtle (extracting the lists of rownames and columnnames)
;a procedure is provided to report the cell content as string based on row and column names (as strings)
;
; #### this implementation does not check for the correctness of the table
;  ####in case of repeated row or columnames, only the first can be found, no warnings given
;  ####this does not hanlde missing values in the table
;
; ### the table is stored as a list of lists (each row is a list, for simplicity in reading the file)
; ### the current implenetation sees the rownames as part of the lookuptable, the columnames are not
;
; ### the input file should be a comma-seperated fulle matrix
; e.g.
; names,eyes,hair,shirt
; pete,blue,brown,black
; dan,brown,blond,white
;
; in this example the reporter would need the inputs  "shirt" and "pete" to report "black"
;
; If it does not work, blame me Geerten.Hengeveld@wur.nl


breed [t_lookuptables t_lookuptable]
t_lookuptables-own [lutt_table  lutt_collist lutt_rowlist]

to-report luto_rp_setuplookuptable [filename] ; observer procedure from the lookuptable
  let whostore 0
  create-t_lookuptables 1 [
                             lutt_p_readtable filename
                             set hidden? true ; this also makes it difficult to visually inspect the lookuptable
                             set whostore who
                           ]
  report whostore ; use this to be able to extract information from this lookuptable!
end

to-report luto_rp_ShowFromLookuptable [whostore colname rowname] ; observer procedure from the lookuptable
  report [lutt_rp_lookup colname rowname] of t_lookuptable whostore
end

to-report luto_rp_ShowValueFromLookuptable [whostore colname rowname] ; observer procedure from the lookuptable
  let tablestring [lutt_rp_lookup colname rowname] of t_lookuptable whostore
  ifelse (tablestring != false)
  [  report read-from-string [lutt_rp_lookup colname rowname] of t_lookuptable whostore ]
  [report false]
end

to-report luto_rp_ColumnsInLookuptable [whostore]
 report [lutt_collist] of t_lookuptable whostore
end

to-report luto_rp_RowsInLookuptable [whostore]
 report [lutt_rowlist] of t_lookuptable whostore
end

to-report luto_rp_ShowColumnFromLookuptable [whostore columnname]
  report [lutt_rp_column columnname] of t_lookuptable whostore
end

to-report luto_rp_ShowColumnValuesFromLookuptable [whostore columnname]
  report [lutt_rp_columnvalues columnname] of t_lookuptable whostore
end



;--------------lookup table internals-------------

to lutt_p_readtable [filename]                               ; turtle procedure from the lookuptable
  ;should actually be a reporter procedure reporting true if initalisation worked...

  let temp_list (list 0) ; initialise the lists use but-first lateron to remove the 0
  set lutt_collist (list 0)
  set lutt_rowlist (list 0)
  set lutt_table (list 0)

  file-open filename ;should be a csv - no check currently on whether the file opens correctly!
    let p file-read-line ;the header line, should be put into the list lutt_collist
    while [position "," p != false]
    [
       set lutt_collist lput (substring p 0 (position "," p)) lutt_collist
       set p substring p (position "," p + 1) length p
    ]
    set lutt_collist lput p lutt_collist ;add the last element
    set lutt_collist but-first lutt_collist ;remove the initial 0

  ;initialise the table: each row will be a list in the table
  while [not file-at-end?]
     [
       set p file-read-line
       set temp_list (list 0)

        while [position "," p != false]
       [
       set temp_list lput ( substring p 0 (position "," p)) temp_list
       set p substring p (position "," p + 1) length p
       ;store elements in the right order!
       ]
       set temp_list lput p temp_list
       set temp_list but-first temp_list ;remove 0 from start
       set lutt_table lput temp_list lutt_table
     ]
     set lutt_table but-first lutt_table

     foreach lutt_table  ; initialise a list of all rownames: the first items of the rows in the table
     [
       set lutt_rowlist lput item 0 ? lutt_rowlist
     ]
     set lutt_rowlist but-first lutt_rowlist
     file-close
end


;this reporter will report a string! use read-from-string to interpret output as value

to-report lutt_rp_lookup [colname rowname]                   ; turtle procedure from the lookuptable
  let colnr position colname lutt_collist
  let rownr position rowname lutt_rowlist

  ifelse (colnr != false and rownr != false)
  [

    let targetrow item rownr lutt_table
    report item colnr targetrow
  ]
  [
    report false
  ]
end

;report a whole column

to-report lutt_rp_column [colname]                   ; turtle procedure from the lookuptable
  let colnr position colname lutt_collist

  let templist (list 0)
  let targetrow 0

  ifelse (colnr != false)
  [
    let i 0
    repeat length lutt_rowlist
    [
       set targetrow item i lutt_table
       set templist lput item colnr targetrow templist
       set i i + 1
    ]

    set templist but-first templist
    report templist
  ]
  [
    report false
  ]
end

to-report lutt_rp_columnvalues [colname]                   ; turtle procedure from the lookuptable
  let colnr position colname lutt_collist

  let templist (list 0)
  let targetrow 0

  ifelse (colnr != false)
  [
    let i 0
    repeat length lutt_rowlist
    [
       set targetrow item i lutt_table
       set templist lput read-from-string item colnr targetrow templist
       set i i + 1
    ]

    set templist but-first templist
    report templist
  ]
  [
    report false
  ]
end


;;----------not part of the nls

to setup
  ca
  ;creates a turtle from breed t_lookuptable, reads the table from the .csv and stores the who number of this turtle in the global lookuptable nr
  set lookuptablenr luto_rp_setuplookuptable "testtable.csv"
end

There are 2 versions of this model.

Uploaded by When Description Download
Geerten Hengeveld over 9 years ago now with the nls completely in the primary nlogo file Download this version
Geerten Hengeveld over 9 years ago Initial upload Download this version

Attached files

File Type Description Last updated
lookuptablefunctionality.nls background The nls that implements the lookuptable breed and its procedures over 9 years ago, by Geerten Hengeveld Download

This model does not have any ancestors.

Children:

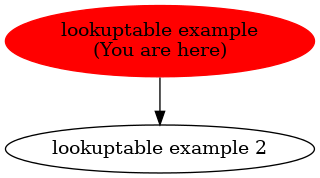

Graph of models related to 'lookuptable example'
