Bing_Social Network Simulator_v2

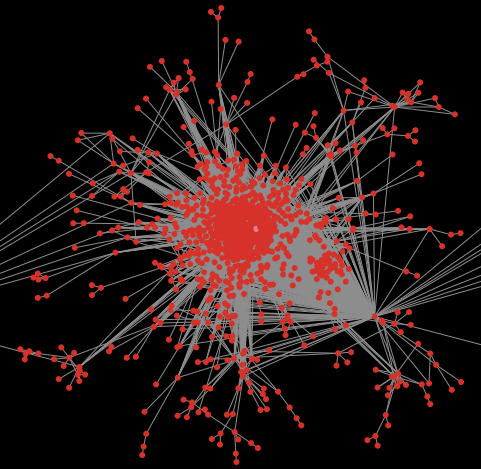

Bing_Social Network Simulator_v2 preview image

1 collaborator

Default-person Bing Zhang (Author)

Tags

(This model has yet to be categorized with any tags)
Model group MAM-2013 | Visible to everyone | Changeable by everyone
Model was written in NetLogo 5.0.4 • Viewed 689 times • Downloaded 43 times • Run 0 times
Download the 'Bing_Social Network Simulator_v2' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

turtles-own
[
  source
  belong-to   ;;news belong to whome
]


breed [news a-news]
breed [people node]

to setup
  clear-all
  create-people 1 [set color red]
  create-people 1 [set color red create-link-with turtle 0]
  while [count turtles < number-of-nodes]
  [
  setup-initial-network find-partner
  ]
  ask one-of turtles[set color pink]
  setup-news
  ask news [put-ontop]
  reset-ticks
end

to setup-nodes
  set-default-shape turtles "circle"
  create-people number-of-nodes
  [
    setxy (random-xcor * 0.95) (random-ycor * 0.95)
    set color green
    set size 1

  ]

  ask one-of turtles[set color pink]
  ;;create-news 1 [setxy random-xcor random-ycor set color yellow set shape "square"]
end

to setup-network
  let num-links (4 * number-of-nodes) / 2
  while [count links < num-links]
  [
    ask one-of people
    [
      let choice (min-one-of (other people with [not link-neighbor? myself]) [distance myself])
      if choice != nobody [create-link-with choice]
    ]

  ]
   ; make the network look a little prettier
  repeat 15
  [
    layout-spring turtles links 0.3 (world-width / (sqrt number-of-nodes)) 1
  ]
end
;;prefential attachment

to setup-initial-network [old-node]

  create-people 1
  [
    set color red
    if old-node != nobody
      [ create-link-with old-node
        ;; position the new node near its partner
        move-to old-node
        fd 8
      ]
  ]
end

to-report find-partner
  let total random-float sum [count link-neighbors] of turtles
  let partner nobody
  ask turtles
  [
    let nc count link-neighbors
    ;; if there's no winner yet...
    if partner = nobody
    [
      ifelse nc > total
        [ set partner self ]
        [ set total total - nc ]
    ]
  ]
  report partner
end
;;;;;;;;;;;;;;;;;;;;;;;;;

to setup-news
  create-news 1
  [
    set shape "car"
    set color yellow
    set size 1.5
    set source one-of turtles with [color = pink]
    ]
  let temp one-of turtles with [color = pink]
  ask news [move-to temp set belong-to temp]
end

to go

   ifelse ticks mod 3 = 1 and ticks > 3
  [

    ask news [die]
  ask turtles [set color red]
  ask one-of turtles [set color pink]
  setup-news
  ]

  [
  ask turtles with [color = pink]
  [
    while [count link-neighbors with [color = red] > 0]
    [
    let spread one-of link-neighbors with [color = red]
    let parent one-of turtles-here with [color = yellow]

    if spread != nobody [
      if random-float 100 < news-is-interesting [
        ask spread [set color pink]
        ask parent[hatch 1]
        ask parent [move-to spread set belong-to spread]
        ask spread [create-link-with [source] of parent]
        ]]
    ]
    ]
  ]


  tick
end

to go_once
  ifelse ticks mod 3 = 1 and ticks > 3

  [
    ask news [die]
  ask turtles [set color red]
  ask one-of turtles [set color pink]
  setup-news
  ]

  [
  ask turtles with [color = pink]
  [
    while [count link-neighbors with [color = red] > 0]
    [
    let spread one-of link-neighbors with [color = red]
    let parent one-of turtles-here with [color = yellow]

    if spread != nobody [
      if random-float 100 < news-is-interesting [
        ask spread [set color pink]
        ask parent[hatch 1]
        ask parent [move-to spread set belong-to spread]
        ask spread [create-link-with [source] of parent]
        ]]
    ]
    ]
  ]
  tick
end

to put-ontop
  hatch 1;;[create-links-with [links]of myself]
  die
end

to layout
  ;; the number 3 here is arbitrary; more repetitions slows down the
  ;; model, but too few gives poor layouts
  repeat 3 [
    ;; the more turtles we have to fit into the same amount of space,
    ;; the smaller the inputs to layout-spring we'll need to use
    let factor sqrt count turtles
    ;; numbers here are arbitrarily chosen for pleasing appearance
    layout-spring turtles links (1 / factor) (7 / factor) (1 / factor)
    display  ;; for smooth animation
  ]
  ;; don't bump the edges of the world
  let x-offset max [xcor] of turtles + min [xcor] of turtles
  let y-offset max [ycor] of turtles + min [ycor] of turtles
  ;; big jumps look funny, so only adjust a little each time
  set x-offset limit-magnitude x-offset 0.1
  set y-offset limit-magnitude y-offset 0.1
  ask turtles [ setxy (xcor - x-offset / 2) (ycor - y-offset / 2) ]
  ask news [move-to [belong-to] of self]
end

to-report limit-magnitude [number limit]
  if number > limit [ report limit ]
  if number < (- limit) [ report (- limit) ]
  report number
end

to resize-nodes
  ifelse all? turtles [size <= 1]
  [
    ;; a node is a circle with diameter determined by
    ;; the SIZE variable; using SQRT makes the circle's
    ;; area proportional to its degree
    ask turtles [ set size sqrt count link-neighbors ]
  ]
  [
    ask turtles [ set size 1 ]
  ]
end

There is only one version of this model, created almost 11 years ago by Bing Zhang.
