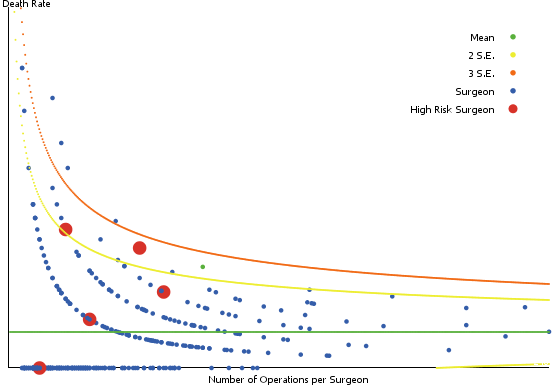

Surgical Outcome Data Simulator

;; VARIABLES SET AS SLIDERS IN DISPLAY
   ;; Number_Of_High_Risk_Surgeons
   ;; Level_Of_Base_Risk
   ;; Level_Of_Extra_Risk

;; GLOBAL BREEDS
breed [surgeons surgeon]     ;; A turtle species to represent surgeons
breed [plotpoints plotpoint] ;; A turtle species to represent plot points
breed [graphers grapher]     ;; A turtle species to represent graph axis points


;; GLOBAL VARIABLES
;; ================
globals[
   activity_distribution   ;; Variable to hold list of procedures by surgeon
   surgeons_hirisk         ;; Number of high risk surgeons
   surgeons_hirisk_scale   ;; Hi Risk Scale Level
   surgeons_baserisk       ;; Base risk of procedure
   total_patients          ;; Total patients in model
   total_deaths            ;; Total deaths in model
   mean_rate               ;; Mean rate of deaths according to model
   max_yrealm              ;; the maximum x value in the dataset
   max_xrealm              ;; the maximum y value in the dataset * 1.2
   xscale                  ;; scale factor to fit the above into a 30 point grid
   yscale                  ;; scale factor to fit the above into a 20 point grid
   plotpoints_scale        ;; holding variable
   plotpoints_increment    ;; holding variable
   surgeons_revealed
   scenario_active
]


;; 'TURTLE' VARIABLES
;; ==================
surgeons-own[
   surgeon_risk            ;; RISK OF SURGEON
   surgeon_activity        ;; NUMBER OF CASES SURGEON DOES
   surgeon_deaths          ;; NUMBER OF DEATHS SURGEON ESTIMATED
   surgeon_rate            ;; INFERRED RATE
   surgeon_rate_plot       ;; INFERRED RATE SCALED TO GRAPH - Y VALUE
   surgeon_activity_plot   ;; INFERRED ACTIVITY SCALED TO GRAPH - X VALUE
   surgeon_clicked         ;; USED FOR MOUSE INTERACTION
]

plotpoints-own[
   plotpoint_type          ;; TYPE OF PLOTPOINT
   plotpoint_count         ;; COUNT OF ACTIVITY AT PLOTPOINT
   plotpoint_se            ;; THE SE FOR THE PLOTPOINT
   plotpoint_lcl2          ;; LCL 2SEs FOR PLOTPOINT
   plotpoint_lcl3
   plotpoint_ucl2
   plotpoint_ucl3
]


;; MAIN PROCEDURE
;; ==============

to SIMULATE
IF scenario_active = 0 [setup-procedure]
set scenario_active 1
activate-mouse
end

to setup-procedure
clear-all
reset-ticks
set-default-shape plotpoints "dot"
set-default-shape surgeons "circle"
ask patches [set pcolor white]

;; BEGIN BY SETTING UP SOME OVERALL VARIABLES
set surgeons_hirisk Number_Of_High_Risk_Surgeons
set surgeons_hirisk_scale Level_Of_Extra_Risk
set surgeons_baserisk Level_Of_Base_Risk / 100

;; POPULATE THE ACTIVITY DISTRIBUTION USING VASCULAR DATA ACTIVITY RATES (TAKEN FROM VASCULAR DATASET AT http://www.vsqip.org.uk/surgeon-level-public-reporting/)
set activity_distribution [248 237 228 210 210 202 176 172 164 156 155 147 146 140 139 138 138 137 136 134 134 128 126 126 125 119 117 117 115 114 112 110 108 107 106 106 105 104 104 104 102 101 101 100 99 99 98 96 95 93 92 92 92 91 90 90 89 89 89 88 87 87 86 85 85 84 84 84 83 83 82 81 81 80 78 78 77 76 76 76 76 75 75 75 74 74 74 74 73 72 72 72 72 71 71 71 70 70 70 70 69 69 68 67 66 66 66 66 66 65 65 65 65 64 63 63 62 62 62 62 61 60 60 60 59 59 59 58 58 58 57 55 55 55 55 54 54 53 53 53 53 52 52 52 51 51 50 50 50 50 49 49 48 48 47 47 47 47 46 46 46 45 44 44 44 44 43 43 43 43 42 42 42 41 41 40 40 40 40 40 39 39 39 39 38 38 38 37 37 37 37 37 37 37 37 36 36 36 36 36 35 35 35 35 35 34 34 34 34 34 34 33 33 33 33 32 32 32 32 32 32 32 31 31 31 31 31 30 30 30 30 29 29 29 29 29 28 28 28 28 27 27 27 27 27 27 27 26 26 26 26 26 26 26 25 25 24 24 24 24 24 24 24 24 24 24 23 23 23 23 23 23 23 22 22 22 22 22 22 22 22 21 20 20 20 20 20 20 20 20 19 19 19 19 19 19 18 18 18 18 18 18 18 18 17 17 17 17 16 16 16 16 16 16 15 15 15 14 14 14 14 14 14 14 14 14 14 14 13 13 13 13 13 13 13 13 12 12 12 12 12 12 12 11 11 11 11 11 11 11 11 11 11 11 11 11 11 10 10 9 9 9 9 8 8 8 7 7 7 7 7 7 7 6 6 6 6]

;; CREATE SURGEONS ALL INITIALLY WITH LOW RISK
create-surgeons 377 [set surgeon_risk surgeons_baserisk
                     set color blue
                     set size 0.25
                     set heading 0]

;; ASK EACH SURGEON TO SELECT A NUMBER OF PATIENTS BY PICKING SEQUENTIALLY FROM THE ACTIVITY DISTRIBUTION
ask surgeons [set surgeon_activity item who activity_distribution]

;; ASK 'N' SURGEONS TO BECOME HI RISK
ask n-of surgeons_hirisk surgeons [set surgeon_risk surgeon_risk * surgeons_hirisk_scale]

;; ASK EACH SURGEON TO OPERATE ON EACH PATIENT IN THEIR CARE, WITH A CHANCE OF DEATH EACH TIME
ask surgeons[let temp_patients surgeon_activity                                                   ;; TEMP VARIABLE OF PATIENTS REMAINING
             set total_patients total_patients + surgeon_activity                                 ;; ADD THIS SURGEONS PATIENTS TO THE TOTAL
             let temp_deaths 0                                                                    ;; TEMP VARIABLE OF NUMBER OF DEATHS, INITIALLY 0
             while [temp_patients > 0]                                                            ;; LOOP AS LONG AS PATIENTS ARE LEFT TO TREAT BY...
                   [IF random-float 1 < surgeon_risk [set temp_deaths temp_deaths + 1]            ;; ...TREATING ONE OF THEM, RECORDING OUTCOME IF DEATH...
                    set temp_patients temp_patients - 1]                                          ;; ...THEN REDUCE NUMBER OF PTS TO BE TREATED BY 1, AND LOOP
             set surgeon_deaths temp_deaths                                                       ;; AFTER ALL PTS TREATED, RECORD TOTAL NO OF DEATHS
             set total_deaths total_deaths + temp_deaths]                                          ;; ADD THIS TOTAL TO THE TOTAL NUMBER OF DEATHS IN THE MODEL

;; ONCE ALL OPERATIONS DONE, ASK EACH SURGEON TO SET THEIR DEATH RATE, AND UPDATE GLOBAL RATE
ask surgeons[IFELSE surgeon_activity = 0 [set surgeon_rate 0]                                     ;; SET RATE AS 0 IF THEY OPERATED ON NO PATIENTS
                                         [set surgeon_rate surgeon_deaths / surgeon_activity]  ]  ;; SET RATE AS NUMBER OF DEATHS BY TOTAL ACTIVITY
set mean_rate total_deaths / total_patients                                                       ;; SET OVERALL MEAN RATE AS TOTALS

;; CALCULATE CONTROL LIMITS
set plotpoints_scale 1                                                                            ;; SET PLOTPOINT SCALE TO 0

create-plotpoints 500 [setxy 0 0 set plotpoint_type 1 set color green]                              ;; CREATE 50 PLOTPOINTS TO GENERATE CONTROL LIMITS FROM
ask surgeons with-max [surgeon_activity] [set max_xrealm surgeon_activity]                         ;; SET MAX OF XREALM AS TOP PATIENT ACTIVITY
ask surgeons with-max [surgeon_rate] [set max_yrealm (1.2 * surgeon_rate)]                         ;; SET MAX OF YREALM AS TOP SURGEON RATE + 20%
set plotpoints_increment max_xrealm / 500
set xscale max_xrealm / 30                                                                        ;; CREATE A SCALE FACTOR FOR X TO FIT ON PLOT
set yscale max_yrealm / 20                                                                        ;; CREATE A SCALE FACTOR FOR Y TO FIT ON PLOT

set plotpoints_scale 1                                                              ;; CREATE AN INCREMENT BASED ON 50ths of PLOT
ask plotpoints with [plotpoint_type = 1]                                                          ;; ASK THESE PLOTPOINTS ONE AT A TIME TO...

               [set plotpoint_count plotpoints_increment * plotpoints_scale                       ;; SET THEIR COUNT (NUMBER OF PROCEDURES)
                set plotpoint_se (sqrt ((mean_rate * (1 - mean_rate)) / plotpoint_count))         ;; WORK OUT THEIR STANDARD ERROR
                set plotpoint_lcl2 (mean_rate - (2 * plotpoint_se)) / yscale                                 ;; CALCULATE A LCL/UCL AT EACH LEVEL
                set plotpoint_lcl3 (mean_rate - (3 * plotpoint_se)) / yscale                                 ;;
                set plotpoint_ucl2 (mean_rate + (2 * plotpoint_se)) / yscale                                 ;;
                set plotpoint_ucl3 (mean_rate + (3 * plotpoint_se)) / yscale                                 ;;
                set plotpoints_scale plotpoints_scale + 1]                                         ;; MOVE SCALE VARIABLE ON ONE POINT FOR NEXT ITERATION
ask plotpoints with [plotpoint_type = 1][
                IF plotpoint_lcl2 < 0 [set plotpoint_lcl2 0]
                IF plotpoint_lcl3 < 0 [set plotpoint_lcl3 0]
                IF plotpoint_ucl2 > 20 [set plotpoint_ucl2 20]
                IF plotpoint_ucl3 > 20 [set plotpoint_ucl3 20]]

;; CREATE THE DISPLAY
create-graphers 1 [setxy 0 20 set color black pen-down facexy 0 19]                                          ;; DRAW AXIS LINES
ask graphers [forward 20
              facexy 1 0
              forward 30
              set color black set size 0.005]
create-graphers 1 [setxy 0 0 set color black set size 0.005 set label 0]                        ;; CREATE LABELS ON LINES
create-graphers 1 [setxy 0 20 set color black set size 0.005 set label precision 2 max_yrealm]   ;; AS ABOVE
create-graphers 1 [setxy 30 0 set color black set size 0.005 set label max_xrealm]               ;; AS ABOVE
create-graphers 1 [setxy 28 18.4 set color green set size 0.3 set shape "circle"]
create-graphers 1 [setxy 28 17.4 set color yellow set size 0.3 set shape "circle"]
create-graphers 1 [setxy 28 16.4 set color orange set size 0.3 set shape "circle"]
create-graphers 1 [setxy 28 15.4 set color blue set size 0.3 set shape "circle"]
create-graphers 1 [setxy 28 14.4 set color red set size 0.5 set shape "circle"]
create-graphers 1 [setxy 27 14 set color white set size 0.05 set shape "dot" set label "High Risk Surgeon" set label-color black]
create-graphers 1 [setxy 27 18 set color white set size 0.05 set shape "dot" set label "Mean" set label-color black]
create-graphers 1 [setxy 27 17 set color white set size 0.05 set shape "dot" set label "2 S.E." set label-color black]
create-graphers 1 [setxy 27 16 set color white set size 0.05 set shape "dot" set label "3 S.E." set label-color black]
create-graphers 1 [setxy 27 15 set color white set size 0.05 set shape "dot" set label "Surgeon" set label-color black]
create-graphers 1 [setxy 2.3 19.9 set color white set size 0.05 set shape "dot" set label "Death Rate" set label-color black]
create-graphers 1 [setxy 20 -1 set color white set size 0.05 set shape "dot" set label "Number of Operations per Surgeon" set label-color black]

ask surgeons
             [set surgeon_rate_plot surgeon_rate / yscale                                         ;; PLOT THE SURGEONS
              set surgeon_activity_plot surgeon_activity / xscale                                 ;;
              setxy surgeon_activity_plot surgeon_rate_plot]                                      ;;

ask plotpoints with [plotpoint_type = 1]                                                          ;; PLOT THE LCL AND UCL
             [hatch-plotpoints 1 [setxy (plotpoint_count / xscale) (plotpoint_lcl2) set color yellow set plotpoint_type 2]
              hatch-plotpoints 1 [setxy (plotpoint_count / xscale) (plotpoint_lcl3) set color orange set plotpoint_type 3]
              hatch-plotpoints 1 [setxy (plotpoint_count / xscale) (plotpoint_ucl2) set color yellow set plotpoint_type 4]
              hatch-plotpoints 1 [setxy (plotpoint_count / xscale) (plotpoint_ucl3) set color orange set plotpoint_type 5]
              setxy (plotpoint_count / xscale) (mean_rate / yscale)]
              ask plotpoints [set size 0.25]
              ask plotpoints with [ycor = 0][die]
              ask plotpoints with [ycor = 20][die]
If mouse-inside? = true [activate-mouse]
end


;; BUTTON SUBROUTINES
;; ==================

to activate-mouse
display
  IF surgeons_revealed = 0 [ask surgeons with [color = green] [set size 0.25]]
  if mouse-down? [let candidate min-one-of surgeons [distancexy mouse-xcor mouse-ycor]
                  if [distancexy mouse-xcor mouse-ycor] of candidate < 1 [watch candidate
                                                                          while [mouse-down?]
                                                                                [display
                                                                                 ask subject [ set surgeon_clicked 1
                                                                                               IF surgeon_risk = surgeons_baserisk [set color green set size 0.75]
                                                                                               IF surgeon_risk > surgeons_baserisk [set color red set size 0.75]]]
  ask surgeons with [surgeon_clicked > 0 AND color = green][set size 0.25 set surgeon_clicked 0]
  reset-perspective
  ]]
end

;; TOGGLE FOR HIGH RISK SURGEONS

to reveal-highrisk
  set surgeons_revealed 1
ask surgeons with [surgeon_risk > surgeons_baserisk][set color red set size 0.75]
end

;; SHOW LABELS ON SURGEONS

to show-deaths
ask surgeons [set label surgeon_deaths set label-color black]
end
