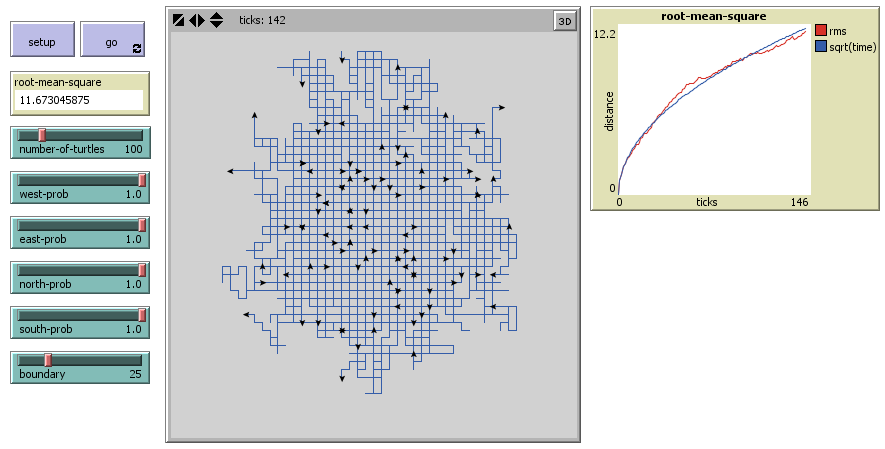

Random Walk Periodic Boundary Condition 2D Lattice

1 collaborator

Do Trong Thanh (Author)

WHAT IS IT?

(a general understanding of what the model is trying to show or explain)

HOW IT WORKS

(what rules the agents use to create the overall behavior of the model)

HOW TO USE IT

(how to use the model, including a description of each of the items in the Interface tab)

THINGS TO NOTICE

(suggested things for the user to notice while running the model)

THINGS TO TRY

(suggested things for the user to try to do (move sliders, switches, etc.) with the model)

EXTENDING THE MODEL

(suggested things to add or change in the Code tab to make the model more complicated, detailed, accurate, etc.)

NETLOGO FEATURES

(interesting or unusual features of NetLogo that the model uses, particularly in the Code tab; or where workarounds were needed for missing features)

RELATED MODELS

(models in the NetLogo Models Library and elsewhere which are of related interest)

CREDITS AND REFERENCES

(a reference to the model's URL on the web if it has one, as well as any other necessary credits, citations, and links)

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; variable declarations ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;

globals
[
  root-mean-square
  sum-distance
  sum-prob
  west-prob-scale
  east-prob-scale
  north-prob-scale
  south-prob-scale
  prob
]

;;;;;;;;;;;;;;;;;;;;;;
;; setup procedures ;;
;;;;;;;;;;;;;;;;;;;;;;

;; set up the patches and creates turtles

to setup
  clear-all
  set-patch-size (200 / boundary)
  resize-world (- boundary) boundary (- boundary) boundary
  ask patches [ set pcolor gray + 3 ]
  init-constant
  setup-turtles
  reset-ticks
end

to setup-turtles
  crt number-of-particles
  [
    set color black
    pen-down
  ]
end

to init-constant
  set sum-prob (west-prob + east-prob + north-prob + south-prob)
  set west-prob-scale (west-prob / sum-prob)
  set east-prob-scale (east-prob / sum-prob)
  set north-prob-scale (north-prob / sum-prob)
  set south-prob-scale (south-prob / sum-prob)
end

;;;;;;;;;;;;;;;;;;;;;;;;
;; runtime procedures ;;
;;;;;;;;;;;;;;;;;;;;;;;;

to go
  ;; have the turtles randomly pick north, south, west, east and
  ;; move in that direction
  ask turtles
  [
    set color blue
    set prob (random-float 1)
    if (prob < west-prob-scale)
    [
      ;; go west
      set heading 270
      forward 1
    ]
    if (prob > west-prob-scale) and (prob < west-prob-scale + east-prob-scale)
    [
      ;; go east
      set heading 90
      forward 1
    ]
    if (prob > west-prob-scale + east-prob-scale) and (prob < west-prob-scale + east-prob-scale + north-prob-scale)
    [
      ;; go north
      set heading 0
      forward 1
    ]
    if (prob > west-prob-scale + east-prob-scale + north-prob-scale)
    [
      ;; go south
      set heading 180
      forward 1
    ]
    set color black
  ]
  ;; calculate root mean square of distance of all particles
  set sum-distance 0
  foreach sort turtles
  [
    ask ? [ set sum-distance (sum-distance + (xcor * xcor + ycor * ycor)) ]
  ]
  set root-mean-square (sqrt (sum-distance / (count turtles)))
  tick
end
