Electrical network

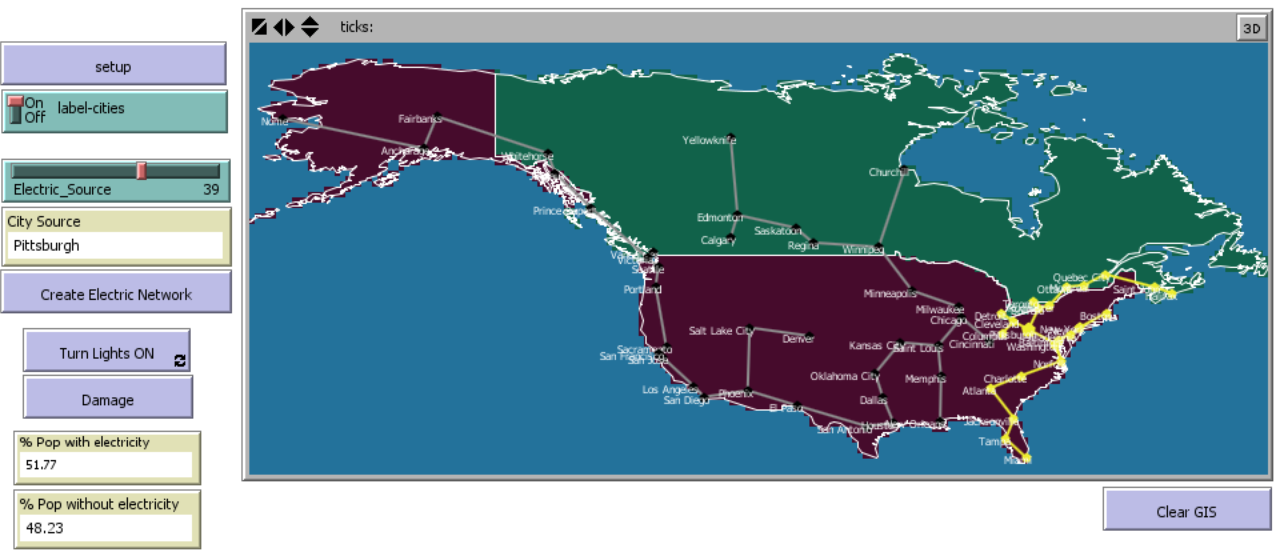

Electrical network preview image

1 collaborator

Gil Alvaro Gil (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by everyone
Model was written in NetLogo 5.0 • Viewed 546 times • Downloaded 34 times • Run 0 times
Download the 'Electrical network' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

extensions [ gis ]
globals [ cities-dataset countries-dataset arr_e]
breed [cities city]
patches-own [population country-name]

cities-own [key name pop elec?]
links-own [energ?]

to setup
  ca
  set arr_e []
  ; Load all of our datasets
  set cities-dataset gis:load-dataset "USCAN/cities.shp"
  set countries-dataset gis:load-dataset "USCAN/countries.shp"
  gis:set-world-envelope (gis:envelope-union-of (gis:envelope-of cities-dataset)
                                                (gis:envelope-of countries-dataset))
  display-countries
  create-towns
end

to create-towns
  foreach gis:feature-list-of cities-dataset [
    let location gis:location-of (first (first (gis:vertex-lists-of ?)))
    if not empty? location
      [ create-cities 1
        [ set xcor item 0 location
          set ycor item 1 location
          set size 2
          set shape "pentagon"
          set color black
          if label-cities [set label gis:property-value ? "NAME"]
          set key gis:property-value ? "KEY"
          set name gis:property-value ? "NAME"
          set pop gis:property-value ? "POPULATION"
          ] ]
    ]
end

to create-electric-network
  ask turtles [
    set size 2
    set color black
    create-links-with other turtles]
  set arr_e []
  ask links [set hidden? true]
  let l []
  foreach [self] of links [
    set l lput ([link-length] of ?) l]
  set l sort l
  ;first pair
  ask first([self] of links with [link-length = first(l)])
  [set color 25
    set hidden? false
    set thickness 0.3
    let e1 [who] of end1
    let e2 [who] of end2
    let tempar []
    set tempar lput e1 tempar
    set tempar lput e2 tempar
    set arr_e lput tempar arr_e]
  set l remove-item 0 l
  while [length(l) > 0] [
   let li first([self] of links with [link-length = first(l)])
   let e1 [who] of [end1] of li
   let e2 [who] of [end2] of li
   let i 0
   let flag 0
   let p1 -1
   let p2 -1
   while [i < length(arr_e)] [
     if (member? e1 item i arr_e)
      [set p1 i]
      if (member? e2 item i arr_e)
      [set p2 i]
      set i i + 1]
   let case 0
   while [flag = 0] [
     let tempar []
     if p1 != -1 and p1 = p2 [ ;Case1: Both belong to the same array
       set case 1
       set flag 2]
     if p1 = -1 and p1 = p2 [  ;Case2: Nobody belongs
      set tempar lput e1 tempar
      set tempar lput e2 tempar
      set arr_e lput tempar arr_e
      set case 2
      set flag 1]
     if p1 != -1 and p2 = -1 [ ;Case 3: Only e1 exists in one group
       set tempar item p1 arr_e
       set arr_e remove tempar arr_e
       set tempar lput e2 tempar
       set arr_e lput tempar arr_e
       set case 3
       set flag 1]
     if p1 = -1 and p2 != -1 [ ;Case 4: Only e2 exists in one group
       set tempar item p2 arr_e
       set arr_e remove tempar arr_e
       set tempar lput e1 tempar
       set arr_e lput tempar arr_e
       set case 4
       set flag 1]
     if p1 != -1 and p2 != -1 and flag = 0 [ ;Case 5: Both already belong to different groups
       let g1 item p1 arr_e
       let g2 item p2 arr_e
       set tempar sentence g1 g2
       set arr_e remove g1 arr_e
       set arr_e remove g2 arr_e
       set arr_e lput tempar arr_e
       set case 5
       set flag 1]
   ]
   if flag = 1
   [ask li [
     set color 25
     set hidden? false
    set thickness 0.6 ]
   ]
   set l remove-item 0 l
   ]
  set arr_e remove-duplicates arr_e
  ask links with [hidden? = true] [die]
end

; Drawing polygon data from a shapefile, and optionally loading some
; of the data into turtles, if label-countries is true

to display-countries
  gis:set-drawing-color white
  gis:draw countries-dataset 1
  gis:apply-coverage countries-dataset "CNTRY_NAME" country-name
  ask patches [
    ifelse country-name = "United States" [set pcolor 122]
    [ifelse country-name = "Canada" [set pcolor 73]
    [set pcolor 94]]
    ]
end

to turn-lights-on
  ask turtles with [key = Electric_Source] [set elec? True
    set color 24
    set size 3
    ask my-links [set energ? True]]
  elec-city
  elec-links
end

to elec-city
  ask cities [foreach [self] of my-links [if [color] of ? = Yellow [set elec? True]]
    if elec? = True [set color Yellow
      ask my-links [set energ? True]]]
end

to elec-links
  ask links [if energ? = True [set color Yellow]]
end

to damage
  let l one-of links
  let c1 [end1] of l
  let c2 [end2] of l
  watch l
  ask l [die]
  user-message(word "There's a problem in the electric connection between cities " [Name] of c1
    " and " [Name] of c2)
  ask cities [set elec? False set color black]
  ask links [set energ? False set color grey]
  reset-perspective
  turn-lights-on
end

There is only one version of this model, created almost 10 years ago by Alvaro Gil.

Attached files

File Type Description Last updated
Electrical network.png preview Preview for 'Electrical network' almost 10 years ago, by Alvaro Gil Download
Mod5-6-GIS.zip extension Model, extensions and data almost 10 years ago, by Alvaro Gil Download
