Segregation

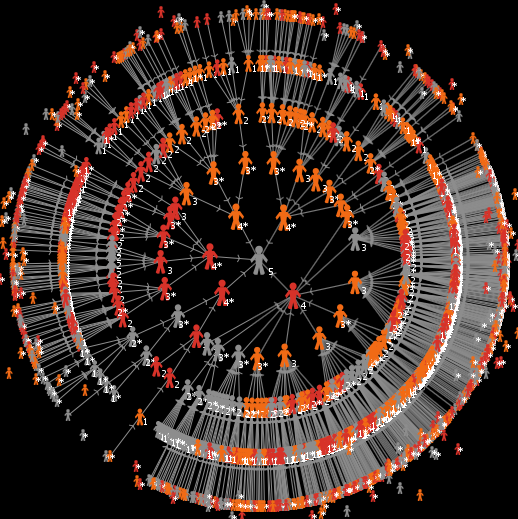

Segregation preview image

1 collaborator

Default-person Thomas Rieth (Author)

Tags

networks

Tagged by Thomas Rieth about 8 years ago

Visible to everyone | Changeable by the author
Model was written in NetLogo 6.0 • Viewed 619 times • Downloaded 31 times • Run 0 times
Download the 'Segregation' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

breed [ soldiers soldier ]
directed-link-breed [ commands command ]

soldiers-own [
  level ; level = 0: leaf, level = number-of-levels : root
  ethnic
  is-corrupt?
  is-happy?
  seperation-energy ; based on ethnic differences
  sum-of-subordinates ; all levels down
  pay  ; normed to full pay of one unit per tick
]

globals [
  network-leavings
  network-changes
  ethnic-segregation-energy
  provided-pay-transfer
]

to setup-globals
  ;;ask patches [ set pcolor white ]
  set network-leavings 0
  set network-changes 0
  set ethnic-segregation-energy 0
  set provided-pay-transfer 0
end

to startup
  if number-of-levels < 6 and number-of-leaf-soldiers < 2501 [ setup ]
end

to setup
  clear-all
  setup-globals
  setup-soldiers
  reset-ticks
end

to go
  go-soldiers
  tick
  if is-ready-to-stop? [ stop ]
end

to-report is-ready-to-stop?
  report ( not any? soldiers with [ not is-happy?] )
end

to setup-soldiers
  let local-level 0
  let local-number 1
  while [ local-level < number-of-levels] [
    create-soldiers local-number [
      set level number-of-levels - local-level
      if local-level > 0
      [
        create-command-to one-of soldiers with [ is-next-higher-level? ]
      ]
    ]
  set local-number multiplicity-of-levels * local-number
  set local-level local-level + 1
  ]
  create-soldiers number-of-leaf-soldiers [
    set level 0
    create-command-to one-of soldiers with [ is-next-higher-level? ]
  ]
  ask soldiers [ setup-soldier ]
  update-network
end

to setup-soldier
  set shape "person"
  setxy random-xcor random-ycor
  set ethnic random number-of-ethnics
  set is-corrupt? random-float 1.0 < fraction-of-corruption
  set is-happy? true
  update-soldier
end

to update-soldier
  set size 1.5 * sqrt (level + 1)
  set color ethnic * 10 + 5
  ifelse is-officer?
  [ ifelse is-corrupt? [ set label (word level "*") ] [ set label (word level) ] ]
  [ if is-corrupt? [ set label "*" ]  ]
end

to-report is-officer?  report level > 0 end

to-report is-head-officer? report level >= (number-of-levels - 1) end

to-report is-leaf? report level = 0 end

to-report is-root? report level = number-of-levels end

to-report is-in-structure? report any? my-out-commands end

to-report is-free? report not any? my-out-commands end

to-report is-next-higher-level? report level = [level] of myself + 1 end

to-report is-different-ethnic-in-command? report [ethnic] of end1 != [ethnic] of end2 end

to-report is-boss-corrupt? report [is-corrupt?] of end2 end

to update-network
  ask soldiers [
    set sum-of-subordinates 0
  ]
  ask soldiers with [ is-root? ] [
    walk-soldier-network
  ]
  update-seperation-energy
  if optimize-layout [ layout-soldiers-network ]
end

to update-seperation-energy
  ask soldiers [
    let local-energy 0
    ask my-out-commands [
      ifelse is-different-ethnic-in-command?
      [ set local-energy local-energy + 1 ]
      [ set local-energy local-energy - 1 ]
    ]
    ask my-in-commands [
      ifelse is-different-ethnic-in-command?
      [ set local-energy local-energy + 1 ]
      [ set local-energy local-energy - 1 ]
    ]
    set seperation-energy local-energy
  ]
  set ethnic-segregation-energy sum [seperation-energy] of soldiers
end

to walk-soldier-network
  let local-subordinates 0
  ask my-in-commands [
    ask end1 [ walk-soldier-network ]
    set local-subordinates local-subordinates + 1 + [sum-of-subordinates] of end1
  ]
  set sum-of-subordinates local-subordinates
end

to go-soldiers
  ask soldiers with [ is-root? ] [
    set provided-pay-transfer (sum-of-subordinates + 1) * fraction-total-pay
    transfer-pay-soldier-network provided-pay-transfer
  ]
  set network-leavings 0
  set network-changes 0
  ask soldiers [
    ifelse is-free?
    [ if not is-root? [ move-free-soldier ] ]
    [
      ifelse is-leaf? and not is-happy?
      [ leave-the-network-soldier ]
      [ if not is-head-officer? and not is-happy? [ change-in-network-soldier ] ]
    ]
  ]
  update-network
end

to move-free-soldier
  set heading random 360
  if can-move? 1 [ forward 1 ]
  if joining-probability > random-float 1.0 [ create-command-to one-of soldiers with [ is-next-higher-level? ] ]
end

to leave-the-network-soldier
  set network-leavings network-leavings + 1
  ask my-out-commands [ die ]
end

to change-in-network-soldier
  set network-changes network-changes + 1
  ask my-out-commands [die ]
  let new-command-soldier one-of soldiers with [ is-next-higher-level? ]
  if is-soldier? new-command-soldier  [ create-command-to new-command-soldier ]
end

to layout-soldiers-network
  ask soldiers with [ is-root? ] [ layout-radial soldiers commands self ]
end

to transfer-pay-soldier-network [ pay-transfer ]
  set pay pay - 1
  if is-corrupt? [ set pay pay - corruption-costs ]
  ifelse is-leaf?
  [ set pay pay + pay-transfer ]
  [
    ifelse is-corrupt?
    [ distribute-pay-corrupted pay-transfer ]
    [ distribute-pay-honestly pay-transfer ]
  ]
  set is-happy? not (pay < 0)
  if pay < 0 [ set pay 0 ]
end

to distribute-pay-corrupted [pay-transfer]
  set pay pay + corruption-costs
  let local-pay-sum pay-transfer - corruption-costs
  ask my-in-commands [
    if not is-different-ethnic-in-command? [
      ask end1 [
        if is-corrupt? [
          let local-pay (sum-of-subordinates + 1) * (1 + corruption-costs)
          if local-pay > local-pay-sum [ set local-pay local-pay-sum ]
          set local-pay-sum local-pay-sum - local-pay
          transfer-pay-soldier-network local-pay
        ]
      ]
    ]
  ]
  ask my-in-commands [
    if not is-different-ethnic-in-command? [
      ask end1 [
        if not is-corrupt? [
          let local-pay (sum-of-subordinates + 1)
          if local-pay > local-pay-sum [ set local-pay local-pay-sum ]
          set local-pay-sum local-pay-sum - local-pay
          transfer-pay-soldier-network local-pay
        ]
      ]
    ]
  ]
  ask my-in-commands [
    if is-different-ethnic-in-command? [
      ask end1 [
        let local-pay (sum-of-subordinates + 1) * (1 - corruption-costs)
        if local-pay > local-pay-sum [ set local-pay local-pay-sum ]
        set local-pay-sum local-pay-sum - local-pay
        transfer-pay-soldier-network local-pay
      ]
    ]
  ]
  if local-pay-sum > 0 [ set pay pay + local-pay-sum ]
end

to distribute-pay-honestly [pay-transfer]
  set pay pay + pay-transfer
  let local-payings 0
  let local-factor (pay-transfer / (sum-of-subordinates + 1))
  ask my-in-commands [
    ask end1 [
      let local-pay precision ((sum-of-subordinates + 1) * local-factor) 8
      set local-payings local-payings + local-pay
      transfer-pay-soldier-network local-pay
    ]
  ]
  set pay pay - local-payings
end

to-report logarithmic-pays
  let local-list map ln filter [ [?1] -> ?1 > 0 ] ([pay] of soldiers)
  if empty? local-list [ set local-list (list -1 )]
  report local-list
end

to-report satisfaction
  report 100 * count soldiers with [is-happy?] / count soldiers
end

;;; ============ mouse procedures ======================================

to change-soldier-ethnic
  if mouse-inside? and mouse-down? [
    ask patch mouse-xcor mouse-ycor [
      ask soldiers in-radius 2 [
        ask min-one-of soldiers [distancexy mouse-xcor mouse-ycor] [
          show ethnic
          set ethnic (ethnic + 1) mod number-of-ethnics
          update-soldier
        ]
      ]
    ]
    display
    wait 1
  ]
end

to change-soldier-corruption
  if mouse-inside? and mouse-down? [
    ask patch mouse-xcor mouse-ycor [
      ask soldiers in-radius 2 [
        ask min-one-of soldiers [distancexy mouse-xcor mouse-ycor] [
          set is-corrupt? not is-corrupt?
          update-soldier
        ]
      ]
    ]
    display
    wait 1
  ]
end
