Tsunami evacuation
1 collaborator
Adam Slucki (Author)
Tags
behavioral decision making
Tagged by Adam Slucki about 11 years ago
evacuation
Tagged by Adam Slucki about 11 years ago
Model was written in NetLogo 5.0.5
•
Viewed 1495 times
•
Downloaded 160 times
•
Run 0 times
Download this modelDo you have questions or comments about this model? Ask them here! (You'll first need to log in.)
WHAT IS IT?
Model allows to compare efficiency of tsunami evacuation considering different types of community members behavior - cooperative and selfish.
HOW IT WORKS
Depending on behavior that is set for the community in given experiment agents my try to help each other, share information about locations of avalaible evacuation points. However, every form of cooperation in this model cost agent a time. Therefore well informed individuals should evacuate faster if they do not cooperate with others. Thanks to this model we can check how different behavior affects evacuation of the whole community.
HOW TO USE IT
(how to use the model, including a description of each of the items in the Interface tab)
THINGS TO NOTICE
(suggested things for the user to notice while running the model)
THINGS TO TRY
(suggested things for the user to try to do (move sliders, switches, etc.) with the model)
EXTENDING THE MODEL
(suggested things to add or change in the Code tab to make the model more complicated, detailed, accurate, etc.)
NETLOGO FEATURES
(interesting or unusual features of NetLogo that the model uses, particularly in the Code tab; or where workarounds were needed for missing features)
RELATED MODELS
(models in the NetLogo Models Library and elsewhere which are of related interest)
CREDITS AND REFERENCES
(a reference to the model's URL on the web if it has one, as well as any other necessary credits, citations, and links)
Comments and Questions
Please start the discussion about this model!
(You'll first need to log in.)
Click to Run Model
turtles-own [group speed cooperation initSpeed flight EP_knowledge chosenEP direction rescue_attempt initXcor initYcor newInformation my_EP]
patches-own [EvacuationPoint]
globals [saved cooperativeCitizen safeSpot time10 time30 time50 time80 time95 time_final survivors tempXcor tempYcor
meanXcor10 meanYcor10 meanXcor30 meanYcor30 meanXcor50 meanYcor50 meanXcor80 meanYcor80 meanXcor95 meanYcor95 meanXcor_final meanYcor_final
stdXcor10 stdYcor10 stdXcor30 stdYcor30 stdXcor50 stdYcor50 stdXcor80 stdYcor80 stdXcor95 stdYcor95 stdXcor_final stdYcor_final
coo10 coo30 coo50 coo80 coo95 coo_final]
;;Environment setup
to mapa
ca
import-pcolors "map.png"
crt citizens [set color black
setxy random-xcor random-ycor
set group random group_count
set speed (random-normal 0.14 0.015) * 5
set initSpeed speed
set EP_knowledge random-poisson av_EP_knowledge
set my_EP patch 100 -100
set newInformation 0
set direction heading
]
ask turtles [
move-to one-of patches with [pcolor = 67.4 and not any? other turtles-here]
]
ask n-of (count turtles * cooperative_citizens / 100) turtles [set cooperation true]
let safePlace (list (patch -80 38) (patch -63 33) (patch -62 62)
(patch -30 77) (patch -7 86) (patch 5 52)
(patch 17 45) (patch 30 51) (patch 60 57) (patch 78 20))
foreach safePlace [ask ?[set pcolor white
set EvacuationPoint 1]]
set safeSpot patches with [EvacuationPoint = 1]
;;main street, business center where should be more people than in other places
ask n-of (count turtles * 0.4) turtles [
move-to one-of patches with [pcolor = 67.4 and distance patch -18 5 < 35 and not any? other turtles-here]
]
ask turtles
[set initXcor xcor
set initYcor ycor
]
reset-ticks
end
;;Main loop
to go
ask turtles [
look_for_a_safe_spot
form_a_group
run_away
rescue
go_arround
move
stop_here
die_here
]
ifelse saved >= citizens * 0.1 and time10 = 0
[set time10 ticks * 5
if length tempXcor >= 2
[set meanXcor10 mean tempXcor
set meanYcor10 mean tempYcor
set stdXcor10 standard-deviation tempXcor
set stdYcor10 standard-deviation tempYcor]
set coo10 cooperativeCitizen / saved * 100
set tempXcor (list)
set tempYcor (list)
]
[ifelse saved >= citizens * 0.3 and time30 = 0
[set time30 ticks * 5
if length tempXcor >= 2
[set meanXcor30 mean tempXcor
set meanYcor30 mean tempYcor
set stdXcor30 standard-deviation tempXcor
set stdYcor30 standard-deviation tempYcor]
set coo30 cooperativeCitizen / saved * 100
set tempXcor (list)
set tempYcor (list)]
[ifelse saved >= citizens * 0.5 and time50 = 0
[set time50 ticks * 5
if length tempXcor >= 2
[set meanXcor50 mean tempXcor
set meanYcor50 mean tempYcor
set stdXcor50 standard-deviation tempXcor
set stdYcor50 standard-deviation tempYcor]
set coo50 cooperativeCitizen / saved * 100
set tempXcor (list)
set tempYcor (list)]
[ifelse saved >= citizens * 0.8 and time80 = 0
[set time80 ticks * 5
if length tempXcor >= 2
[set meanXcor80 mean tempXcor
set meanYcor80 mean tempYcor
set stdXcor80 standard-deviation tempXcor
set stdYcor80 standard-deviation tempYcor]
set coo80 cooperativeCitizen / saved * 100
set tempXcor (list)
set tempYcor (list)]
[ifelse saved >= citizens * 0.95 and time95 = 0
[set time95 ticks * 5
if length tempXcor >= 2
[set meanXcor95 mean tempXcor
set meanYcor95 mean tempYcor
set stdXcor95 standard-deviation tempXcor
set stdYcor95 standard-deviation tempYcor]
set coo95 cooperativeCitizen / saved * 100
set tempXcor (list)
set tempYcor (list)]
[if count turtles = 0
[set time_final ticks * 5
if length tempXcor >= 2
[set meanXcor_final mean tempXcor
set meanYcor_final mean tempYcor
set stdXcor_final standard-deviation tempXcor
set stdYcor_final standard-deviation tempYcor]
set coo_final cooperativeCitizen / saved * 100
set survivors saved / citizens * 100
stop]
]
]
]
]
]
tsunami
tick
end
;; Agents look fot the closest one of the evacuation points that they know
to look_for_a_safe_spot
set heading direction
;let my_EP one-of patches in-cone 400 1 with [EvacuationPoint = 1]
let my_safeSpot min-one-of n-of EP_knowledge safeSpot [distance myself]
let other_one one-of other turtles in-cone (radius / 10) 360
if (my_safeSpot != nobody and flight = 0 and chosenEP = 0)
or ( my_safeSpot != nobody and newInformation = 1 and distance my_safeSpot < distance my_EP)
[face my_safeSpot
set chosenEP 1
set my_EP my_safeSpot
set newInformation 0
set direction heading]
if EP_knowledge = 0 and other_one != nobody and not any? other turtles-here
[face other_one
set direction [heading] of other_one]
end
;; Agents may try to form groups. In this case they obtain knowledge about EP locations from the best
;; informed gropu member
to form_a_group
if (cooperation = true) and (count other turtles in-cone 1 360) < min_group_members and [pcolor] of patch-here > 64
[let groupCenter max-one-of other turtles in-cone (radius / 10) 120 [count other turtles in-cone 1 360]
let my_knowledge EP_knowledge
if groupCenter != nobody and [cooperation] of groupCenter = true
[face groupCenter
ask groupCenter [set color blue
set speed mean [speed] of turtles in-cone 1 360
let max_knowledge max-one-of turtles in-cone 1 360 [EP_knowledge]
if my_knowledge < [EP_knowledge] of max_knowledge
[set EP_knowledge [EP_knowledge] of max_knowledge
set newInformation 1]
]
]
]
end
to run_away
let dryPatch one-of patches in-cone 1 360 with [pcolor < 75]
ifelse one-of patches in-cone 1 360 != nobody and [pcolor] of one-of patches in-cone 3 120 = 95.1 and dryPatch != nobody
[ face dryPatch
set flight 1
set speed speed + 0.2
]
[set flight 0]
end
;; Agents may try to rescue other ones that are related with them (relation is determined by group number difference)
to rescue
let my_direction direction
lt 180
let my_group group
let my_knowledge EP_knowledge
let my_speed speed
let friend one-of turtles in-cone 1.5 180 with [abs(group - my_group) < max_group_diff and (distance myself > 0.6)]
ifelse friend != nobody and [rescue_attempt] of friend = 0
[face friend
set color pink
ifelse [EP_knowledge] of friend > my_knowledge
[set EP_knowledge [EP_knowledge] of friend
set newInformation 1]
[ask friend [set EP_knowledge my_knowledge]
set rescue_attempt 1
set direction my_direction
set newInformation 1
]
ifelse [speed] of friend > my_speed
[set speed [speed] of friend]
[ask friend [set speed my_speed]]
]
[rt 180
set color black]
end
;; Agents turn around when they reach inacessible terrain
to go_arround
if (patch-ahead 2 != nobody and [pcolor] of patch-ahead 2 = 74.4) or patch-ahead 2 = nobody
[lt 180
set direction heading]
end
to move
fd speed
end
to stop_here
if [pcolor] of patch-here < 27
[set saved saved + 1
if cooperation = true
[set cooperativeCitizen cooperativeCitizen + 1]
ifelse not is-list? tempXcor or empty? tempXcor
[set tempXcor (list initXcor)
set tempYcor (list initYcor)]
[set tempXcor lput initXcor tempXcor
set tempYcor lput initYcor tempYcor]
die]
end
to die_here
if [pcolor] of patch-here = 95.1
[die]
end
to tsunami
if ticks > 180
[ask patches with [pcolor = 95.1]
[ask patches in-radius 3.5 with [pcolor > 64] [set pcolor 95.1] ]
]
if (count patches with [pcolor > 64 and pcolor < 70]) = 0 and random-float 0.9 < 0.3
[ask patches with [pcolor = 95.1]
[ask neighbors with [pcolor > 40] [set pcolor 95.1] ]
]
end
There are 3 versions of this model.
Attached files
| File | Type | Description | Last updated | |
|---|---|---|---|---|

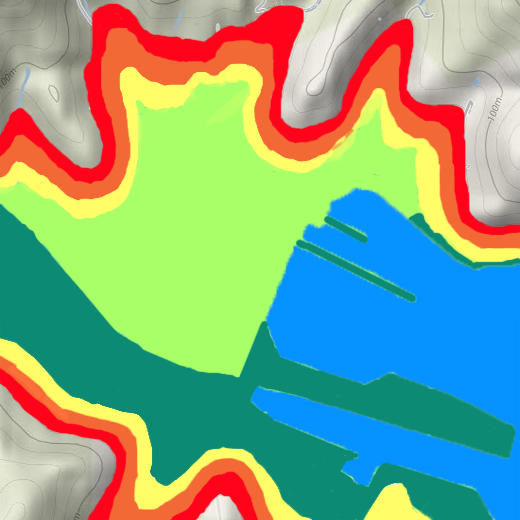

| map.png | png | model world | about 11 years ago, by Adam Slucki | Download |
| Tsunami evacuation.png | preview | Preview for 'Tsunami evacuation' | about 11 years ago, by Adam Slucki | Download |
