Amphiphile-oil-water system

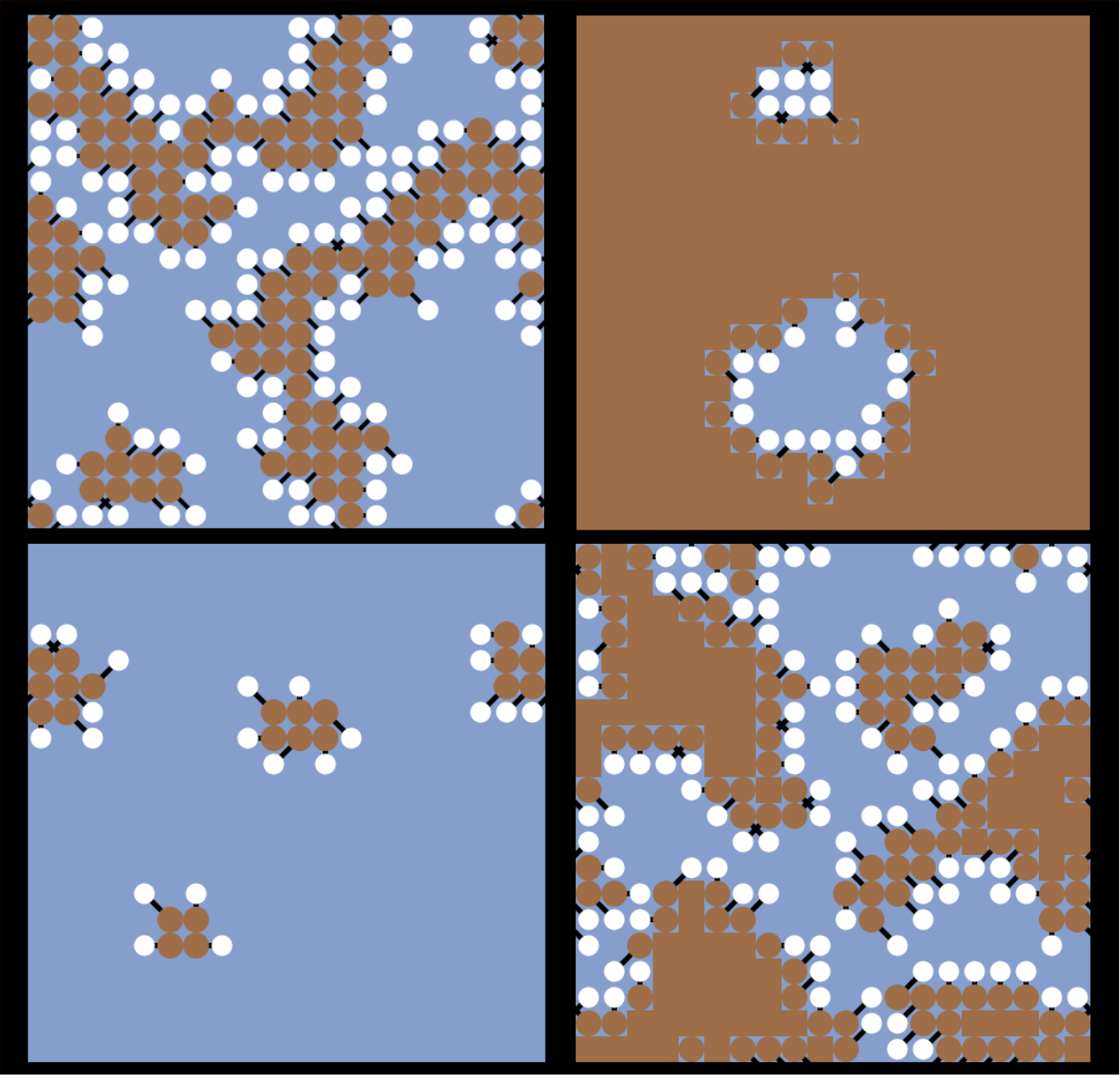

Amphiphile-oil-water system preview image

1 collaborator

Logo Danis Kiziridis (Author)

Tags

biology

Tagged by Danis Kiziridis almost 10 years ago

chemistry and physics

Tagged by Danis Kiziridis almost 10 years ago

Visible to everyone | Changeable by the author
Model was written in NetLogo 5.0.5 • Viewed 730 times • Downloaded 34 times • Run 0 times
Download the 'Amphiphile-oil-water system' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

breed [amphicules amphicule]  ; amphicule is here named a molecule/unit member of an amphiphilic chain

; "kind" specifies if the amphicule is either a lipophile (-1) or a hydrophile (+1).
; "leader" and "follower" gives the amphicule that precedes and follows in the chain.
; (arbitrarily, I assume the beginning of an amphiphile to be at its hydrophile end)
amphicules-own [kind leader follower]

; the lipid molecules will be brown patches (with -1 as state, like the lipophiles)
; the water molecules are the blue patches (of +1 kind, like the hydrophiles).
; thus, the patch on where an amphicule sits must be of the same kind as itself
patches-own [pkind]

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to setup
  clear-all

  ask patches
  [
    set pcolor blue + 2
    set pkind 1
  ]

  set-default-shape amphicules "circle"

  let lipids-number (max-pxcor + 1) * (max-pycor + 1) * lipids-fract

  ask patch 0 0
  [
    sprout-amphicules (lipophiles + hydrophiles) * amphiphiles
  ]

  ; the list of the patches which initially will host all amphicules, one on each patch
  if (lipophiles + hydrophiles) * amphiphiles > count patches [user-message (word "Amphiphiles are more than can fit in the world!")]
  let patch-list sublist (sort patches) 0 ((lipophiles + hydrophiles) * amphiphiles)

  ; initialization of the amphicules, mainly
  let i 0  ; for each of the amphiphiles
  while [i < amphiphiles]
  [
    ; for each of the amphicules in each chain
    let j 0
    while [j < lipophiles + hydrophiles]
    [
      ask amphicule (j + (lipophiles + hydrophiles) * i)
      [
        ;the first, a hydrophile (it is assumed that the minimum number of hydrophiles is 1)
        ifelse who = (lipophiles + hydrophiles) * i
        [
          move-to item (j + (lipophiles + hydrophiles) * i) patch-list
          set kind 1
          ask patch-here [set pkind 1]
          set leader nobody
          set follower amphicule (1 + (lipophiles + hydrophiles) * i)

          set color white
          set size 0.8
        ]
        [
          ; the last, a lipophile (it is assumed that the minimum number of lipophiles is 1)
          ifelse who = lipophiles + hydrophiles - 1 + (lipophiles + hydrophiles) * i
          [
            move-to item (j + (lipophiles + hydrophiles) * i) patch-list
            set kind (- 1)
            ask patch-here [set pkind (- 1)]
            set color brown
            set leader amphicule (lipophiles + hydrophiles - 2  + (lipophiles + hydrophiles) * i)
            set follower nobody
            create-link-with leader [set thickness 0.2 set color black]
          ]
          [
            ; for the intermediates
            move-to item (j + (lipophiles + hydrophiles) * i) patch-list
            ifelse j < hydrophiles
            [
              set kind 1
              ask patch-here [set pkind 1]
              set color white
              set size 0.8
            ]
            [
              set kind (- 1)
              ask patch-here [set pkind (- 1)]
              set color brown
            ]
            set leader amphicule (j - 1 + (lipophiles + hydrophiles) * i)
            set follower amphicule (j + 1 + (lipophiles + hydrophiles) * i)
            create-link-with leader [set thickness 0.2 set color black]
          ]
        ]
      ]
      set j (j + 1)
    ]
    set i (i + 1)
  ]

  ; initialization of the lipid, single sites
  if (lipids-number + count patches with [any? amphicules-here]) / count patches > 1 [user-message (word "Lipids are more than can fit in the world!")]
  ask n-of lipids-number patches with [not any? amphicules-here]
  [
    set pcolor brown
    set pkind (- 1)
  ]

  reset-ticks
end


; gives the fraction of the mixture that is occupied by amphiphile molecules

to amphiphiles-fract
  clear-output
  output-print precision ((lipophiles + hydrophiles) * amphiphiles / (count patches)) 4
end
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to go
  let option 0

  let chosen1 nobody
  let neig-sum-1 0
  let chosen2 nobody
  let Edif 0

  let amphilist []
  let plist []
  let edge "back"
  let pchosen1 nobody
  let pchosen2 nobody
  let Eold 0
  let Enew 0
  let pchosen1kind 0
  let pchosen2kind 0
  let chosen1list []
  let chosen2list []
  let potentials []

  ; !beware! !spaghetti code is following!
  ask one-of patches ; at each tick, a single proposal is made
  [
;;;; First site selected is a lipid or water molecule ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
    if not any? amphicules-here
    [
      ; it chose a single site firstly
      set chosen1 self
      set neig-sum-1 sum [pkind] of neighbors
      ask one-of other patches
      [
        ;;;; Second site selected is a lipid or water molecule ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
        ifelse not any? amphicules-here
        [
          if pkind != [pkind] of chosen1 ; go on only if the second is of the other kind
          [
            set chosen2 self
            set Edif 2 * (pkind * sum [pkind] of neighbors + [pkind] of chosen1 * neig-sum-1)
            if (Edif <= 0) or (temperature > 0 and (random-float 1.0 < exp ((- Edif) / temperature)))
            [
              ; if the proposal is accepted, flip the states of the chosen two
              ask chosen1
              [
                set pkind (- pkind)
                ifelse pkind = 1 [set pcolor blue + 2][set pcolor brown]
              ]
              ask chosen2
              [
                set pkind (- pkind)
                ifelse pkind = 1 [set pcolor blue + 2][set pcolor brown]
              ]
            ]
          ]
        ]
        ;;;; Second site selected is amphicule ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
        [
          set option 1
        ]
      ]
    ]
;;;; First site selected is an amphicule, or the second site selected previously was an amphicule ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;; In the latter case, disregard the first selection of a water or lipid molecule, and keep the second (the amphicule) as first ;;;;;;;;;;;;;;

    if (any? amphicules-here) or (option = 1)
    [

      ask amphicules-here
      [
        ;;;;; the first selected amphicule is either the hydrophilic or hydrophobic end of an amphiphilic chain ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
        ;;;;; in this case, chain reptation is proposed ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
        ifelse leader = nobody or follower = nobody
        [
          set chosen1 self
          set pchosen1 patch-here
          set pchosen1kind [pkind] of pchosen1
          if leader = nobody [set edge "front"]
          set amphilist (give-chain chosen1)
          set plist (give-patches amphilist)

          ; continue only if the amphicule has at least one water or lipid molecules as neighbors
          ; (reptation is allowed only with a water/lipid site: the chain reptates to the water/lipid site,
          ; and the water/lipid molecule is sent to the emptied site)
          ask pchosen1
          [
            set potentials neighbors with [not any? amphicules-here]
            set pchosen2 one-of potentials
            if pchosen2 = nobody [stop]
          ]
          if pchosen2 = nobody [stop]

          foreach plist [ask ? [set Eold Eold - pkind * sum [pkind] of neighbors]]

          ask pchosen2
          [
            set pchosen2kind pkind
            set Eold Eold - pkind * sum [pkind] of neighbors
          ]

          ; from here on, chain reptation is developed
          foreach amphilist [ask ? [hide-turtle]]

          ask chosen1 [move-to pchosen2]

          ifelse edge = "front"
          [
            let i 1
            while [i < lipophiles + hydrophiles]
            [
              ask item i amphilist [move-to item (i - 1) plist]

              ask item (i - 1) plist
              [
                set pkind [kind] of item i amphilist
                set pcolor blue + 2
              ]
              set i (i + 1)
            ]
          ]
          [
            let i 0
            while [i < lipophiles + hydrophiles - 1]
            [
              ask item i amphilist [move-to item (i + 1) plist]

              ask item (i + 1) plist
              [
                set pkind [kind] of item i amphilist
                set pcolor blue + 2
              ]
              set i (i + 1)
            ]
          ]

          ifelse edge = "front"
          [
            ask last plist
            [
              set pkind [pkind] of pchosen2
              ifelse ([pkind] of pchosen2) = 1 [set pcolor blue + 2][set pcolor brown]
            ]
          ]
          [
            ask first plist
            [
              set pkind [pkind] of pchosen2
              ifelse ([pkind] of pchosen2) = 1 [set pcolor blue + 2][set pcolor brown]
            ]
          ]

          ask pchosen2
          [
            set pkind [kind] of chosen1
            set pcolor blue + 2
          ]

          foreach plist [ask ? [set Enew Enew - pkind * sum [pkind] of neighbors]]

          ask pchosen2 [set Enew Enew - pkind * sum [pkind] of neighbors]

          set Edif Enew - Eold
          ; chain reptation plus calculation of energies are done...

          ; in the following cases, the proposal is rejected, and everything returns to its original position
          if (proper-chain? amphilist = "False") or ((Edif > 0) and (((temperature > 0) and (random-float 1.0 > exp ((- Edif) / temperature))) or (temperature <= 0)))
          [
            (foreach amphilist plist
              [
                ask ?1 [move-to ?2]

                ask ?2
                [
                  set pkind [kind] of ?1
                  set pcolor blue + 2
                ]
              ])
            ask pchosen1
            [
              set pkind pchosen1kind
              set pcolor blue + 2
            ]
            ask pchosen2
            [
              set pkind pchosen2kind
              ifelse pchosen2kind = 1 [set pcolor blue + 2][set pcolor brown]
            ]
          ]
          foreach amphilist [ask ? [show-turtle]]
        ]

        ;;;;; the first selected amphicule is an intermediate amphiphilic chain member ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
        ;;;;; in this case, chain twisting is proposed ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
        [
          set chosen1 self
          set pchosen1 patch-here
          set pchosen1kind [pkind] of pchosen1

          ask pchosen1
          [
            ; currently, only twisting with water/lipid molecules sites is allowed as proposals
            set potentials sort neighbors with [not any? amphicules-here]
            set potentials patch-set potentials
            set pchosen2 one-of potentials
            set Eold (- pkind * sum [pkind] of neighbors)
            if pchosen2 = nobody [stop]
          ]
          if pchosen2 = nobody [stop]

          ask pchosen2
          [
            set pchosen2kind pkind
            set Eold (Eold - pkind * sum [pkind] of neighbors)
          ]

          ; from here on, chain twisting is developed
          ask chosen1
          [
            hide-turtle
            move-to pchosen2
            set chosen1list (give-chain chosen1)
          ]

          ask pchosen1
          [
            set pkind [pkind] of pchosen2
            ifelse ([pkind] of pchosen2) = 1 [set pcolor blue + 2][set pcolor brown]
          ]

          ask pchosen2
          [
            set pkind [kind] of chosen1
            set pcolor blue + 2
            set Enew (- pkind * sum [pkind] of neighbors)
          ]
          ; chain twisting plus calculation of energies are done...

          ; in the following cases, the proposal is rejected, and everything returns to its original position
          if (proper-chain? chosen1list = "False") or ((Edif > 0) and (((temperature > 0) and (random-float 1.0 > exp ((- Edif) / temperature))) or (temperature <= 0)))
          [
            ask chosen1
            [
              move-to pchosen1
            ]
            ask pchosen1
            [
              set pkind pchosen1kind
              set pcolor blue + 2
            ]
            ask pchosen2
            [
              set pkind pchosen2kind
              ifelse pchosen2kind = 1 [set pcolor blue + 2][set pcolor brown]
            ]
          ]
          ask chosen1 [show-turtle]
        ]
      ]
    ]
  ]

  tick
end

;;; Three reporters are following ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

; reports a list with all amphicules of a chain, from first to last, given an
; amphicule member of it

to-report give-chain [amphicule]
  let previous [leader] of amphicule
  let current amphicule
  let chain []

  while [previous != nobody]
  [
    set current previous
    set previous [leader] of current
  ]

  set chain lput current chain

  let i 1
  while [i < lipophiles + hydrophiles]
  [
    set chain lput [follower] of last chain chain
    set i (i + 1)
  ]

  report chain
end


; reports a list with all patches that a chain lies, from first to last, given the list
; of the amphicule chain members

to-report give-patches [amphilist]
  let patch-list []

  foreach amphilist [ask ? [set patch-list lput patch-here patch-list]]

  report patch-list
end


; reports true or false depending on either the chain of the input, given as a
; list, has a proper configuration (each patch hosts one amphicule, and these
; patches are chain-like neighbors)

to-report proper-chain? [amphiculelist]
  let proper? "True"

  foreach but-last amphiculelist [ask ? [if distance follower > 1.5 or distance follower < 0.1 [set proper? "False"]]]

  foreach amphiculelist [ask ? [if any? other amphicules-here [set proper? "False"]]]

  report proper?
end
