CitySCAPE Critical Systems
Model was written in NetLogo 5.1.0
•
Viewed 1238 times
•
Downloaded 83 times
•
Run 0 times
Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)
Comments and Questions
Please start the discussion about this model!
(You'll first need to log in.)
Click to Run Model
;; Author: George-Alexandru Serea, Univeristy Politehnica of Bucharest, Romania, 2013 ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;start globals [ ; butoane pentru interfata butoane ; cladiri monitorizate cladiri-monitorizate ; agenti pentru monitorizarea cladirilor => senzori senzori-monitorizare ;=> senzori ; elemente de monitorizare pentru interfata elemente-afisare ; cladiri cladiri spital baraj hidrocentrala centrala-nucleara gara-periferie gara-oras aeroport pista-aeroport pozitie-spawn-avioane ; sine si trenuri sina-1 sina-2 sina-3 sina-4 sine-tren tren-1 tren-2 tren-3 tren-4 ; trenuri ; nu este necesar deoarece toate au categoria feroviar ;setari pentru interfata limita-dreapta limita-jos ; variabile pentru trenuri timp-stationare-trenuri ; viteze: v-oameni v-masini v-autobuze v-camioane v-trenuri v-avioane ; acceleratii: a-oameni a-masini a-autobuze a-camioane a-trenuri a-avioane ; distante dintre agenti d-oameni d-masini d-autobuze d-camioane d-trenuri d-avioane ; distante de franare df-oameni df-masini df-autobuze df-camioane df-trenuri df-avioane ; indici de virare vir-oameni vir-masini vir-autobuze vir-camioane vir-trenuri vir-avioane ; categorie cat-oameni cat-masini cat-autobuze cat-camioane cat-trenuri cat-avioane ; dimensiune dim-oameni dim-masini dim-autobuze dim-camioane dim-trenuri dim-avioane ; setari harta culoare-sosea culoare-trotuar latime-trotuar ; spatiu-cladiri marime-cladiri ; variabile plotare masini-plotate ; zona epicentru zona-epicentru ; pentru afisarea timpului de rulare timer-running timer-dummy last-tick-running ] ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;breeds ; mobile agent types breed [oameni om] breed [masini masina] breed [camioane camion] breed [autobuze autobus] breed [trenuri tren] breed [avioane avion] breed [copaci copac] ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;agenti statici ; static agent types breed [semafoare semafor] breed [fiz-cladiri fiz-cladire] ;;overlay peste patch-uri? breed [senzori senzor] ;; verifica starea unei anume cladiri ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;variabile agenti ; custom variables patches-own [ nivel tip benzi id safe id-cladire stare alerta ; tip poate fi: interfata, iarba, cladire, aeroport, pista, sosea, trotuar ; safe va fi folosit pentru a restrictiona acesul masinilor pe anumite drumuri, i.e. drumurile de langa cladirile care ard ; id cladire este folosit de catre elementele din interfata pentru a identifica corect indicatorul ; stare este folosit pentru a detalia si mai mult indicatorul; exemple pentru campul stare: cutremur, incendiu, functional, etc... ; alerta este setat de catre senzori si este folosit pentru a aprinde ] turtles-own [ viteza acceleratie distanta distanta-franare virare categorie ] masini-own [ ales-viraj virez-stanga ] autobuze-own [ ales-viraj virez-stanga ] camioane-own [ ales-viraj virez-stanga ] trenuri-own [ tren-id ; folosit pentru a identifica trenul. Locomotivele si vagoanele au id-ul acesta egal pentru fiecare tren in parte. timp-stationare ; exprimat in secunde, va fi folosit pentru oprirea trenului in gara timp-ajuns-gara ; momentul in care trenul a oprit in gara locomotiva ; este locomotiva? ;; pentru miscare se va folosi forward 1 sau forward -1. Heading ramane neschimbat. ] avioane-own [ altitudine aterizeaza prabuseste tinta ] senzori-own [ cladire-id eveniment-urmarit intensitate prag id-senzor ] ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;setup;; to setup clear-all ; global variables setup: set butoane [] set cladiri-monitorizate [] set senzori-monitorizare [] set-default-shape senzori "senzor" set-default-shape copaci "tree" set elemente-afisare [] set cladiri [] setup-globals ; environmental setup: setup-harta ; interface setup: setup-interfata ; agents setup: setup-agenti ;user-message (word "Nota: Trenurile sunt setate sa stationeze in gara " timp-stationare-trenuri " secunde si vor porni din starea de 'stationat'.\n\nTimpul se poate modifica pentru fiecare tren in parte folosind comanda in consola:\n\task tren-N [ set timp-stationare T ]") reset-timer reset-ticks end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;go;; to go ; agent motion: orienteaza-agenti misca-agenti ; actualizeaza-monitorizarea ; ==> va fi apelat de catre functia generatoare de evenimente! tick end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;variabile globale __includes ["_globals.nls"] ;; to setup-globals... ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;setup interfata;; to setup-interfata ;adauga-elemente-monitorizare [ start-x-em start-y-em X-em Y-em dim-em spatiu-em id-em cladire-parinte stari-urmarite ] adauga-elemente-monitorizare -100 -36 6 1 3 2 ( [id] of one-of aeroport ) "Airport" [ "operating" "quarantine" "fire" "earthquake" "blackout" "threat" ] adauga-elemente-monitorizare -60 -36 6 1 3 2 ( [id] of one-of gara-periferie ) "Railroad Station" [ "operating" "quarantine" "fire" "earthquake" "blackout" "threat" ] adauga-elemente-monitorizare -20 -36 6 1 3 2 ( [id] of one-of gara-oras ) "City Train Station" [ "operating" "quarantine" "fire" "earthquake" "blackout" "threat" ] adauga-elemente-monitorizare 20 -36 5 1 3 2 ( [id] of one-of centrala-nucleara ) "Nuclear Plant" [ "operating" "quarantine" "fire" "earthquake" "threat" ] adauga-elemente-monitorizare 60 -36 5 1 3 2 ( [id] of one-of hidrocentrala ) "Hydro-electric Plant" [ "operating" "quarantine" "fire" "earthquake" "threat" ] adauga-elemente-monitorizare 100 -36 7 1 3 2 ( [id] of one-of spital ) "Hospital (yellow)" [ "operating" "quarantine" "fire" "earthquake" "robbery" "threat" "blackout" ] ;adauga-senzori-monitorizare [ cladire-parinte stari-urmarite praguri ] adauga-senzori-monitorizare ( [id] of one-of aeroport ) [ "quarantine" "fire" "earthquake" "blackout" "threat" ] [ 1 1 4 1 1 ] adauga-senzori-monitorizare ( [id] of one-of gara-periferie ) [ "quarantine" "fire" "earthquake" "blackout" "threat" ] [ 1 1 4 1 1 ] adauga-senzori-monitorizare ( [id] of one-of gara-oras ) [ "quarantine" "fire" "earthquake" "blackout" "threat" ] [ 1 1 4 1 1 ] adauga-senzori-monitorizare ( [id] of one-of centrala-nucleara ) [ "quarantine" "fire" "earthquake" "threat" ] [ 1 1 5.5 1 ] adauga-senzori-monitorizare ( [id] of one-of hidrocentrala ) [ "quarantine" "fire" "earthquake" "threat" ] [ 1 1 5 1 ] adauga-senzori-monitorizare ( [id] of one-of spital ) [ "operating" "quarantine" "fire" "earthquake" "robbery" "threat" "blackout" ] [ 1 1 1 6 1 1 1 ] end to actualizeaza-monitorizarea ; Din punct de vedere al cladirilor monitorizate: ; - pentru fiecare cladire in parte actualizam senzorii si in functie de modificarile aduse setam alarma si starea de functionare ; ; Functionarea si alarma se seteaza in functie de citirile senzorilor astfel: ; - functionarea inceteaza pentru orice eveniment ( jaf cutremur incendiu inundatie etc ) ; - alarma se activeaza pentru evenimente care necesita prezenta echipajelor de interventie ( jaf incendiu etc ) foreach cladiri-monitorizate [ let cladire-curenta ? let senzori-activi 0 let senzori-interventie 0 ask senzori with [ cladire-id = ( [id] of ( one-of ? ) ) ] ; ? este agentset de patch-uri [ let senzor-curent self let element-afisare ( patches with [ ( tip = "interfata" ) and ( id-cladire = ( [cladire-id] of senzor-curent ) ) and ( stare = ( [eveniment-urmarit] of senzor-curent ) ) ] ) ifelse ( intensitate >= prag ) [ ask element-afisare [ set pcolor red ] set senzori-activi ( senzori-activi + 1 ) if ( position ( eveniment-urmarit ) [ "robbery" "fire" "quarantine" "threat" ] != false ) [ set senzori-interventie 1 ] ] [ ask element-afisare [ set pcolor green ] ] ] ;show (word "S-au activat " senzori-activi " senzori ") ifelse ( senzori-activi > 0 ) [ ask ( patches with [ ( tip = "interfata" ) and ( id-cladire = ( [id] of ( one-of cladire-curenta ) ) ) and ( stare = "operating" ) ] ) [ set pcolor red ;; verificari pentru trenuri! if ( [id] of one-of cladire-curenta = [id] of one-of aeroport ) [ ask trenuri with [ id = 1 or id = 2 ] [ set viteza 0 ] ] if ( [id] of one-of cladire-curenta = [id] of one-of gara-periferie ) [ ask trenuri [ set viteza 0 ] ] if ( [id] of one-of cladire-curenta = [id] of one-of gara-oras ) [ ask trenuri with [ id = 3 or id = 4 ] [ set viteza 0 ] ] ] ] [ ask ( patches with [ ( tip = "interfata" ) and ( id-cladire = ( [id] of ( one-of cladire-curenta ) ) ) and ( stare = "operating" ) ] ) [ set pcolor green let g-p one-of ( patches with [ ( tip = "interfata" ) and ( id-cladire = ( [id] of ( one-of gara-periferie ) ) ) and ( stare = "operating" ) ] ) let g-o one-of ( patches with [ ( tip = "interfata" ) and ( id-cladire = ( [id] of ( one-of gara-oras ) ) ) and ( stare = "operating" ) ] ) let ae one-of ( patches with [ ( tip = "interfata" ) and ( id-cladire = ( [id] of ( one-of aeroport ) ) ) and ( stare = "operating" ) ] ) ;; verificari pentru trenuri if ( ( [pcolor] of ae = green ) and ( [pcolor] of g-p = green ) ) [ ask tren-1 [ set viteza ( v-trenuri ) ] ask tren-2 [ set viteza ( - v-trenuri ) ] ] if ( ( [pcolor] of g-p = green ) and ( [pcolor] of g-o = green ) ) [ ask tren-3 [ set viteza ( v-trenuri ) ] ask tren-4 [ set viteza ( - v-trenuri ) ] ] ] ] ;show senzori-interventie ifelse ( senzori-interventie > 0 ) [ ask ( patches with [ ( tip = "interfata" ) and ( id-cladire = ( [id] of ( one-of cladire-curenta ) ) ) and ( stare = "quarantine" ) ] ) [ set pcolor red ] ; trebuie sa delimitez perimetrul seteaza-perimetru-cladire ( [id] of ( one-of cladire-curenta ) ) ( [tip] of ( one-of cladire-curenta ) ) ] [ ask ( patches with [ ( tip = "interfata" ) and ( id-cladire = ( [id] of ( one-of cladire-curenta ) ) ) and ( stare = "quarantine" ) ] ) [ set pcolor green ] ] ] ; efect grafic pentru epicentru let magnitudine-actuala ( max [intensitate] of ( senzori with [ eveniment-urmarit = "earthquake" ] ) ) ifelse ( magnitudine-actuala > 0 ) [ ask zona-epicentru [ set pcolor ( 65 - ( magnitudine-actuala / 2 ) ) ] ] [ ask zona-epicentru [ set pcolor 65 ] ] end to actualizeaza-cutremur [ mag-cutremur ] ask senzori with [ eveniment-urmarit = "earthquake" ] [ set intensitate ( mag-cutremur ) ] ifelse ( mag-cutremur > 4 ) ; de la 4 grade un cutremur este simtit de catre toata lumea [ ask turtles with [ categorie = "pietoni" or categorie = "rutier" or categorie = "feroviar" ] [ set viteza 0 ] ] [ ; re-seteaza vitezele stabilite ; oameni ask oameni [ set viteza v-oameni ] ask masini [ set viteza v-masini ] ask autobuze [ set viteza v-autobuze ] ask camioane [ set viteza v-camioane ] ; fiecare tren in parte ask tren-1 [ set viteza ( v-trenuri ) ] ask tren-2 [ set viteza ( - v-trenuri ) ] ask tren-3 [ set viteza ( v-trenuri ) ] ask tren-4 [ set viteza ( - v-trenuri ) ] ] actualizeaza-monitorizarea print (word floor timer "s: Seismic Activity or magnitude set to " mag-cutremur " on the Richter Scale") end to reseteaza-lume ; elimina toate pericolele si readuce lumea la starea "pasnica" ; 1) elimina evenimentele din senzori ask senzori [ set intensitate 0 ] ; 2) refa soselele si trotuarele ask patches with [ tip = "sosea" ] [ set pcolor culoare-sosea set safe true ] ask patches with [ tip = "trotuar" ] [ set pcolor culoare-trotuar set safe true ] ; 3) oamenii nu mai sunt forte de interventie ask oameni [ set color black ] ; 4) anuleaza cutremurul actualizeaza-cutremur 0 ; actualizeaza si interfata ; 5) actualizeaza interfata ;actualizeaza-monitorizarea end to aplica-eveniment-cladire [ cladire-tinta eveniment-propus ] ; selctia cladirii tinta if ( cladire-tinta = "The Airport" ) [ set cladire-tinta ( [id] of ( one-of aeroport ) ) ] if ( cladire-tinta = "The Railroad Station" ) [ set cladire-tinta ( [id] of ( one-of gara-periferie ) ) ] if ( cladire-tinta = "The city Train Station" ) [ set cladire-tinta ( [id] of ( one-of gara-oras ) ) ] if ( cladire-tinta = "The Hospital" ) [ set cladire-tinta ( [id] of ( one-of spital ) ) ] if ( cladire-tinta = "The Nuclear Plant" ) [ set cladire-tinta ( [id] of ( one-of centrala-nucleara ) ) ] if ( cladire-tinta = "The Hydro-electric Plant" ) [ set cladire-tinta ( [id] of ( one-of hidrocentrala ) ) ] let senzor-exista ( senzori with [ cladire-id = ( cladire-tinta ) and eveniment-urmarit = ( eveniment-propus ) ] ) ifelse ( count senzor-exista < 1 ) [ user-message (word "Sorry, the selected building doesn't have a sensor for the " eveniment-propus " event.\n\nPlease select another event or building." ) ;user-message (word "Imi pare rau, dar cladirea selectata nu are senzor pentru " eveniment-propus ".\n\nVa rog selectati alta cladire sau alt eveniment." ) ] [ ask senzor-exista [ set intensitate prag ] actualizeaza-monitorizarea ] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;ADAUGAREA AGENTILOR ;; Adaugarea agentiilor ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;setup agenti;; to setup-agenti create-oameni numpeople [ set viteza v-oameni ;; viteza initiala acum este nula set acceleratie a-oameni set distanta d-oameni set distanta-franare df-oameni set virare vir-oameni set categorie cat-oameni set size dim-oameni set shape "person" set color brown - 3 move-to one-of ( patches with [ tip = "trotuar" ] ) ] create-masini numcars [ set viteza v-masini ;; viteza initiala acum este nula set acceleratie a-masini set distanta d-masini set distanta-franare df-masini set virare vir-masini set categorie cat-masini set size dim-masini set shape "car" set color one-of [ red orange brown yellow green lime turquoise cyan sky blue violet magenta pink ] ;let pozitii ( patches with [ tip = "sosea"] ) move-to one-of ( patches with [ tip = "sosea" and ( count turtles-here ) < 1 ] ) ] create-autobuze numbuses [ set viteza v-autobuze ;; viteza initiala acum este nula set acceleratie a-autobuze set distanta d-autobuze set distanta-franare df-autobuze set virare vir-autobuze set categorie cat-autobuze set size dim-autobuze set shape "bus" set color one-of [ red orange brown yellow green lime turquoise cyan sky blue violet magenta pink ] move-to one-of ( patches with [ tip = "sosea" and ( count turtles-here ) < 1 ] ) ] create-camioane numtrucks [ set viteza v-camioane ;; viteza initiala acum este nula set acceleratie a-camioane set distanta d-camioane set distanta-franare df-camioane set virare vir-camioane set categorie cat-camioane set size dim-camioane set shape "truck" set color one-of [ red orange brown yellow green lime turquoise cyan sky blue violet magenta pink ] move-to one-of ( patches with [ tip = "sosea" and ( count turtles-here ) < 1 ] ) ] adauga-avioane 1 false false ;; creeaza trenurile: ; trenul 1: let start-x ([pxcor] of min-one-of sina-1 [pxcor] ) ; pozitie start X let start-y ([pycor] of min-one-of sina-1 [pycor] ) ; pozitie start Y set start-x ( start-x + floor ( v-trenuri * dim-trenuri ) ) create-trenuri 8 [ set tren-id 1 set heading 90 set viteza ( v-trenuri ) move-to patch start-x ( start-y ) set start-x ( start-x + dim-trenuri ) ] set tren-1 ( trenuri with [ tren-id = 1 ] ) ; trenul 2: set start-x ([pxcor] of max-one-of sina-2 [pxcor] ) ; pozitie start X set start-y ([pycor] of max-one-of sina-2 [pycor] ) ; pozitie start Y set start-x ( start-x - floor ( v-trenuri * dim-trenuri ) ) create-trenuri 8 [ set tren-id 2 set heading 90 set viteza ( - v-trenuri ) move-to patch start-x ( start-y ) set start-x ( start-x - dim-trenuri ) ] set tren-2 ( trenuri with [ tren-id = 2 ] ) ; trenul 3: set start-x ([pxcor] of max-one-of sina-3 [pxcor] ) ; pozitie start X set start-y ([pycor] of max-one-of sina-3 [pycor] ) ; pozitie start Y set start-y ( start-y - floor ( v-trenuri * dim-trenuri ) ) create-trenuri 6 [ set tren-id 3 set heading 180 set viteza ( v-trenuri ) move-to patch start-x ( start-y ) set start-y ( start-y - dim-trenuri ) ] set tren-3 ( trenuri with [ tren-id = 3 ] ) ; trenul 4: set start-x ([pxcor] of min-one-of sina-4 [pxcor] ) ; pozitie start X set start-y ([pycor] of min-one-of sina-4 [pycor] ) ; pozitie start Y set start-y ( start-y + floor ( v-trenuri * dim-trenuri ) ) create-trenuri 6 [ set tren-id 4 set heading 180 set viteza ( - v-trenuri ) move-to patch start-x ( start-y ) set start-y ( start-y + dim-trenuri ) ] set tren-4 ( trenuri with [ tren-id = 4 ] ) ;; seteaza locomitvele si trenurile ask trenuri [ set locomotiva false set shape "vagon" set categorie "feroviar" set color 95 set size dim-trenuri set timp-stationare timp-stationare-trenuri ] ;; trenurile mai mari se incarca mai greu => ask trenuri with [ tren-id = 1 or tren-id = 2 ] [ set timp-stationare ( timp-stationare + 1 ) ] ask tren-1 with [ xcor = max [xcor] of tren-1 or xcor = min [xcor] of tren-1 ] [ set locomotiva true ] ask tren-2 with [ xcor = max [xcor] of tren-2 or xcor = min [xcor] of tren-2 ] [ set locomotiva true ] ask tren-3 with [ ycor = max [ycor] of tren-3 or ycor = min [ycor] of tren-3 ] [ set locomotiva true ] ask tren-4 with [ ycor = max [ycor] of tren-4 or ycor = min [ycor] of tren-4 ] [ set locomotiva true ] ask trenuri with [ locomotiva = true ] [ set shape "locomotiva" set color 137 ] ; orientare orienteaza-agenti-spawn ; rezolva toate directiile posibile end to adauga-avioane [ nr ater prabu ] ; pot fi false false create-avioane nr [ ; numariplanes set viteza v-avioane ;; viteza ini tiala acum este nula set acceleratie a-avioane set distanta d-avioane set distanta-franare df-avioane set virare vir-avioane set categorie cat-avioane ;set size one-of n-values 4 [ ( 0.15 * ( ? + 6 )) * dim-avioane ] set size dim-avioane set shape "airplane" set color white set hidden? true set heading -90 ;setxy random-xcor random-ycor ; move-to one-of ( patches with [ ( count turtles-here ) < 1 and tip != "interfata" ] ) ; avioanele apar doar in zona activa a lumii move-to pozitie-spawn-avioane ;speciale set altitudine ( floor size * 1000 ) set aterizeaza ater set prabuseste prabu set tinta nobody ] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;orienteaza agenti spawn;; to orienteaza-agenti-spawn orienteaza-agenti-pietoni-spawn orienteaza-agenti-rutieri-spawn end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;orienteaza pietoni spawn;; to orienteaza-agenti-pietoni-spawn ask turtles with [ categorie = "pietoni" ] [ set color red let curent ( tip ) let directie ( one-of neighbors4 with [ tip = curent ] ) face directie set color black ] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;orienteaza rutieri spawn;; to orienteaza-agenti-rutieri-spawn ;ask one-of turtles [ setxy -22 -47 ] ;test and debug ask turtles with [ categorie = "rutier" ] [ set color red ; neprelucrat let bun ( tip ) ; agent pe sosea, trotuar, iarba, etc ? let t1 ( [tip] of patch-at-heading-and-distance ( 0 ) ( benzi ) ) let t2 ( [tip] of patch-at-heading-and-distance ( 0 ) ( benzi * 2 ) ) let t3 ( [tip] of patch-at-heading-and-distance ( 90 ) ( benzi ) ) let t4 ( [tip] of patch-at-heading-and-distance ( -90 ) ( benzi ) ) ifelse ( t1 = t2 and t2 = t3 and t3 = t4 and t4 = bun ) [ ;suntem in intersectie: => ne uitam la diagonale set t1 ( [tip] of patch-at-heading-and-distance ( -45 ) ( benzi ) ) set t2 ( [tip] of patch-at-heading-and-distance ( 45 ) ( benzi ) ) set t3 ( [tip] of patch-at-heading-and-distance ( -135 ) ( benzi ) ) set t4 ( [tip] of patch-at-heading-and-distance ( 135 ) ( benzi ) ) if ( t1 != bun ) [ set heading ( -90 ) set color green ] if ( t2 != bun ) [ set heading ( 0 ) set color green ] if ( t3 != bun ) [ set heading ( 180 ) set color green ] if ( t4 != bun ) [ set heading ( 90 ) set color green ] ] [ ; cazurile generale: if ( t1 = bun and t2 = bun ) ; drum vertical bun [ ; sosea verticala if ( t4 = bun ) [ set heading ( 0 ) set color green ] if ( t3 = bun ) [ set heading ( 180 ) set color green ] if ( [tip] of ( patch-ahead 1 ) != tip ) ; rezolva coltul din stanga-jos [ set heading ( 90 ) ] ] if ( t1 != bun and t2 != bun ) ;colt, trebuie sa virez la dreapta [ ifelse ( t4 = bun ) ; orice colt mai putin stanga sus [ set heading ( -90 ) set color green ] [ set heading ( 180 ) set color green ] ] if ( t1 = bun and t2 != bun ) ;va trebui sa viram la stanga ori la dreapta [ if ( t3 != bun or t3 != t4 ) ; curba exterioara,inca nu am ajuns la curba [ set heading 0 set color green ] if ( t3 = t4 and t4 = bun ) ; putem fi in drum orizontal, ori curba interioara si orientati invers ori intersectie si trebuie sa facem dreapta [ set t1 ( [tip] of patch-at-heading-and-distance ( -45 ) ( benzi ) ) set t2 ( [tip] of patch-at-heading-and-distance ( -90 ) ( benzi ) ) set t3 ( [tip] of patch-at-heading-and-distance ( 135 ) ( benzi ) ) ; t1, t2, t3 = tipul drumului de sub agent ifelse ( t1 != bun and t2 = t3 and t3 = bun ) ; interior intersectie [ set heading ( 180 ) set color green ] [ ;intersectie si facem dreapta sau drum orizontal si mergem spre dreapta set heading ( 90 ) set color green ] ] ] ] ] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;orienteaza agenti;; to orienteaza-agenti ; rezolva toate directiile rezultate ask turtles with [ categorie = "pietoni" ] [ if ( [ tip ] of ( patch-ahead viteza ) != tip ) [ set heading ( heading + ( one-of [ 90 180 270 ] ) ) ] ] ask turtles with [categorie = "rutier" and ales-viraj < 1 ] [ let curent ( tip ) ifelse ( [tip] of patch-ahead 1 != curent or ( ( safe = true ) and ([safe] of patch-ahead 1 != safe) ) ) ; nu vreau sa ies de pe un drum safe pe unul nesafe! [ ; virez fortat stanga set heading ( heading - 90 ) set ales-viraj 1 ] [ ; debugging pentru ambuteliaje frontale: daca cel din fata are heading = heading actual -180, fac stanga let orientare ( heading ) let masina-din-fata one-of ( ( turtles-on patch-ahead 1 ) with [ ( categorie = "rutier" ) and ( heading != orientare ) and ( ales-viraj < 1 ) ] ) if ( masina-din-fata != nobody ) [ ask masina-din-fata [ let turn one-of [ 90 -90 ] set heading ( heading + turn ) set ales-viraj 1 ] ] let t1 patch-at-heading-and-distance ( heading ) ( benzi * 2 ) ; 2 mai sus let t2 patch-at-heading-and-distance ( heading - 60 ) ( benzi * 2 ) ; 1 mai sus si 2 la stanga let t3 patch-at-heading-and-distance ( heading + 90 ) ( benzi ) ; 1 la dreapta ; verific drumurile posibile if ( [tip] of t1 != curent ) [ set t1 false ] if ( [tip] of t2 != curent ) [ set t2 false ] if ( [tip] of t3 != curent ) [ set t3 false ] ; verific drumurile safe ifelse ( is-patch? t1 and ([safe] of t1 = true ) or ( is-patch? t2 and [safe] of t2 = true ) or ( is-patch? t3 and [safe] of t3 = true ) ) [ ; cel putin 1 drum este safe. Drumurile safe sunt true, cele nesafe sunt false ifelse ( is-patch? t1 and [safe] of t1 = true ) [ set t1 true ] [ set t1 false ] ifelse ( is-patch? t2 and [safe] of t2 = true ) [ set t2 true ] [ set t2 false ] ifelse ( is-patch? t3 and [safe] of t3 = true ) [ set t3 true ] [ set t3 false ] ] [ ; nici un drum dintre cele 3 nu este safe. Setez directia posibila dupa prioriatea: inainte-dreapta-stanga ; stanga oricum se face pentru evitari if ( is-patch? t1 ) [ set t1 true set t2 false set t3 false ] if ( is-patch? t3 ) [ set t1 false set t3 true ifelse ( is-patch? t2 ) [ set t2 true ] [ set t2 false ] ] if ( is-patch? t2 ) [ set t1 false ifelse ( is-patch? t3 ) [ set t3 true ] [ set t3 false ] set t2 true ] ] ifelse ( t1 = true and t2 = true and t3 = true ) [ ; toate cele 3 cazuri sunt posibile let intentie-viraj random 100 ifelse ( intentie-viraj <= 33 ) [ ;merg inainte orienteaza-pentru-inainte ] [ ifelse ( intentie-viraj <= 66 ) [ ; stanga orienteaza-pentru-stanga ] [ ; dreapta orienteaza-pentru-dreapta ] ] ] [ ; doar 2 din 3 sunt posibile ifelse ( t1 = true and t2 = true and t3 = false ) [ let intentie-viraj random 100 ifelse ( intentie-viraj <= 50 ) [ orienteaza-pentru-stanga ] [ orienteaza-pentru-inainte ] ] [ ifelse ( t1 = false and t2 = true and t3 = true ) [ let intentie-viraj random 100 ifelse ( intentie-viraj <= 50 ) [ ;orienteaza-pentru-stanga set virez-stanga ( benzi - 1 ) set ales-viraj 3 ] [ orienteaza-pentru-dreapta ] ] [ ifelse ( t1 = true and t2 = false and t3 = true ) [ let intentie-viraj random 100 ifelse ( intentie-viraj <= 50 ) [ orienteaza-pentru-inainte ] [ orienteaza-pentru-dreapta ] ] [ ;doar un caz posibil ifelse ( t2 = true ) [ orienteaza-pentru-stanga ] [ if ( t3 = true ) [ orienteaza-pentru-dreapta ] ] ] ] ] ] ] ] ;; pentru optimizare, trenurile au orientarea setata in miscare! ;; cod in misca-tren ask avioane [ ifelse ( prabuseste = false ) [ ; ATERIZARE: let da 1.5 ; multiplicator distanta aterizare ifelse ( tinta = nobody ) [ let teren-aterizare ( patches in-cone ( 44 * da ) 0 with [ tip = "pista" ] ) if ( count teren-aterizare > 0 ) [ set tinta min-one-of teren-aterizare [ distance myself ] ifelse ( ( [pcolor] of ( one-of ( patches with [ tip = "interfata" and id-cladire = ( [id] of one-of aeroport ) and stare = "operating" ] ) ) ) != red ) [ set aterizeaza true ] [ set aterizeaza false ] ] ] [ ifelse ( aterizeaza = false ) [ set color pink ] [ let pana-aterizez distance tinta ifelse ( altitudine <= 0 ) [ die ] [ ; daca a inceput cutremurul, vrem sa ne ridicam iar la 1200m ifelse ( ( [pcolor] of ( one-of ( patches with [ tip = "interfata" and id-cladire = ( [id] of one-of aeroport ) and stare = "operating" ] ) ) ) != red ) [ set size ( size - ( 0.2 * ( 1 / da ) ) ) set altitudine floor ( altitudine - ( 300 * ( 1 / da ) ) ) set viteza ( viteza - ( 2 / ( da * 100 ) ) ) if ( altitudine < 0 ) [ set altitudine 0 ] ] [ if ( color != pink ) [ set color pink ] ; ne intereseaza dim! if ( altitudine < dim-avioane * 1000 ) [ set altitudine floor ( altitudine + ( 300 * ( 1 / da ) ) ) ] if ( altitudine > dim-avioane * 1000 ) [ set altitudine ( floor size * 1000 ) ] if ( viteza < v-avioane ) [ set viteza ( viteza + ( 2 / ( da * 100 ) ) ) ] if ( viteza > v-avioane ) [ set viteza v-avioane ] if ( size < dim-avioane ) [ set size ( size + ( 0.2 * ( 1 / da ) ) ) ] if ( size > dim-avioane ) [ set size dim-avioane set altitudine ( dim-avioane * 1000 ) set tinta nobody ] ] ] ] ] ] [ ; PRABUSIRE! set heading ( heading - 2 ) set size ( size - 0.1 ) set altitudine ( altitudine - 150 ) if ( size < 6.5 ) [ set altitudine 0 ] if ( altitudine <= 0 ) [ let victime one-of ( patches with [ id >= 0 and ( tip != "interfata" and tip != "lac" and tip != "iarba" )] ) in-radius 2 ;; caut cladirea sau soseaua cea mai apropiata ( in radius de 2 ) ifelse ( any? patches with [ tip = "gara" or tip = "cladire" or tip = "aeroport" or tip = "centrala-nucleara" or tip = "hidrocentrala" or tip = "spital" ] in-radius 10 ) [ set victime min-one-of ( patches with [ tip = "gara" or tip = "cladire" or tip = "aeroport" or tip = "centrala-nucleara" or tip = "hidrocentrala" or tip = "spital" ] in-radius 10 ) [ distance myself ] ;print (word "distanta este " distance victime " si tipul este " [tip] of victime ) ;; avem o cladire sau structura : let id-victime [id] of victime seteaza-perimetru-cladire id-victime ( [tip] of one-of item id-victime cladiri ) let senzor-incendiu ( senzori with [ eveniment-urmarit = "fire" and cladire-id = id-victime ] ) if ( count senzor-incendiu > 0 ) [ ask senzor-incendiu [ set intensitate prag ] ; activez senzorul de incendiu ] ;wait 0.3 actualizeaza-monitorizarea ] [ ;; verificam soseaua set victime min-one-of ( patches with [ tip = "sosea" ] in-radius 10 ) [ distance myself ] if ( victime != nobody ) [ ask victime [ ask patches in-radius 5 with [ tip = "sosea" ] [ set safe false set pcolor red ] ] ] ] ask copaci in-radius 4 [ die ] die ] ] ] if ( count avioane < 1 ) [ adauga-avioane 1 false false ] ; adauga un nou avion pe ruta end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;cazuri orientare agenti;; ; cazuri de orientare to orienteaza-pentru-inainte set ales-viraj ( benzi * 2 + 1 ) end to orienteaza-pentru-stanga set virez-stanga ( benzi * 2 + 1 ) set ales-viraj ( benzi * 2 + 2 ) end to orienteaza-pentru-dreapta set heading ( heading + 90 ) set ales-viraj ( benzi + 1 ) end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;miscare agenti;; to misca-agenti ask turtles with [ categorie = "rutier" ] [ if (ales-viraj > 0 ) [ set ( ales-viraj ) ( ales-viraj - 1) if ( virez-stanga > 0 ) [ if ( virez-stanga = ( benzi * 2 - 1 ) ) [ set heading ( heading - 90 ) ] set virez-stanga ( virez-stanga - 1 ) ] ] if ( [tip] of patch-ahead 1 = tip and count turtles-on patch-ahead 1 < 1 ) [ if ( ( [safe] of patch-ahead 1 = true ) or ( [safe] of patch-ahead 1 = safe ) ) [ forward viteza ] ] ] ask oameni [ if ( [tip] of patch-ahead viteza = tip and [safe] of patch-ahead viteza = true ) [ forward viteza ] ] ; trenurile au o alta abordare: orientarea e inclusa in miscare si se face miscarea pentru fiecare tren in parte misca-tren tren-1 misca-tren tren-2 misca-tren tren-3 misca-tren tren-4 ask avioane [ forward viteza ifelse (([tip] of patch-at-heading-and-distance ( heading ) 2 = "interfata") and ([tip] of patch-at-heading-and-distance ( heading - 180 ) 2 = "interfata")) [ hide-turtle if ( color = pink ) [ die ] ] [ show-turtle ] ] end to misca-tren [ tren-x ] ask one-of tren-x with [ locomotiva = true ] [ ifelse ( ( all? ( tren-x with [ locomotiva = true ] ) [ [tip] of patch-ahead ( viteza * size ) = "sina" ] ) ) [ if ( timer-running > ( timp-ajuns-gara + timp-stationare ) ) [ ask tren-x [ forward viteza ] ] ] [ ask tren-x [ set timp-ajuns-gara timer-running set viteza ( - viteza ) ] ] ] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;CREAREA LUMII ;; Generarea spatiului modelat ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;setup HARTA;; to setup-harta ;; relief intai: ask patches [ set pcolor 65 set nivel 0 set tip "iarba" set id -1 set id-cladire -1 ] ; lac acumulare let t1 -106 let t2 32 let lim-t1 ( 16 + t1 ) ask patches with [ pxcor < t1 and abs ( pycor - t2 ) < 2 ] [ set pcolor 87 set tip "apa" ] while [ t1 <= lim-t1 ] [ ask patch t1 t2 [ ask patches in-radius 10 [ set pcolor 87 set tip "lac" set id 1 ] ] set t1 ( t1 + 1 ) ] ; lac varsare set t1 -38 set t2 0 set lim-t1 ( 16 + t1 ) while [ t1 <= lim-t1 ] [ ask patch t1 t2 [ ask patches in-radius 10 [ set pcolor 87 set tip "lac" set id 2 ] ] set t1 ( t1 + 1 ) ] ;; interfata ask patches with [ pycor <= limita-jos or pxcor >= limita-dreapta ] [ set pcolor white set nivel 0 set tip "interfata" set id -2 ] ;; pista aeroport set pista-aeroport patches with [((pycor >= 52 and pycor <= 60 ))and (pxcor >= -126 and pxcor <= -104)] ask pista-aeroport [ set pcolor white set nivel 0 set tip "iluminare-pista" ] ask pista-aeroport with [ pxcor <= -112 ] [ set tip "pista" ] ;; gari si sine de tren ask patches with [(pycor >= 58) and (pxcor >= 50 and pxcor < limita-dreapta - 2)] [ set pcolor 36 set nivel 0 set tip "gara" set id 1 ] ask patches with [(pycor >= 44) and (pxcor >= 66 and pxcor < limita-dreapta - 2)] [ set pcolor 36 set nivel 0 set tip "gara" set id 1 ] set sina-1 patches with [(( pycor = 66 ) and (( pxcor >= -124 ) and ( pxcor <= limita-dreapta - 8 )))] ask sina-1 [ set pcolor 33 set nivel 0 set tip "sina" set id 1 ] set sina-2 patches with [(( pycor = 64 ) and (( pxcor >= -124 ) and ( pxcor <= limita-dreapta - 8 )))] ask sina-2 [ set pcolor 33 set nivel 0 set tip "sina" set id 2 ] ; aeroport set aeroport patches with [(pycor >= 50 and pxcor <= -100) and tip = "iarba"] ask aeroport [ set pcolor 85 set nivel 0 set tip "aeroport" set id 0 ] set sina-3 patches with [(( pxcor = 73) and (( pycor <= 60 ) and ( pycor >= limita-jos + 18 )))] ask sina-3 [ set pcolor 33 set nivel 0 set tip "sina" set id 3 ] set sina-4 patches with [(( pxcor = 75 ) and (( pycor <= 60 ) and ( pycor >= limita-jos + 18 )))] ask sina-4 [ set pcolor 33 set nivel 0 set tip "sina" set id 4 ] set sine-tren patches with [ tip = "sina" ] set gara-periferie patches with [ tip = "gara" ] ; doar gara asta s-a construit pana acum set gara-oras patches with [(pycor <= 4 and pycor > limita-jos + 14) and (pxcor >= 66 and pxcor < limita-dreapta - 2) and tip != "sina"] ask gara-oras [ set pcolor 36 set nivel 0 set tip "gara" set id 2 ] set cladiri lput aeroport cladiri set cladiri lput gara-periferie cladiri set cladiri lput gara-oras cladiri ;; cartiere ( clustere de cladiri inconjurate de sosele de dimensiune data - 2 - si trotuare de latime 1 ) let start-x 62 ;; Nota: Se precizeaza coltul din dreapta-sus al primei cladiri! let start-y 21 ;; Prima cladire este tot in coltul din dreapta-sus! let size-x 7 let size-y 4 let latime-drum 2 ; cate benzi are drumul? let last-id 3 ; de la cat incep alocarea de id-uri => 0 = aeroport, 1 si 2 = gari, deci de la 3 incep cladirile ;set last-id construieste-cartier start-x start-y size-x size-y 6 4 latime-drum 1 id-cladiri ; apel cu parametrii set last-id construieste-cartier "cladire" start-x start-y size-x size-y 6 4 latime-drum 1 last-id set start-x 72 set start-y -19 set size-x 8 set size-y 1 set last-id construieste-cartier "cladire" start-x start-y size-x size-y 6 4 latime-drum 1 ( last-id + 1 ) ;; 3 case langa gara ca sa fie incercuita set start-x 68 set start-y 21 set size-x 1 set size-y 3 set last-id construieste-cartier "cladire" start-x start-y size-x size-y 2 4 latime-drum 1 ( last-id + 1 ) ;; centrala nucleara set start-x -104 ;; Nota: Se precizeaza coltul din dreapta-sus al primei cladiri! set start-y -5 ;; Prima cladire este tot in coltul din dreapta-sus! set size-x 1 set size-y 1 set last-id construieste-cartier "centrala-nucleara" start-x start-y size-x size-y 20 4 latime-drum 1 ( last-id + 1 ); ;print (word "Centrala are id-ul " last-id ) set centrala-nucleara patches with [ tip = "centrala-nucleara" and id = last-id ] ;; spitalul let id-spital random ( length cladiri - 4 - 3 ) ; sad cladirile critice si cladirile mici ( vilele ) set id-spital ( id-spital + 3 ) ; se sar primele cladiri set spital patches with [ tip = "cladire" and id = id-spital ] ask spital [ set tip "spital" ] ;; barajul ask patches with [ ( pxcor >= -81 and pxcor <= -80 ) and ( pycor >= 26 and pycor <= 38 ) ] [ set tip "baraj" set id length cladiri set pcolor ( gray + 3 ) set safe false ] set baraj patches with [ tip = "baraj" ] set cladiri lput baraj cladiri ;; rauri de legatura intre lacuri si care ies din model set t1 -35 set t2 32 set lim-t1 ( -79 ) ask patches with [ ( pxcor >= lim-t1 and pxcor <= t1 ) and abs ( pycor - t2 ) < 2 ] [ set pcolor 87 set tip "apa" ] set t1 -36 set t2 11 let lim-t2 ( 30 ) ask patches with [ ( abs ( pxcor - t1 ) < 2 ) and ( pycor >= t2 and pycor <= lim-t2 ) ] [ set pcolor 87 set tip "apa" ] ; iesirea din lacul 2 set t1 -20 set t2 -10 set lim-t1 ( 16 + t1 ) ask patches with [ ( abs ( pxcor - t1 ) < 2 ) and ( pycor > limita-jos and pycor <= t2 ) ] [ set pcolor 87 set tip "apa" ] ;; hidrocentrala ask patches with [ ( pxcor >= -79 and pxcor <= -56 ) and ( pycor >= 20 and pycor <= 36 ) and tip != "apa" ] [ set tip "hidrocentrala" set id length cladiri set pcolor ( 115 ) ] ask patch -57 26 [ set plabel "Hydro-electric Plant" set plabel-color white ] set hidrocentrala patches with [ tip = "hidrocentrala" ] set cladiri lput hidrocentrala cladiri ;; drumuri de legatura construieste-drum "strada" -7 -16 -100 -16 2 ; caz x1 y1 x2 y2 latime construieste-drum "strada" 65 25 65 57 2 construieste-drum "strada" 63 57 -99 57 2 construieste-drum "strada" -98 55 -98 48 2 construieste-drum "strada" -100 49 -120 49 2 construieste-drum "strada" -119 47 -119 -1 2 ; drumuri legatura cu hidrocentrala construieste-drum "strada" -50 19 -50 -16 2 construieste-drum "strada" -119 19 -52 19 2 ;; denumiri ask patch -110 62 [ set plabel "Airport" set plabel-color 9.9 ] ask patch 70 60 [ set plabel "Railroad Station" ] ask patch 72 -2 [ set plabel "City" ] ask patch 72 -5 [ set plabel "Train" ] ask patch 72 -8 [ set plabel "Station" ] ask patch -107 -14 [ set plabel "Nuclear Plant" set plabel-color 9.9 ] ; 9.9 = white ask spital [ set pcolor yellow ] ;; desenarea dungilor perpediculare pentru spital let spital-x-cord ( mean ( [pxcor] of spital ) ) let spital-y-cord ( mean ( [pycor] of spital ) ) ifelse ( floor spital-x-cord = spital-x-cord ) [ ask spital with [ pxcor = spital-x-cord ] [ set pcolor red ] ] [ ask spital with [ ( pxcor = floor spital-x-cord ) or ( pxcor = ( floor spital-x-cord ) + 1 ) ] [ set pcolor red ] ] ifelse ( floor spital-y-cord = spital-y-cord ) [ ask spital with [ pycor = spital-y-cord ] [ set pcolor red ] ] [ ask spital with [ ( pycor = floor spital-y-cord ) or ( pycor = ( floor spital-y-cord ) + 1 ) ] [ set pcolor red ] ] ;; copaci let nr-copaci ( floor ( ( count patches with [ tip = "iarba" and ( any? neighbors with [ tip = "sosea" ] ) and pycor <= 50 ] ) / 4 ) ) create-copaci nr-copaci [ move-to one-of ( patches with [ tip = "iarba" and ( any? neighbors with [ tip = "sosea" ] and pycor <= 50 ) and ( count copaci in-radius 2 < 1 ) ] ) set color one-of [ 54 64 66 67 ] ] let padure ( patches with [ tip = "iarba" and ( count turtles-here < 1 ) and ( ( pxcor >= -119 and pxcor <= -54 ) and ( pycor >= -16 and pycor <= 19 ) ) ] ) set nr-copaci ( floor ( ( count padure ) / 2 ) ) create-copaci nr-copaci [ move-to one-of ( padure ) set color one-of [ 54 64 66 67 ] ] ; zona epicentru set t1 -16 set t2 36 let latime 14 ask patch t1 t2 [ set tip "zona-epicentru" ask patches in-radius latime [ if ( random 6 < 1 ) ;and ( one-of neighbors with [ tip = "zona-epicentru" ] ) != nobody ) [ set tip "zona-epicentru" ] ] ] set zona-epicentru ( patches with [ tip = "zona-epicentru" ] ) end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;construieste cartier;; to-report construieste-cartier [ tip-cladiri start-x start-y size-x size-y marime-cladiri spatiu-cladiri latime-drum marime-trotuar id-cladiri] let last-id construieste-cladiri tip-cladiri start-x start-y size-x size-y marime-cladiri spatiu-cladiri id-cladiri ;; drumuri let x1-drum ( start-x + ( latime-drum + latime-trotuar )) let y1-drum ( start-y + ( latime-drum + latime-trotuar )) let x2-drum ( x1-drum - (( size-x * marime-cladiri ) + (( size-x - 1 ) * spatiu-cladiri ) + ( 2 * ( latime-drum + latime-trotuar )) - 1 )) let y2-drum y1-drum ; construieste drumurile orizontale repeat ( size-y + 1 ) [ construieste-drum "strada" x1-drum y1-drum x2-drum y2-drum latime-drum set y1-drum ( y1-drum - ( marime-cladiri + spatiu-cladiri )) set y2-drum ( y2-drum - ( marime-cladiri + spatiu-cladiri )) ] set x1-drum ( start-x + ( latime-drum + latime-trotuar )) set y1-drum ( start-y + ( latime-drum + latime-trotuar )) set x2-drum x1-drum set y2-drum ( y1-drum - (( size-y * marime-cladiri ) + (( size-y - 1) * spatiu-cladiri) + ( 2 * ( latime-drum + latime-trotuar )) - 1 )) ; construieste drumurile verticale repeat ( size-x + 1 ) [ construieste-drum "strada" x1-drum y1-drum x2-drum y2-drum latime-drum set x1-drum ( x1-drum - ( marime-cladiri + spatiu-cladiri )) set x2-drum ( x2-drum - ( marime-cladiri + spatiu-cladiri )) ] ;; trotuar ask patches [ if (( any? neighbors with [ tip = "sosea" ] ) and ( any? neighbors with [ tip = tip-cladiri ] )) [ set pcolor ( culoare-trotuar ) set tip "trotuar" set nivel 0 set benzi 1 set safe true ]] report last-id ; returneaza ultimul id generat. end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;construieste cladiri;; to-report construieste-cladiri [ tip-cladiri start-x-cladiri start-y-cladiri X-cladiri Y-cladiri marime-cladiri spatiu-cladiri id-start] let id-c id-start let i 0 let dim marime-cladiri - 1 ; corectie ! let spatiu spatiu-cladiri + 1 ; corectie ! while [ i < Y-cladiri ] [ ; fiecare rand in parte let j 0 while [ j < X-cladiri ] [ let t1 0 let t2 0 ; fiecare cladire in parte let cladire ( patches with [ (pxcor <= ( start-x-cladiri - ( j * dim )) and pxcor >= ( start-x-cladiri - ( ( j + 1 ) * dim ))) and (pycor <= ( start-y-cladiri - ( i * dim )) and pycor >= ( start-y-cladiri - ( ( i + 1 ) * dim ))) ] ) ask cladire [ set pcolor blue set nivel 1 set tip tip-cladiri set id id-c ] set cladiri lput cladire cladiri set id-c ( id-c + 1 ) set j ( j + 1 ) set start-x-cladiri ( start-x-cladiri - spatiu ) ] set i ( i + 1 ) set start-y-cladiri ( start-y-cladiri - spatiu) set start-x-cladiri ( start-x-cladiri + ( X-cladiri * spatiu )) ] report ( id-c - 1 ) ; returneaza ultimul id adaugat! end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;construieste drum;; to construieste-drum [ caz x1 y1 x2 y2 latime] ;; DRUMUL construit contine extremitatile! ifelse (( x1 = x2 ) or ( y1 = y2 )) [ let cale no-patches set latime ( latime - 1 ) ; trebuie modificat si corectat in calcule! :=> set latime ( latime / 2 ) ifelse x1 = x2 [ ; luam patch-urile intre y1 si y2 if y1 > y2 [ let temp y1 set y1 y2 set y2 temp ] set cale ( patches with [( pxcor >= x1 - 1 ) and ( pxcor <= x1 + latime - 1 ) and ( pycor >= y1 ) and ( pycor <= y2 )]) ] [ ; luam patch-urile intre x1 si x2 if x1 > x2 [ let temp x1 set x1 x2 set x2 temp ] set cale ( patches with [( pycor >= y1 - latime ) and ( pycor <= y1 ) and ( pxcor >= x1 ) and ( pxcor <= x2 )]) ] let construit 0 if caz = "strada" [ ask cale [ set pcolor ( culoare-sosea ) set nivel 0 set tip "sosea" set benzi ( ( latime + 1 ) / 2 ) set safe true ] set construit 1 ] if caz = "trotuar" [ ask cale [ set pcolor ( culoare-trotuar ) set nivel 0 set tip "trotuar" set benzi ( ( latime + 1 ) / 2 ) set safe true ] set construit 1 ] if construit = 0 [ show "!Primul parametru trebuie sa fie ori <> ori < >!" ] ] [ show "!Un drum poate fi construit doar pe o abscisa sau ordonata!" ] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;SITUATII CRITICE ;; Gestiunea situatiilor critice ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;activeaza alarma;; to activeaza-alarma if ( quarantine = "A Random Building" ) [ let target-cladire random ( length cladiri - 6 ) ; se scad cele 6 cladiri speciale: aeroportul, gara perif, gara oras, centrala nucleara, barajul si hidrocentrala set target-cladire ( target-cladire + 3 ) ; se adauga 3 ca sa se sara aeroportul si garile. Nu se adauga 4 pentru ca ultima e centrala! seteaza-perimetru-cladire target-cladire ( one-of [tip] of item target-cladire cladiri ) show (word floor timer "s: The Building with the id " target-cladire " has been armed!" ) ] if ( quarantine = "The Airport" ) [ seteaza-perimetru-cladire ( one-of [id] of aeroport ) ( one-of [tip] of aeroport ) show (word floor timer "s: The Airport has been armed!" ) ] if ( quarantine = "The Railroad Station" ) [ seteaza-perimetru-cladire ( one-of [id] of gara-periferie ) ( one-of [tip] of gara-periferie ) show (word floor timer "s: The Railroad Station has been armed!" ) ] if ( quarantine = "The city Train Station" ) [ seteaza-perimetru-cladire ( one-of [id] of gara-oras ) ( one-of [tip] of gara-oras ) show (word floor timer "s: The city Train Station has been armed!" ) ] if ( quarantine = "The Nuclear Plant" ) [ seteaza-perimetru-cladire ( one-of [id] of centrala-nucleara ) ( one-of [tip] of centrala-nucleara ) show (word floor timer "s: The Nuclear Plant has been armed!" ) ] if ( quarantine = "The Hydro-electric Plant" ) [ seteaza-perimetru-cladire ( one-of [id] of hidrocentrala ) ( one-of [tip] of hidrocentrala ) show (word floor timer "s: The Hydro-electric Plant has been armed!" ) ] if ( quarantine = "The Hospital" ) [ seteaza-perimetru-cladire ( one-of [id] of spital ) ( one-of [tip] of spital ) show (word floor timer "s: The Hospital has been armed!" ) ] if ( quarantine = "The City" ) [ let cladiri-oras ( length cladiri - 3 ) let cladire-curenta 2 user-message ( "Quarantining the City should take longer because of the large number of buildings.\nPlease be patient and refraim from issuing any other commands until you receive the confirmation notice!\n\nThe button will remain pressed during the command's execution." ) ;user-message ( "Armarea orasului va dura datorita numarului mare de cladiri.\nNu alegeti alta comanda pana nu primiti mesajul de confirmare!\n\nButonul va fi apasat cat timp se executa comanda." ) show (word "Quarantining the City:") while [ cladire-curenta < cladiri-oras ] [ seteaza-perimetru-cladire cladire-curenta ( one-of [tip] of item cladire-curenta cladiri ) set cladire-curenta ( cladire-curenta + 1 ) show (word floor ( ( cladire-curenta / cladiri-oras ) * 100 ) "% quarantined" ) ] show (word floor timer "s: The City has been completely quarantined!!! Evacuation has starded!") ] if ( quarantine = "Everything" ) [ let cladiri-oras ( length cladiri ) let cladire-curenta 0 user-message ( "Quarantining Everything should take longer because of the large number of buildings.\nPlease be patient and refraim from issuing any other commands until you receive the confirmation notice!\n\nThe button will remain pressed during the command's execution." ) ;user-message ( "Armarea LUMII va dura datorita numarului mare de cladiri.\nNu alegeti alta comanda pana nu primiti mesajul de confirmare!\n\nButonul va fi apasat cat timp se executa comanda." ) show (word "Quarantining every building present in the World Model:") while [ cladire-curenta < cladiri-oras ] [ seteaza-perimetru-cladire cladire-curenta ( one-of [tip] of item cladire-curenta cladiri ) set cladire-curenta ( cladire-curenta + 1 ) show (word floor ( ( cladire-curenta / cladiri-oras ) * 100 ) "% quarantined" ) ] show (word floor timer "s: Every building has been quarantined!") ] ; update pt senzori: actualizeaza-monitorizarea end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;seteaza perimetru cladire;; to seteaza-perimetru-cladire [ id-cladire-tinta tip-cladire ] ask patches with [ id = id-cladire-tinta and ( tip = tip-cladire ) ] [ ask patches at-points [[ 3 3 ][ -3 -3 ][ 3 -3 ][ -3 3 ]] with [ tip = "sosea" or tip = "trotuar" ] ; colturile [ ifelse ( tip = "sosea" ) [ set pcolor red ] [ set pcolor pink ] set safe false ask oameni-here [ set color 25 ] ;portocaliu => echipaj interventie! ] ask patches with [ distance myself < 4 and ( tip = "sosea" or tip = "trotuar" )] [ ifelse ( tip = "sosea" ) [ set pcolor red ] [ set pcolor pink ] set safe false ask oameni-here [ set color 25 ] ; portocaliu => echipaj interventie! ] ] ; actualizeaza senzor ask senzori with [ eveniment-urmarit = "quarantine" and cladire-id = id-cladire-tinta ] [ set intensitate 1 ] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;INTERFATA ;; INTERFATA: ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;adauga butoane;; to adauga-butoane [ start-x-butoane start-y-butoane X-butoane Y-butoane dim-butoane spatiu-butoane id-butoane ] let i 0 let dim dim-butoane - 1 ; corectie ! let spatiu spatiu-butoane + 1 ; corectie ! while [ i < X-butoane ] [ ; fiecare rand in parte let j 0 while [ j < Y-butoane ] [ ; fiecare buton in parte let buton ( patches with [ (pxcor <= ( start-x-butoane - ( j * dim )) and pxcor >= ( start-x-butoane - ( ( j + 1 ) * dim ))) and (pycor <= ( start-y-butoane - ( i * dim )) and pycor >= ( start-y-butoane - ( ( i + 1 ) * dim ))) ] ) ask buton [ set pcolor red set nivel 1 set tip "interfata" set id id-butoane ] set butoane lput buton butoane set id-butoane ( id-butoane + 1 ) set j ( j + 1 ) set start-x-butoane ( start-x-butoane - spatiu ) ] set i ( i + 1 ) set start-y-butoane ( start-y-butoane - spatiu) set start-x-butoane ( start-x-butoane + ( Y-butoane * spatiu )) ] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;adauga elemente de monitorizare;; to adauga-elemente-monitorizare [ start-x-em start-y-em X-em Y-em dim-em spatiu-em cladire-parinte nume-cladire-parinte stari-urmarite ] ; stari-urmarite este o lista cu starile, in ordine let i 0 set dim-em dim-em - 1 ; corectie ! let spatiu spatiu-em + 1 ; corectie ! let id-em length elemente-afisare ; actualizare id curent ask patch ( start-x-em + 1 ) ( start-y-em + 3 ) [ set plabel nume-cladire-parinte set plabel-color black ] while [ i < X-em ] [ ; fiecare rand in parte let j 0 while [ j < Y-em ] [ ; fiecare buton in parte let element-monitorizare ( patches with [ (pxcor <= ( start-x-em - ( j * dim-em )) and pxcor >= ( start-x-em - ( ( j + 1 ) * dim-em ))) and (pycor <= ( start-y-em - ( i * dim-em )) and pycor >= ( start-y-em - ( ( i + 1 ) * dim-em ))) ] ) ask element-monitorizare [ set pcolor green set nivel 1 set tip "interfata" set id id-em set stare ( item ( i * Y-em + j ) stari-urmarite ) set id-cladire cladire-parinte ] set elemente-afisare lput element-monitorizare elemente-afisare set id-em ( id-em + 1 ) set j ( j + 1 ) set start-x-em ( start-x-em - spatiu ) ; adaugare label ask element-monitorizare with [ ( pycor = (([pycor] of min-one-of element-monitorizare [pycor]) + 1 ) ) and ( pxcor = [pxcor] of min-one-of element-monitorizare [pxcor] ) ] [ let eveniment stare ask patch-at-heading-and-distance -90 ( 2 ) [ set plabel eveniment set plabel-color black ] ] ] set i ( i + 1 ) set start-y-em ( start-y-em - spatiu) set start-x-em ( start-x-em + ( Y-em * spatiu )) ] end to adauga-senzori-monitorizare [ cladire-parinte stari-urmarite praguri ] let id-num length senzori-monitorizare let index-prag 0 foreach stari-urmarite [ let target-building item cladire-parinte cladiri create-senzori 1 [ set hidden? true move-to one-of target-building with [ count turtles-here < 1 ] set id-senzor id-num set ( id-num ) ( id-num + 1 ) set eveniment-urmarit ( ? ) set cladire-id ( cladire-parinte ) set intensitate 0 set prag item index-prag praguri set color ( pcolor + 20 ) set senzori-monitorizare lput ( self ) senzori-monitorizare set index-prag ( index-prag + 1 ) ] ] ; adauga id-ul cladirea in lista set cladiri-monitorizate lput ( item cladire-parinte cladiri ) cladiri-monitorizate end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;RUNTIME ;; Slowmotion si teste: ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;incetineste tickuri;; to slow-down-time wait 0.2 end to-report afiseaza-timp-rulare ifelse ( ticks > last-tick-running ) [ set ( timer-running ) ( timer-running + ( timer - timer-dummy ) ) set last-tick-running ticks set timer-dummy timer ;show "ON" ] [ set timer-dummy timer ;show "OFF" ] report (word floor ( timer-running / 3600 ) " hours, " floor ( timer-running / 60 ) " minutes and " floor ( timer-running mod 60 ) " seconds ") ;report (word floor ( timer / 3600 ) " ore, " floor ( timer / 60 ) " minute si " floor ( timer mod 60 ) " secunde ") end to-report masini-in-oras report (word "There are " masini-plotate " vehicles in the City" ) end to test-iduri-cladiri let maxt length cladiri let t 0 while [ t < maxt ] [ print (word "Building " t ": " mean [id] of item t cladiri ) set t ( t + 1) ] end
There is only one version of this model, created over 9 years ago by George-Alexandru Serea.
Attached files
File | Type | Description | Last updated | |
---|---|---|---|---|
_globals.nls | data | initialization file needed for the simulation!!! | over 9 years ago, by George-Alexandru Serea | Download |

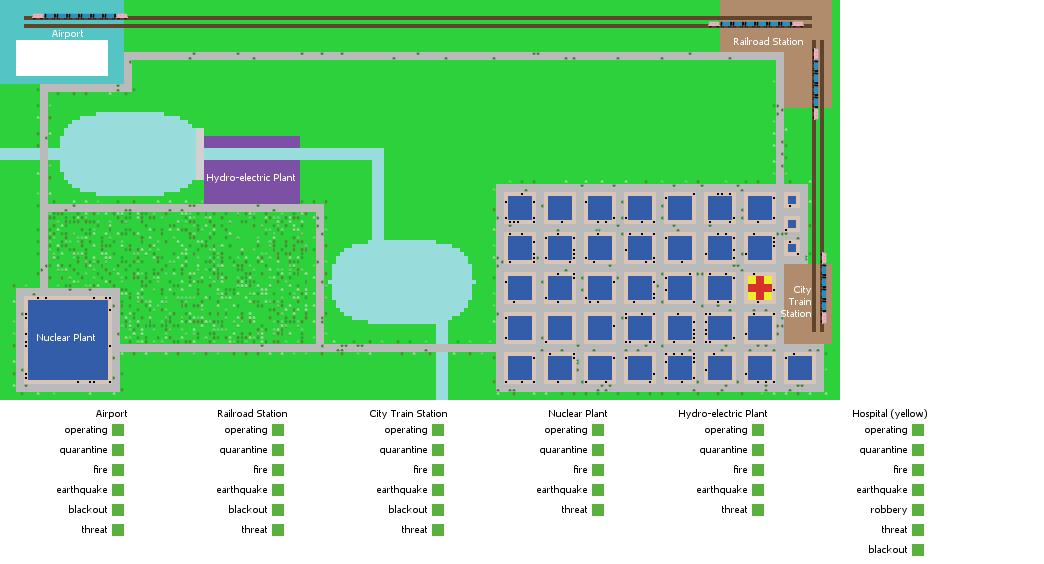

CitySCAPE Critical Systems.png | preview | Preview for 'CitySCAPE Critical Systems' | over 9 years ago, by George-Alexandru Serea | Download |
