Redwood Forest

4 collaborators

Trevor Cickovski (Author)

Elisabeth Thompson (Author)

Dante Sclafani (Author)

Zachary Zielinski (Author)

WHAT IS IT?

(a general understanding of what the model is trying to show or explain)

HOW IT WORKS

(what rules the agents use to create the overall behavior of the model)

HOW TO USE IT

(how to use the model, including a description of each of the items in the Interface tab)

THINGS TO NOTICE

(suggested things for the user to notice while running the model)

THINGS TO TRY

(suggested things for the user to try to do (move sliders, switches, etc.) with the model)

EXTENDING THE MODEL

(suggested things to add or change in the Code tab to make the model more complicated, detailed, accurate, etc.)

NETLOGO FEATURES

(interesting or unusual features of NetLogo that the model uses, particularly in the Code tab; or where workarounds were needed for missing features)

RELATED MODELS

(models in the NetLogo Models Library and elsewhere which are of related interest)

CREDITS AND REFERENCES

(a reference to the model's URL on the web if it has one, as well as any other necessary credits, citations, and links)

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [

  price-current
  price-1
  price-2
  price-3
  price-4
  price-5
  price-6

 tickH
 tickM

 profit
   ]

patches-own [tree]
turtles-own [  ]

to setup
  ca
  ask patches [set pcolor 35 ]
  ask patches with [(pxcor + pycor) mod 2 = 0] [set pcolor green set tree true]
  set-patch-size 4


crt 1
[ set size 3
 set heading 90
  setxy 15 165
  set color red
set shape "X"]


  let V (( high-price - low-price ) / 12 ) ^ 2
  let standarddev V ^ 2
set price-current random-normal average-price standarddev
set price-1 random-normal average-price standarddev
set price-2 random-normal average-price standarddev
set price-3 random-normal average-price standarddev
set price-4 random-normal average-price standarddev
set price-5 random-normal average-price standarddev
set price-6 random-normal average-price standarddev



  reset-ticks

ifelse price-current > price-per-tree [set tickH ticks]
 [ifelse price-1 > price-per-tree [set tickH ticks + 1]
 [ifelse price-2 > price-per-tree [set tickH ticks + 2]
   [ifelse price-3 > price-per-tree [set tickH ticks + 3]
     [ifelse price-4 > price-per-tree [set tickH ticks + 4]
       [ifelse price-5 > price-per-tree [ set tickH ticks + 5]
         [ifelse price-6 > price-per-tree [ set tickH ticks + 6] [set tickH ticks + 7]]]]]]]

  ifelse price-current < price-per-tree and ticks > tickH [set tickM ticks]
[ifelse price-1 < price-per-tree and ticks + 1 > tickH [set tickM ticks + 1]
 [ifelse price-2 < price-per-tree and ticks + 2 > tickH [set tickM ticks + 2]
   [ifelse price-3 < price-per-tree and ticks + 3 > tickH[set tickM ticks + 3]
     [ifelse price-4 < price-per-tree and ticks + 4 > tickH [set tickM ticks + 4]
       [ifelse price-5 < price-per-tree and ticks + 5 > tickH [ set tickM ticks + 5]
         [ifelse price-6 < price-per-tree and ticks + 6 > tickH [ set tickM ticks + 6] [set tickM ticks + 7 ]]]]]]]
end

to go

 let V (( high-price - low-price ) / 12 ) ^ 2
  let standarddev V ^ 2



 if ticks = tickH [ask turtles [harvest]]
 if [xcor] of turtle 0 + 30 > max-pxcor and [ycor] of turtle 0 - 30 < 0 [stop]
 if ticks = tickM [ask turtles [move]]



 ifelse price-current > price-per-tree [set tickH ticks]
 [ifelse price-1 > price-per-tree [set tickH ticks + 1]
 [ifelse price-2 > price-per-tree [set tickH ticks + 2]
   [ifelse price-3 > price-per-tree [set tickH ticks + 3]
     [ifelse price-4 > price-per-tree [set tickH ticks + 4]
       [ifelse price-5 > price-per-tree [ set tickH ticks + 5]
         [ifelse price-6 > price-per-tree [ set tickH ticks + 6] [set tickH ticks + 7]]]]]]]

 ifelse price-current < price-per-tree and ticks > tickH [set tickM ticks]
[ifelse price-1 < price-per-tree and ticks + 1 > tickH [set tickM ticks + 1]
 [ifelse price-2 < price-per-tree and ticks + 2 > tickH [set tickM ticks + 2]
   [ifelse price-3 < price-per-tree and ticks + 3 > tickH[set tickM ticks + 3]
     [ifelse price-4 < price-per-tree and ticks + 4 > tickH [set tickM ticks + 4]
       [ifelse price-5 < price-per-tree and ticks + 5 > tickH [ set tickM ticks + 5]
         [ifelse price-6 < price-per-tree and ticks + 6 > tickH [ set tickM ticks + 6] [set tickM ticks + 7 ]]]]]]]


set price-current price-1
set price-1 price-2
set price-2 price-3
set price-3 price-4
set price-4 price-5
set price-5 price-6
set price-6 random-normal average-price standarddev

 plot-pen-down
 plotxy ticks profit


tick
end

to move
 if xcor + 30 > max-pxcor and pycor - 30 < 0 [stop]
ifelse xcor + 30 > max-pxcor [set xcor 15 set ycor ycor - 30] [ set xcor xcor + 30]

set profit profit - moving-cost
end

to harvest

  let harvest-rate (1 - ( retention))
  let turtlex xcor
  let turtley ycor
  let harvestable-trees patches with
  [ abs (turtlex - pxcor) <= 15 and abs (turtley - pycor) <= 15 and  tree = true ]
    let num-harvestable-trees (count harvestable-trees)
  let max-num-cut floor (harvest-rate * num-harvestable-trees)

  ask n-of max-num-cut harvestable-trees  [set pcolor brown]


  let V (( high-price - low-price ) / 12 ) ^ 2
  let standarddev V ^ 2

  set profit max-num-cut * (price-current - price-per-tree)
end

There is only one version of this model, created over 10 years ago by Trevor Cickovski.

Attached files

File	Type	Description	Last updated

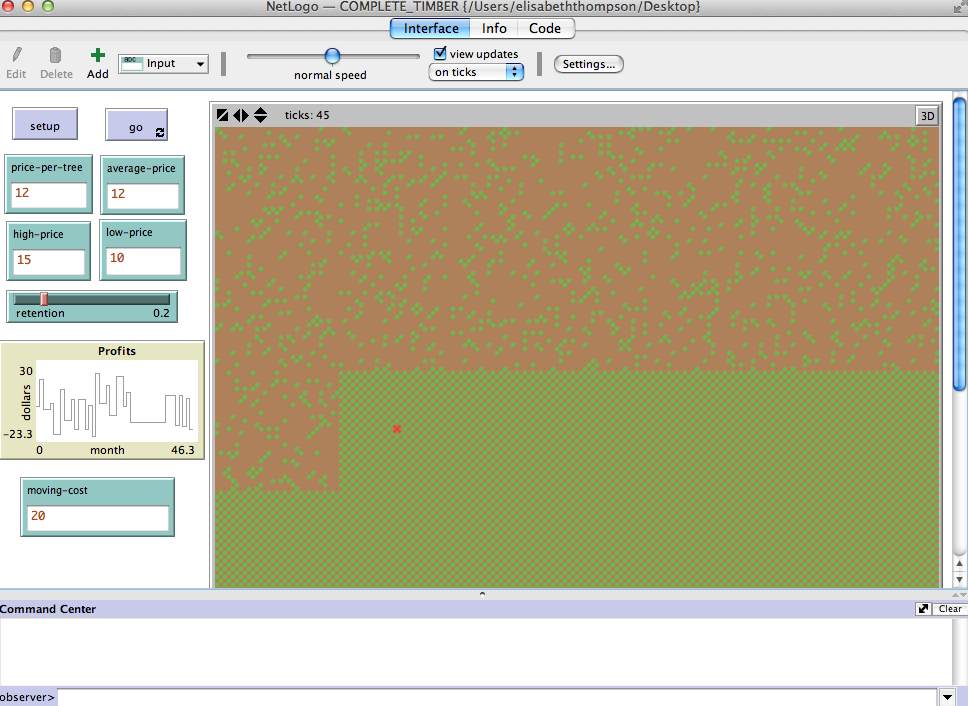

Redwood Forest.png	preview	Preview for 'Redwood Forest'	over 10 years ago, by Trevor Cickovski	Download
Timber-ODD.docx	word	ODD Documentation For Redwood Forest	over 10 years ago, by Trevor Cickovski	Download

This model does not have any ancestors.

This model does not have any descendants.
