Food-web Algerian desert

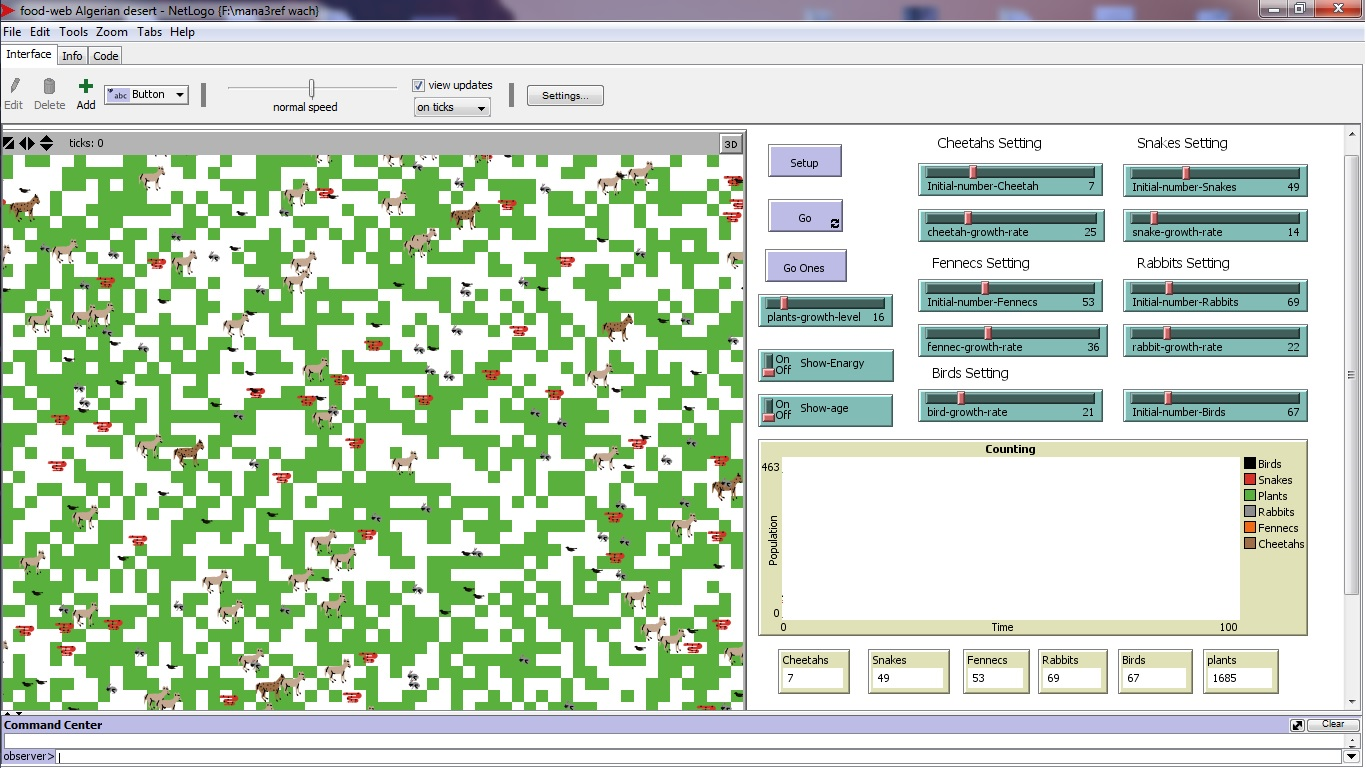

Food-web Algerian desert preview image

1 collaborator

Revetement-adhesif-bois-brun-marron-0-67-x-2-m Amel Kouidrat (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by the author
Model was written in NetLogo 5.1.0 • Viewed 757 times • Downloaded 8 times • Run 0 times
Download the 'Food-web Algerian desert' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


## WHAT IS IT?

This model explores the stability of predator-prey ecosystems. Such a system is called unstable if it tends to result in extinction for one or more species involved. In contrast, a system is stable if it tends to maintain itself over time, despite fluctuations in population sizes.

## HOW IT WORKS

## HOW TO USE IT

1. Adjust the slider parameters or use the default settings.

2. Press the SETUP button.

3. Press the GO button to begin the simulation.

4. Look at the monitors to see the current population sizes

5. Look at the POPULATIONS plot to watch the populations fluctuate over time

## THINGS TO NOTICE

## THINGS TO TRY

Try adjusting the parameters under various settings. How sensitive is the stability of the model to the particular parameters?

Can you find any parameters that generate a stable ecosystem

## NETLOGO FEATURES

Note the use of breeds to model five different kinds of "turtles": Cheetah, Snake, Fennec, Bird, Rabbits. Note the use of patches to model Plants.

## References

1.aggoun, A. (n.d.). حماية البيئة والتراث. Retrieved from http://tioutwaha1.blogspot.com/2001/02/blog-post_7732.html

2.Boulder, U. o. (2015). Teach. Retrieved from https://www.teachengineering.org/view_activity.php?url=collection/cub_/activities/cub_bio/cub_bio_lesson03_activity1.xml

3.Carwardine, M. (2008). Animal Records. New York.

4.Dave, J. A. (n.d.). Retrieved from http://www.tigerhomes.org/animal/cheetah-facts.cfm

5.Eugenio Picano, E. V. (2014). The appropriate and justified use of medical radiation in cardiovascular imaging: a position document of the ESC Associations of Cardiovascular Imaging, Percutaneous Cardiovascular Interventions and Electrophysiology. European Heart Journal.

6.Ganora. (2015). Research of the African Rock Pipit. Retrieved from http://www.ganora.co.za/page/african_rock_pipit_klipkoester

7.Kostas Karamanos, A. G. (2012). Ecosystem Food-webs as Dynamic Systems:Educating Undergraduate Teachers in Conceptualizing Aspects of Food-webs’. Advances in Systems Science and Application, 49-68.

8.Krisnain, K. B. (n.d.). Slide Share. Retrieved from http://fr.slideshare.net/KesavartiniiBalaKrisnain/simulation-powerpoint-lecture-notes

9.Miscellany, u. (2011). Bird watching. Retrieved from http://sbpoley.home.xs4all.nl/ukrb/age.html

10.Oxford. (n.d.). Oxford dictionaries. Retrieved from http://www.oxforddictionaries.com/

11.PHET. (n.d.). Interactive simulation. Retrieved from https://phet.colorado.edu/en/simulation/balloons

12.Rezhdo, A. (2011). Buffon’s Needle Problem.

13.SIMULATION AND MODELING. (2013).

14.Stafford, P. (1986). Pythons and Boas. Neptune City, New Jersey, USA: T.F.H. Publications, Inc. Ltd.

15.Volunteers, R. G. (2005). Fennec Fox.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [plants cheetahs-nb snakes-nb fennecs-nb rabbits-nb birds-nb ]  ;; keep track all inividuals

breed [cheetahs cheetah]
breed [snakes snake]
breed [fennecs fennec]
breed [rabbits rabbit]
breed [birds bird]
turtles-own [energy age]
patches-own [countdown]


;;@@@@@@@@@@@@@@@ TO SETUP @@@@@@@@@@@@@@@@@@@@@@@@@@

to setup
  clear-all

    ask patches [
      set pcolor one-of [green white]
      if pcolor = green
        [ set countdown plants-growth-level ]
    ]

  ;;@@@@@@@@@@@@@@@@@@@@@@@@@@@ breed shapes @@@@@@@@@@@@@@@@@@@@@@@@@@@@@
   set-default-shape cheetahs "cheetah"
  create-cheetahs Initial-number-Cheetah  ;; create cheetah then initialize their variables
  [
    set color brown
    set size 3
    set label-color blue - 5
    set energy random 100
    set age random 100

    setxy random-xcor random-ycor
  ]

  ;;@@@@@@@@@
  set-default-shape snakes "snake"
  create-snakes Initial-number-Snakes  ;; create snakes, then initialize their variables
  [
    set color red
    set size 2.4
    set energy random 100
    set age random 60
    setxy random-xcor random-ycor
  ]
  ;;@@@@@@@@@@@@@@@@@@@@
  set-default-shape fennecs "fennec"
   create-fennecs Initial-number-Fennecs  ;; create fennec, then initialize their variables
  [
    set color brown + 2
    set size 2.5
    set label-color blue - 2
    set energy random 100
    set age random 10
    setxy random-xcor random-ycor
  ]
  ;;@@@@@@@@@@@@@@@@@
  set-default-shape rabbits "rabbit"
   create-rabbits Initial-number-Rabbits  ;; create  rabbit, then initialize their variables
  [
    set color grey
    set size 1
    set label-color blue - 2
    set energy random 60
    set age random 10
    setxy random-xcor random-ycor
  ]


   ;;@@@@@@@@@@@@@@@@@
  set-default-shape birds "bird side"
   create-birds Initial-number-Birds  ;; create bird, then initialize their variables
  [
    set color black
    set size 1
    set label-color blue - 2
    set energy random 50
    set age random 10
    setxy random-xcor random-ycor
  ]




  ;;@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@

  display-labels
  set plants count patches with [pcolor = green]
  reset-ticks
end    ;;@@@@@@@@@@@@@@@END TO SETUP @@@@@@@@@@@@@@@@@@@@@@@@@@

to go
   if not any? turtles [ stop ]
  go1

  ask patches [ grow-plants ]
  set plants count patches with [pcolor = green]

  display-labels
  tick ; time move one month
end
;;@@@@@@@@@@@@@@@@@@@@@ TO  GO   @@@@@@@@@@@@@@@@@@@@@@@@@@@

to go1

;;@@@@@@@@@@@@@@@@@@@@@@@@
  ask cheetahs [
    move
    set age age + 1  ;;growing
    set energy energy - 1  ;; deduct energy
    catch-fennecs
    catch-rabbits
    catch-snakes
    reproduce-cheetahs
    cheetah-death

  ]
;;@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
  ask fennecs [
    move
    set age age + 1
    set energy energy - 1  ;; deduct energy
    eat-plans
    catch-birds
    catch-rabbits
    fennecs-death
   ;; reproduce-fennecs

  ]

 ;;@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
  ask snakes [
    move
    set age age + 1
    set energy energy - 1  ;; deduct energy
    catch-birds
    catch-rabbits
    catch-fennecs
    snakes-death
    reproduce-snakes
  ]


 ;;@@@ @@@@@@@@@@@@@@@@@@

   ask rabbits [
    move
    set age age + 1
    set energy energy - 1  ;; deduct energy
    eat-plans
    rabbits-death
    reproduce-rabbits
  ]

 ;;@@@@@@@@@@@@@@@@@@@@@@@

  ask birds [
    move
    set age age + 1
    set energy energy - 1  ;; deduct energy
    eat-plans
    birds-death
    reproduce-birds
  ]
 ;;@@@@@@@@@@@@@@@@@@@@@@@
end
;;@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@

to move  ;; turtle procedure
  rt random 50
  lt random 50
  fd 1
end

to eat-plans
  ;; animals eat plants color changes
  if pcolor = green [
    set pcolor green + 2
    set energy energy + 1   ;; To be verified@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
  ]
end

to reproduce-fennecs

  if random-float 100 < fennec-growth-rate
   [
    set energy (energy / 2)
    hatch 1 [ rt random-float 360 fd 1  set age 0 ]

   ]
end

to reproduce-snakes
 if random-float 100 < snake-growth-rate
   [
    set energy (energy / 2)
    hatch 1 [ rt random-float 360 fd 1 set age 0 ]

   ]
end

to reproduce-birds
 if random-float 100 < bird-growth-rate
   [
    set energy (energy / 3)
    hatch 1 [ rt random-float 360 fd 1 set age 0 ]

   ]
end

to reproduce-cheetahs
if random-float 100 < cheetah-growth-rate
   [
    set energy (energy / 2)
    hatch 1 [ rt random-float 360 fd 1 set age 0  ]

   ]
end

to reproduce-rabbits
 if random-float 100 < rabbit-growth-rate
   [
    set energy (energy / 2)
    hatch 1 [ rt random-float 360 fd 1 ]

   ]
end

;;@@@ hunting  process

to catch-rabbits
  let prey one-of rabbits-here                    ;; grab
  if prey != nobody                             ;;  we get one
    [ ask prey [ die ]                          ;; kill it
      set energy energy + 3 ];;  To be verified@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
end

;;@@@@@@

to catch-fennecs
  let prey one-of fennecs-here                    ;; chatch a fennec
  if prey != nobody                             ;; if it get one,
    [ ask prey [ die ]                          ;; kill it
      set energy energy + 4 ];;  To be verified@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
end

;;@@@@@

to catch-birds
  let prey one-of birds-here                    ;; grab bird
  if prey != nobody                             ;;  if it get one
    [ ask prey [ die ]                          ;; kill it
      set energy energy + 3 ];;  To be verified@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
end

;;@@@@@

;;@@@@@@@@@@@@@@@@@@@@@@@@@@@ catch-bird@@@@@@@@@@@@@@@@@@@@@@@

to catch-snakes
let prey one-of snakes-here
if prey != nobody
    [ ask prey [ die ]
      set energy energy + 5 ]
end
;;@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@

to cheetah-death
  if (energy <= 0)
   [ die ]
  if (age >= 132) ;;normal cheetah life time 11 years in months  132
  [ die ]
end
;;@@@@

to fennecs-death
  if (energy < 0) or (age >= 120) ;; fennec livespant to 10 years
 [ die ]
end

to birds-death
  if (energy < 0) or  (age >= 36) ;average life 3 years
  [ die ]
end

to rabbits-death
  if (energy < 0)
  [ die ]
  if (age >= 90)
  [ die ]
end

to snakes-death
  if (energy < 0) or (age >= 132) ; lifespan 13 years
   [ die ]
end
;to death

 ;; ask snakes [
   ;; let limit count turtles-here
;;    let a ( 0.95 * snakes-nb )
  ;;  ask n-of min [ 5 limit] turtles-here [ die ] ]
  ;
 ; ask patches [
;  repeat 5 [
  ;  if any? turtles-here [
;      ask one-of turtles-here [

;      ]
;    ]
;  ]
;]
;end

to grow-plants  ;
  if pcolor = (green + 2) [
    ifelse countdown > 90
      [ set pcolor green
        set countdown plants-growth-level ]
      [ set countdown countdown + 1 ]
  ]
end

to display-labels
  set cheetahs-nb count cheetahs
  set birds-nb count birds
  set snakes-nb count snakes
  set fennecs-nb count fennecs
  set rabbits-nb count rabbits
  ask turtles [ set label "" ]
  if Show-Enargy [
    ask birds [ set label round energy ]
    ask rabbits [ set label round energy ]
    ask fennecs [ set label round energy ]
    ask snakes [ set label round energy ]
    ask cheetahs [ set label round energy ]
  ]

  if Show-age [
    ask birds [ set label round age ]
    ask rabbits [ set label round age ]
    ask fennecs [ set label round age ]
    ask snakes [ set label round age ]
    ask cheetahs [ set label round age ]
  ]
end




;;@@@ created by Kouidrat Amel @@@

There is only one version of this model, created about 3 years ago by Amel Kouidrat.

Attached files

File Type Description Last updated
Food-web Algerian desert.png preview Preview for 'Food-web Algerian desert' about 3 years ago, by Amel Kouidrat Download

This model does not have any ancestors.

This model does not have any descendants.
