Crowded Station

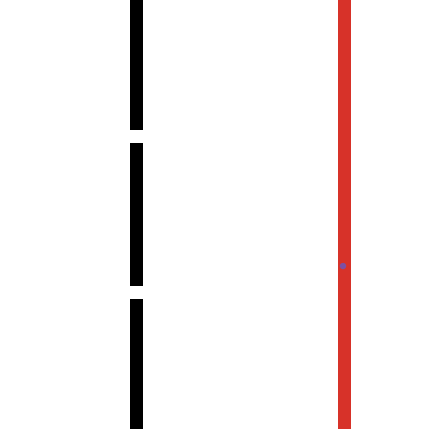

Crowded Station preview image

1 collaborator

Default-person Ye Xue (Author)

Tags

(This model has yet to be categorized with any tags)

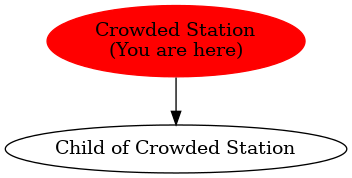

Parent of 1 model: Child of Crowded Station
Model group MAM-2016 | Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.0-M5 • Viewed 614 times • Downloaded 60 times • Run 0 times
Download the 'Crowded Station' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

extensions [ls]

globals
[
  walls
  roads
  train
  stop-line
  stair-y-list
  stair-x
  stair-end-x
  train-x
  total-time
  total-wait-time
  total-number
  total-time-hour
  total-wait-time-hour
  total-number-hour
  neural-net-setted?
  escalator?
  elevator?
  ;escalator-speed
  ;elevator-speed
  ;real-data?
  real-flow-list
]

turtles-own
[
  entrance-path-found?
  train-path-found?
  dest-x
  dest-y
  speed
  wait-time
  on-train-time
  density-right ; density on the right side of it
  density-left  ; density on the left side of it
  density-ahead ; density in front of it
  ahead-left-bound  ; ycor of begining of left side area
  ahead-right-bound ; ycor of begining of right side area
]

patches-own
[
  dist-to-entrance
]

;;;;;;;;;;;;;;;;;;;;;
;; SETUP PROCEDURE ;;
;;;;;;;;;;;;;;;;;;;;;

to setup
  clear-all
  make-station
  make-train
  set total-time 0
  set total-wait-time 0
  set total-number 1
  set total-time-hour 0
  set total-wait-time-hour 0
  set total-number-hour 1
  ifelse way-to-platform = "escalators"
  [ escalators ]
  [ if way-to-platform = "elevators"
    [ elevators ]
  ]
  set real-flow-list (list 0 0 0 0 0.008 0.008 0.008 0.15 0.416 0.75 0.83 0.83 0.75 0.75 0.75 0.79 0.916 1 0.916 0.75 0.5 0.16 0 0)
  reset-ticks
end

;; setup with standard inputs (designed to simulate settings in reality)

to standard-setup
  clear-all

  ifelse way-to-platform = "stairs"
  [ set width 3 ]
  [ set width 2 ]
  set stair-spacing 16

  set height-of-floor 6
  set width-of-platform 9

  make-station
  make-train
  set total-time 0
  set total-wait-time 0
  set total-number 1
  set total-time-hour 0
  set total-wait-time-hour 0
  set total-number-hour 1

  ifelse way-to-platform = "escalators"
  [ escalators ]
  [ if way-to-platform = "elevators"
    [ elevators ]
  ]

  set turtle-base-speed 1
  set escalator-speed 2
  set elevator-speed 2

  set flow-rate 3
  set real-data? true
  ; 3 people per tick == 1
  set real-flow-list (list 0 0 0 0 0.008 0.008 0.008 0.15 0.416 0.75 0.83 0.83 0.75 0.75 0.75 0.79 0.916 1 0.916 0.75 0.5 0.16 0 0)

  set train-interval 20
  set train-stop-time 5

  reset-ticks
end

;; setup neural net model

to setup-neural-net
  if neural-net-setted? = 0 and neural-net-on? [
    ls:reset
    ls:load-headless-model "My Neural Net.nlogo"
    ls:ask ls:models [
      setup
      repeat 1000 [ train ]
    ]
    set neural-net-setted? true
  ]
end

;; create whole structure of the station

to make-station
  ;; walking area are white
  ask patches [
    set pcolor white
  ]

  let y stair-spacing / 2
  set stair-y-list []

  set stair-x -6
  set stair-end-x stair-x + height-of-floor

  ;; create walls
  ifelse width = 1
  [

    set walls patches with [
      pxcor >= stair-x and pxcor <= stair-end-x and pycor != y and pycor != (0 - y)
    ]
    set stair-y-list lput y stair-y-list
    set stair-y-list lput (0 - y) stair-y-list
  ]
  [
    ifelse width = 2
    [
      set walls patches with [
        pxcor >= stair-x and pxcor <= stair-end-x and pycor != y and pycor != (y + 1) and pycor != (0 - y) and pycor != (-1 - y)
      ]
      set stair-y-list lput y stair-y-list
      set stair-y-list lput (y + 1) stair-y-list
      set stair-y-list lput (0 - y) stair-y-list
      set stair-y-list lput (-1 - y) stair-y-list
    ]
    [
      set walls patches with [
        pxcor >= stair-x and pxcor <= stair-end-x and pycor != y and pycor != (y + 1) and pycor != (y + 2) and pycor != (0 - y) and pycor != (-1 - y) and pycor != (-2 - y)
      ]
      set stair-y-list lput y stair-y-list
      set stair-y-list lput (y + 1) stair-y-list
      set stair-y-list lput (y + 2) stair-y-list
      set stair-y-list lput (0 - y) stair-y-list
      set stair-y-list lput (-1 - y) stair-y-list
      set stair-y-list lput (-2 - y) stair-y-list
    ]
  ]

  ask walls [
    set pcolor black
    set dist-to-entrance 1000
  ]
end

;; create train/tracks

to make-train
  set train-x stair-end-x + width-of-platform
  set train patches with [
    pxcor = train-x
  ]

  ask train [ set pcolor red ]
  set stop-line train-x - 2
end

;; set stair equipment to escalator

to escalators
  set escalator? true
  set elevator? false
end

;; set stair equipment to elevator

to elevators
  set elevator? true
  set escalator? false
end

;;;;;;;;;;;;;;;;;;;;;;
;;;; GO PROCEDURE ;;;;
;;;;;;;;;;;;;;;;;;;;;;

to go
  setup-neural-net
  create-passenger
  train-arrival
  boarding
  find-platform
  down-stairs
  find-train
  moving
  count-time
  recolor
  tick
end

;; create passengers based on real data or user inputs

to create-passenger
  ifelse real-data? = true
  [
    let percentage item ((ticks / 400) mod 24) real-flow-list
    if random-float 1 < percentage [
      create-turtle
    ]
  ]
  [ create-turtle ]
end

;; create trutles at specific locations

to create-turtle
  crt flow-rate [
    setxy random-float (stair-x - min-pxcor - 2) - max-pxcor one-of (list min-pycor max-pycor)
    set shape "circle"
    set size 0.7
    set color red + 3
    set entrance-path-found? false
    set train-path-found? false
    set speed random-float 1 + turtle-base-speed
    if any? other turtles-here [
      ask other turtles-here [ die ]
    ]
  ]
end

;; change color of train patches to show its arrival

to train-arrival
  ifelse ticks mod train-interval >= 0 and ticks mod train-interval <= train-stop-time
  [ ask train [ set pcolor green ] ]
  [ ask train [ set pcolor red ] ]
end

;; turtle procedure
;; detect obstacles in front of it
;; find new path if it can't move forward

to avoid-walls
  if not can-move? speed or [pcolor] of patch-ahead speed = black [
    find-nearest-patch
  ]
  if patch-ahead speed != nobody [
    ifelse not any? other turtles-on patch-ahead speed
    [ fd speed ]
    [
      set wait-time wait-time + 1
      move-to-neighbor
    ]
  ]
end

;; turtle procedure
;; get on the train, report time and die

to boarding
  ask turtles with [ xcor >= stop-line ] [
    if [ pcolor ] of one-of train = green [
      set total-time total-time + on-train-time
      set total-wait-time total-wait-time + wait-time
      set total-number total-number + 1

      set total-time-hour total-time-hour + on-train-time
      set total-wait-time-hour total-wait-time-hour + wait-time
      set total-number-hour total-number-hour + 1
      die
    ]
  ]
end

;; set destination of turtles outside the wall to platform

to find-platform
  ask turtles with [ pxcor < stair-x] [
    set dest-x stair-x
    set dest-y nearest-stair
    set entrance-path-found? true
    set train-path-found? false
  ]
end

;; go down by using stair equipment

to down-stairs
  ifelse escalator? = true
  [ use-escalator ]
  [ ifelse elevator? = true
    [ use-elevator ]
    [ use-stair ]
  ]
end

;; set destination of turtles on platform the train

to find-train
  ifelse neural-net-on?
  [
    ask turtles with [ train-path-found? = false and pxcor >= stair-end-x ] [
      set dest-x train-x
      calculate-ahead-bound
      calculate-density
      set dest-y best-car
      set speed random-float 1 + 1
      set train-path-found? true
    ]
  ]
  [
    ask turtles with [ train-path-found? = false and pxcor >= stair-end-x ] [
      set dest-x train-x
      set dest-y random-float (2 * max-pycor) - max-pycor
      set speed random-float 1 + 1
      set train-path-found? true
    ]
  ]
end

;; turtle procedure
;; moving towards destination

to moving
  ask turtles with [ entrance-path-found? = true or train-path-found? = true ] [
    ifelse xcor >= stair-x and xcor < stair-end-x and escalator? = true
    [ facexy dest-x dest-y fd speed ]
    [ if xcor < stop-line [
        facexy dest-x dest-y
        avoid-walls
      ]
    ]
  ]
end

;; update measurements

to count-time
  ask turtles [
    set on-train-time on-train-time + 1
  ]
  if (ticks mod 400) = 0 [
    set total-time-hour 0
    set total-wait-time-hour 0
    set total-number-hour 1
  ]
  ;ask turtles with [ wait-time > 50 ] [ die ]
end

;; update turtles' color

to recolor
  ask turtles [
    set color scale-color red (25 - wait-time) -10 30
  ]
end

;;;;;;;;;;;;;;;;;;;;;;;;;
;;; HELPER PROCEDURES ;;;
;;;;;;;;;;;;;;;;;;;;;;;;;

;; walk on stairs

to use-stair
  ask turtles with [ pxcor >= stair-x and pxcor < stair-end-x ] [
    set dest-x stair-end-x
    set dest-y pycor
    set train-path-found? false
  ]
end

;; stand on escalator

to use-escalator
  ask turtles with [ pxcor >= stair-x and pxcor < stair-end-x ] [
    set dest-x stair-end-x
    set dest-y pycor
    set train-path-found? false
    set speed escalator-speed
  ]
end

;; use elevator

to use-elevator
  ask turtles with [ pxcor >= stair-x and pxcor < stair-end-x ] [
    set dest-x stair-end-x
    set dest-y pycor
    set train-path-found? false
    ifelse ticks mod ((stair-end-x - stair-x) / elevator-speed * 2) = 0
    [ set speed (stair-end-x - stair-x) + 1 ]
    [ set speed 0 ]
  ]
end

;; reporter procedure
;; report the car that a turtle is going to board

to-report best-car
  ls:let i1 round density-left
  ls:let i2 round density-ahead
  ls:let i3 round density-right
  ls:ask ls:models [
    set input-1 i1
    set input-2 i2
    set input-3 i3
    test
  ]
  let choice first [ output ] ls:of ls:models
  ifelse choice = 0
  [ report random (max-pycor - ahead-left-bound) + ahead-left-bound ]
  [
    ifelse choice = 1
    [ report random (ahead-right-bound - min-pycor) + min-pycor ]
    [ report random (ahead-left-bound - ahead-right-bound) + ahead-right-bound ]
  ]
end

;; turtle procedure
;; set the bound the area that in front of it

to calculate-ahead-bound
  set ahead-left-bound ycor + ahead-range
  set ahead-right-bound ycor - ahead-range
  if ahead-left-bound > max-pycor [
    set ahead-left-bound max-pycor
  ]
  if ahead-right-bound < min-pycor [
    set ahead-right-bound min-pycor
  ]
end

;; turtle procedure
;; calculate density distribution of turtles ahead it

to calculate-density
  ifelse ahead-left-bound = max-pycor
  [ set density-left 1000 ]
  [ set density-left count turtles with [ ycor > ahead-left-bound and xcor >= [xcor] of myself ] / (max-pycor - ahead-left-bound) ]

  ifelse ahead-right-bound = min-pycor
  [ set density-right 1000 ]
  [ set density-right count turtles with [ ycor < ahead-right-bound and xcor >= [xcor] of myself ] / (ahead-right-bound - min-pycor) ]

  set density-ahead count turtles with [ ycor >= ahead-right-bound and pycor <= ahead-left-bound and xcor >= [xcor] of myself ] / (ahead-left-bound - ahead-right-bound + 1)
end

;; reporter procedure
;; report the nearest stair for a turtle

to-report nearest-stair
  let min-dist 1000
  let y 0
  foreach stair-y-list [
    let cur-dist distancexy stair-x ?
    if cur-dist < min-dist [
      set min-dist cur-dist
      set y ?
    ]
  ]
  report y
end

;; turtle procedure
;; find new nearest path to destination

to find-nearest-patch
  ask neighbors with [ pcolor != black ] [
    set dist-to-entrance distancexy [ dest-x ] of myself [ dest-y ] of myself
  ]
  let nearest-neighbor one-of min-n-of 1 neighbors [ dist-to-entrance ]
  facexy [pxcor] of nearest-neighbor [pycor] of nearest-neighbor
end

;; turtle procedure
;; move to one of neighors ahead a turtle

to move-to-neighbor
  ; allow move back
  ;let valid-neighbor one-of neighbors with [ pcolor != black and not any? other turtles-here ]

  ; never move back
  let valid-neighbor one-of neighbors with [ pcolor != black and not any? other turtles-here and (([xcor] of myself - pxcor ) * (pxcor - [dest-x] of myself) < 0) ]
  if valid-neighbor != nobody [
    move-to valid-neighbor
  ]
end

There are 6 versions of this model.

Uploaded by When Description Download
Ye Xue almost 8 years ago Final version Download this version
Ye Xue almost 8 years ago version 1.1 - new measure Download this version
Ye Xue almost 8 years ago version 1.0 Download this version
Ye Xue almost 8 years ago input different structures Download this version
Ye Xue almost 8 years ago First runnable model Download this version
Ye Xue almost 8 years ago Initial upload Download this version

Attached files

File Type Description Last updated
Crowded Station.png preview Preview for 'Crowded Station' almost 8 years ago, by Ye Xue Download
YeXue_May16.pdf pdf project progress almost 8 years ago, by Ye Xue Download
YeXue_May23.pdf pdf project progress almost 8 years ago, by Ye Xue Download
YeXue_May29.pdf pdf project progress almost 8 years ago, by Ye Xue Download
YeXue_May7.pdf pdf project progress almost 8 years ago, by Ye Xue Download

This model does not have any ancestors.

Children:

Graph of models related to 'Crowded Station'
