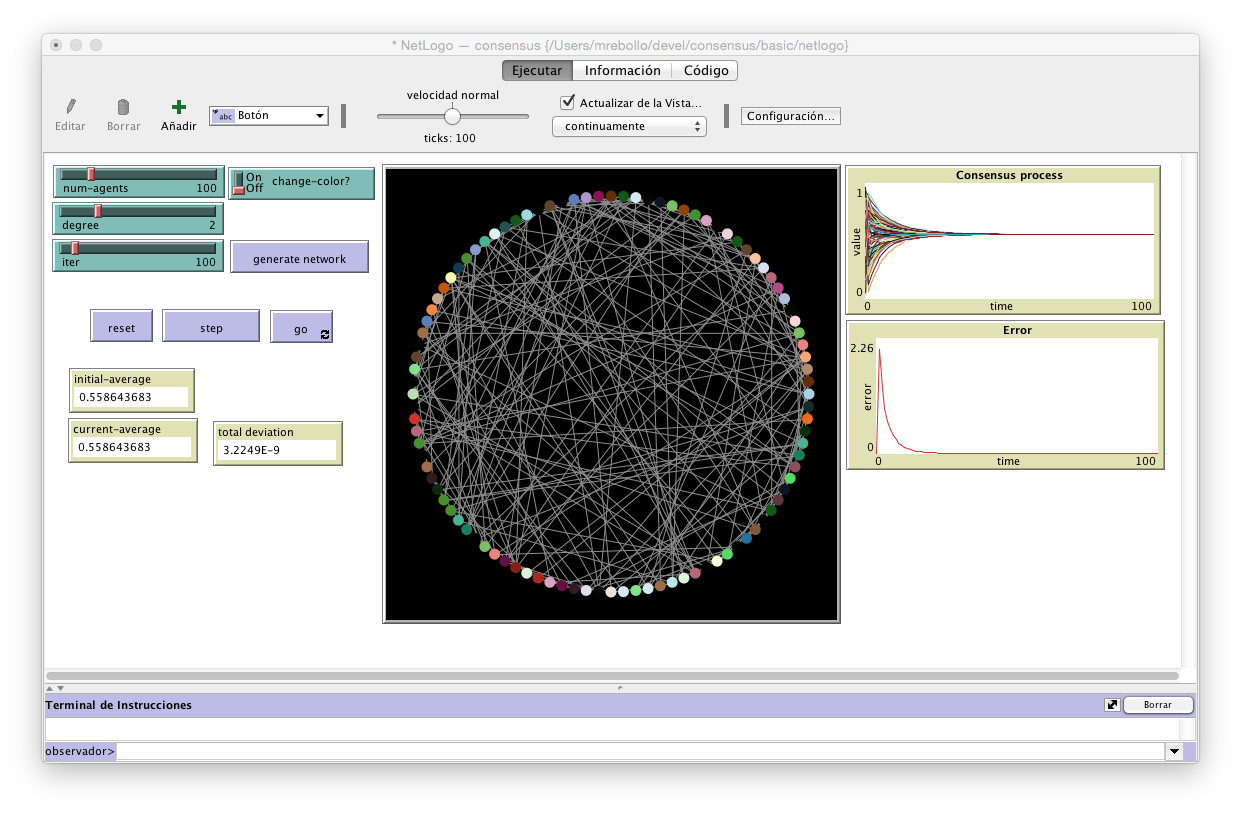

consensus preview image

1 collaborator

Miguel_rebollo Miguel Rebollo (Author)

Tags

agreement

Tagged by Miguel Rebollo almost 8 years ago

consensus

Tagged by Miguel Rebollo almost 8 years ago

gossip

Tagged by Miguel Rebollo almost 8 years ago

synchronization

Tagged by Miguel Rebollo almost 8 years ago

Model group Consensus at UPV | Visible to everyone | Changeable by the author
Model was written in NetLogo 6.0 • Viewed 435 times • Downloaded 24 times • Run 0 times
Download the 'consensus' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


WHAT IS IT?

A model of consensus network to agree in a the value of one variable

HOW IT WORKS

Each agent exchanges its value with its direct neighbor and updates it towards the average value of all the received values

HOW TO USE IT

Configure the model using:

NUM-AGENTS determines the size of the network DEGREE is the exact degree of each node ITER is the number of iterations that will be executed

Then GENERATE NEWORK creates a random network with the defined parameters and inits the value of each agents uniformly in [0,1]

Click on STEP to exchange values among the agents step by step. Click on GO to execute the number of iterations specified in ITER. RESET will generate a new set of initial values over the same network structure.

CHANGE-COLOR allows to keep the agent color to check its evolution on the graph CONSENSUS PROCESS or allows the color to change towards the consensus value.

THINGS TO NOTICE

The size of the network barely affects to the convergece speed. The convnergece is more sensitive to the degree of the network and its topology.

THINGS TO TRY

Check what happens if the network has more that one component.

EXTENDING THE MODEL

To include additional network models

To include weights in the edges so an weighted average is calculated

To allow the agents dynamically enter or leave the system

CREDITS AND REFERENCES

2012 Miguel Rebollo (@mrebollo).

CC BY-NC-SA 3.0

This work is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-sa/3.0/ or send a letter to Creative Commons, 559 Nathan Abbott Way, Stanford, California 94305, USA.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals
[
  initial-average
  current-average
  cummulated-difference
  maximum-degree
  ;;; code to isolate view from code (View-controller Model)
  number-of-agents
  initial-degree
  iterations
]

turtles-own
[
  x         ;; current agent value
  newx      ;;next iteration value
  eps       ;; epsilon value: step to approach to the mean value
]

to setup
  configure-model
  create-network
  reset
end

to configure-model
  set number-of-agents num-agents
  set initial-degree degree
  set iterations iter
end

to create-network
  ca
  set-default-shape turtles "circle"

  create-turtles num-agents
  ;;create a random network
  ask turtles  [create-links-with n-of degree other turtles]
  set maximum-degree max [count my-links] of turtles
end

to reset
  clear-all-plots
  reset-ticks

  set current-average 0
  set cummulated-difference 0

  ;; reset agents
  ask turtles [reset-agent]
  set initial-average mean [x] of turtles
  ;; Layout turtles:
  layout-circle (sort turtles) max-pxcor - 2
  display
end

to reset-agent
  ;; inits agent value at random
  set x random-float 1

  set eps 1 / (maximum-degree + 1)

  set-current-plot "Consensus process"
  create-temporary-plot-pen (word who)
  set-turtle-color
end

to set-turtle-color
  ifelse (change-color?)
  [set color scale-color blue x 0 1]
  [ifelse ( num-agents < 15 )
      [set color one-of base-colors]
      [set color random 140]
  ]
end

to reach-consensus
  ;; stops when the number of iteratios is reached
  if (ticks = iter)
  [stop]

  ;; updates the values
  ask turtles [
    set newx x - eps * (x * (count my-links) - sum [x] of link-neighbors)
  ]
  ask turtles [
    set x newx
    if (change-color?)
    [set color scale-color blue x 0 1]
  ]

  ;; calculates the current average (just to check sum/aerage conservation
  set current-average mean [x] of turtles
  ;; calulates the cummulative difference with the average value
  set cummulated-difference sum [(x -  current-average) ^ 2] of turtles / 2
  tick
end
