Simple Binary Clock

1 collaborator

Marcus Snell (Author)

WHAT IS IT?

A binary clock

HOW IT WORKS

This model pulls the time from your computer, converts the time from a string to a list, and checks to see if the time (HH:MM:SS) has changed. If so, the model checks to see if the hour, minute, and/or second has changed, then translates the decimal time to binary for only the h/m/s that has changed.

HOW TO USE IT

First, press "Initialize Clock". Then press "Start Clock".

NETLOGO FEATURES

to clock Converts the date-to-time primitave from a string to a numerical list

hour/min/seccheck Converts decimal time to binary time, then changes the displayed dots--with use of the foreach primitave.

CREDITS AND REFERENCES

Created By: Marcus Snell Email: marcus.l.snell@gmail.com

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

breed [cubes cube]

globals[
  realtime
  time
  h1
  h2
  m1
  m2
  s1
  s2
  time0
  group0
  group1
  group2
  group3
  wigcount
  wigcheck
  wigtrip
  hc0
  hc1
  mc0
  mc1
  sc0
  sc1
  ]

patches-own[]

to setup
  ca
  set-default-shape cubes "cylinder"
  set group2 patches with [pycor = 0 or pycor = 1]
  set group1 patches with [pycor = 2 or pycor = 3]
  set group0 patches with [pycor = 4 or pycor = 5]
  set time0 [0 0 0]
  set hc1 [0 0 0 0 0 0]
  set mc1 [0 0 0 0 0 0]
  set sc1 [0 0 0 0 0 0]
  ask group0 with [pycor = 4][sprout-cubes 1 [set color 105]]
  ask group1 with [pycor = 2][sprout-cubes 1 [set color 65]]
  ask group2 with [pycor = 0][sprout-cubes 1 [set color 15]]
  clock
  keeptime
end

to clock
  set realtime date-and-time
  set h1 read-from-string item 0 realtime
  set h2 read-from-string item 1 realtime
  let hh h1 * 10 + h2
  set m1 read-from-string item 3 realtime
  set m2 read-from-string item 4 realtime
  let mm m1 * 10 + m2
  set s1 read-from-string item 6 realtime
  set s2 read-from-string item 7 realtime
  let ss s1 * 10 + s2
  set time (list hh mm ss)
end

to go
  set time0 time
  clock
  if time0 != time[keeptime]
end

to keeptime
  hourcheck
  mincheck
  seccheck
  show time
end

to hourcheck
  if item 0 time0 != item 0 time[
    set hc0 hc1
    let a1 floor((item 0 time) / 2 ^ 5)
    let a2 (item 0 time) mod 2 ^ 5
    let b1 floor(a2 / 2 ^ 4)
    let b2 a2 mod 2 ^ 4
    let c1 floor(b2 / 2 ^ 3)
    let c2 b2 mod 2 ^ 3
    let d1 floor(c2 / 2 ^ 2)
    let d2 c2 mod 2 ^ 2
    let e1 floor(d2 / 2)
    let e2 d2 mod 2
    set hc1 (list a1 b1 c1 d1 e1 e2)

    (foreach hc1 hc0 [0 1 2 3 4 5]
      [ if (?1 != ?2) [ask group0 with [pxcor = ?3][
            ifelse count cubes-here = 0
            [sprout-cubes 1 [set color 105]]
            [ask cubes-here[die]]
            ]
      ]])
    ]
end

to mincheck
  if item 1 time0 != item 1 time[
    set mc0 mc1
    let a1 floor((item 1 time) / 2 ^ 5)
    let a2 (item 1 time) mod 2 ^ 5
    let b1 floor(a2 / 2 ^ 4)
    let b2 a2 mod 2 ^ 4
    let c1 floor(b2 / 2 ^ 3)
    let c2 b2 mod 2 ^ 3
    let d1 floor(c2 / 2 ^ 2)
    let d2 c2 mod 2 ^ 2
    let e1 floor(d2 / 2)
    let e2 d2 mod 2
    set mc1 (list a1 b1 c1 d1 e1 e2)

    (foreach mc1 mc0 [0 1 2 3 4 5]
      [ if (?1 != ?2) [ask group1 with [pxcor = ?3][
            ifelse count cubes-here = 0
            [sprout-cubes 1 [set color 65]]
            [ask cubes-here[die]]
            ]
      ]])
    ]
end

to seccheck
  if item 2 time0 != item 2 time[
    set sc0 sc1
    let a1 floor((item 2 time) / 2 ^ 5)
    let a2 (item 2 time) mod 2 ^ 5
    let b1 floor(a2 / 2 ^ 4)
    let b2 a2 mod 2 ^ 4
    let c1 floor(b2 / 2 ^ 3)
    let c2 b2 mod 2 ^ 3
    let d1 floor(c2 / 2 ^ 2)
    let d2 c2 mod 2 ^ 2
    let e1 floor(d2 / 2)
    let e2 d2 mod 2
    set sc1 (list a1 b1 c1 d1 e1 e2)

    (foreach sc1 sc0 [0 1 2 3 4 5]
      [ if (?1 != ?2) [ask group2 with [pxcor = ?3][
            ifelse count cubes-here = 0
            [sprout-cubes 1 [set color 15]]
            [ask cubes-here[die]]
            ]
      ]])
    ]
end

There is only one version of this model, created about 8 years ago by Marcus Snell.

Attached files

File	Type	Description	Last updated

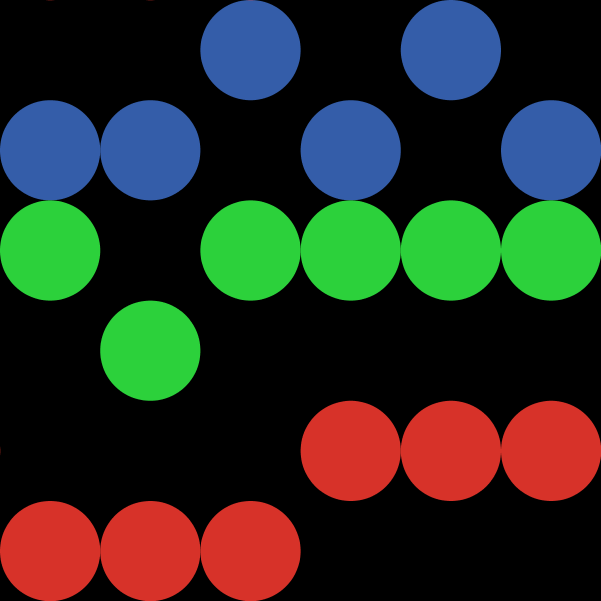

Simple Binary Clock.png	preview	Preview for 'Simple Binary Clock'	about 8 years ago, by Marcus Snell	Download

This model does not have any ancestors.

This model does not have any descendants.
