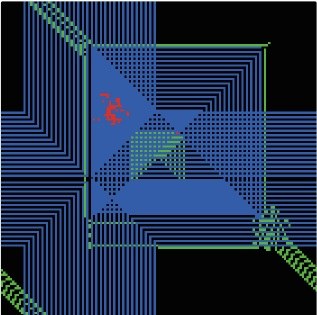

TurSquiral preview image

1 collaborator

F1 Cosimo Leuci (Author)

Tags

cellular automata

Tagged by Cosimo Leuci 8 days ago

emergence

Tagged by Cosimo Leuci 20 days ago

morphogenesis

Tagged by Cosimo Leuci 20 days ago

turmite

Tagged by Cosimo Leuci 16 days ago

turtle geometry

Tagged by Cosimo Leuci 20 days ago

Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.0.1 • Viewed 107 times • Downloaded 2 times • Run 0 times
Download the 'TurSquiral' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


## WHAT IS IT?

We live in a world that seems in some sense mathematical – even if the way is still debated by mathematicians, physicists, philosophers and other scholars. In this project I’d like compare the logic of (turtle’s) geometry to that of cellular automata: both could recreate the same figure (eg a squared spiral) but in very different ways. The first one implies a program’s inner representation of spiral, in the second the same pattern can be the emergent output of the rules with which an agent and its environment interact, ie with the cells of a grid that itself contributes to change. In an article published in Nature (544, 173-179) the suggested hypothesis is that cellular automata are not only an abstract computational system but can be actual biological dynamics supported by evolution, at the base of some morphogenetic processes.

## HOW IT WORKS

The model is conceptually divided in two parts, both inspired by two articles appeared on the "Computer Recreations" column in Scientific American. The first one introduce the turtle geometry implemented in Logo computer language; the article suggest how to code a computer program to generate spirals . The second describe what is a turmite i.e. a Turing machine which has an orientation as well as a current state and a "tape" that consists of an infinite two-dimensional grid of cells.

## HOW TO USE IT

(how to use the model, including a description of each of the items in the Interface tab)

## THINGS TO NOTICE

(suggested things for the user to notice while running the model)

## THINGS TO TRY

(suggested things for the user to try to do (move sliders, switches, etc.) with the model)

## EXTENDING THE MODEL

(suggested things to add or change in the Code tab to make the model more complicated, detailed, accurate, etc.)

## NETLOGO FEATURES

(interesting or unusual features of NetLogo that the model uses, particularly in the Code tab; or where workarounds were needed for missing features)

## RELATED MODELS

(models in the NetLogo Models Library and elsewhere which are of related interest)

## CREDITS AND REFERENCES

• Brian Hayes. Computer Recreations: Turning turtle gives one a view of geometry from the inside out. Scientific American, February 1 – 1984

• Alexander K. Dewdney. Computer Recreations: Two-dimensional Turing machines and tur-mites make tracks on a plane. Scientific American, September 1 – 1989

• Uri Wilensky. Mouse example. NetLogo Modeling Commons

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [ side step ]

turtles-own [state]

to setup
  clear-all
  crt 1[
    set heading -90
    set state 1
    ]
  reset-ticks
end

to patch-draw
  if mouse-down?     ;; reports true or false to indicate whether mouse button is down
    [
      ;; mouse-xcor and mouse-ycor report the position of the mouse --
      ;; note that they report the precise position of the mouse,
      ;; so you might get a decimal number like 12.3, but "patch"
      ;; automatically rounds to the nearest patch
      ask patch mouse-xcor mouse-ycor
        [ set pcolor red
          display ]
    ]
end

to go_squiral
  set step 0
  ask turtles [ walk ]
  ask turtles [ rt angle ]
  set side side + increase
  tick-advance 1
end

to turmite1
  ask turtles [ behaviour1 ]
  tick-advance 1
end

to turmite2
  ask turtles [ behaviour2 ]
  tick-advance 1
end

to turmite3
  ask turtles [ behaviour3 ]
  tick-advance 1
end

to walk
  set pcolor blue
  set step step + 1
  fd 1
  if step <= side [walk]
end

to behaviour1
  if pcolor != black [set pcolor black lt 90 fd 1]
  if pcolor = black [set pcolor green rt 90 fd 1]
end

to behaviour2
  if pcolor != black and state = 1 [set pcolor black lt 90 set state 2 fd 1]
  if pcolor != black and state = 2 [set pcolor green rt 90 set state 2 fd 1]
  if pcolor = black and state = 1 [set pcolor green lt 90 set state 1 fd 1]
  if pcolor = black and state = 2 [set pcolor black rt 90 set state 1 fd 1]
end

to behaviour3
  if pcolor = black [set pcolor red rt 90 fd 1]
  if pcolor = red [set pcolor yellow rt 90 fd 1]
  if pcolor = yellow [set pcolor cyan lt 90 fd 1]
  if pcolor = cyan [set pcolor black lt 90 fd 1]
end
