Windmill Toy

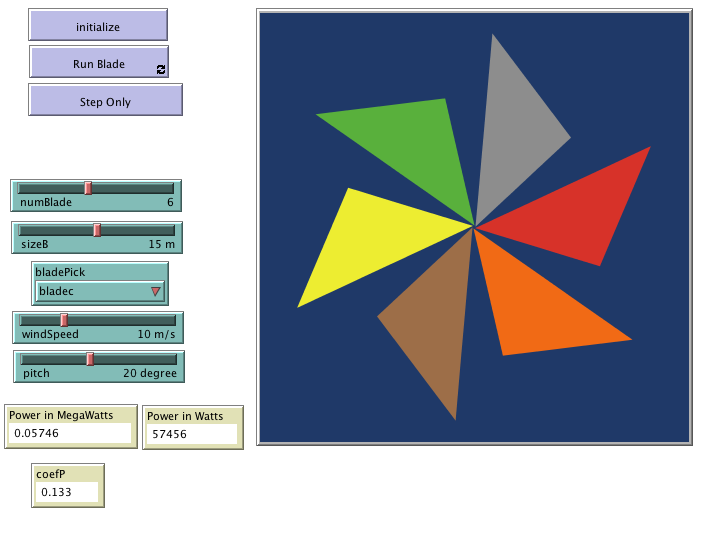

Windmill Toy preview image

This model is seeking new collaborators — would you please help?

1 collaborator

Tags

efficiency

Tagged by Jonathan Harrington 3 months ago

physics

Tagged by Jonathan Harrington 3 months ago

power generation

Tagged by Jonathan Harrington 3 months ago

renewable energy

Tagged by Jonathan Harrington 3 months ago

turbine

Tagged by Jonathan Harrington 3 months ago

wind

Tagged by Jonathan Harrington 3 months ago

Visible to everyone | Changeable by the author
Model was written in NetLogo 6.0.4 • Viewed 92 times • Downloaded 2 times • Run 0 times
Download the 'Windmill Toy' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


## WHAT IS IT?

This is a toy model of a vertical wind turbine (wind mill) with variable pitch angle rotors.

## DEFINITIONS

Pitch = the angle perpindicular from the wind direction. Assume that the turbine can rotate to face the wind direction. The blades are turned backwards by this angle.

Power = Energy per time.

Coefficient of Efficiency = Power of the Turbine / Total Theoretical Power in the the Wind.

## HOW TO TRY IT OUT

Pick a blade shape and number that you like. Turn on the simulation by clicking the button run blade.

Look at the graphs. What do they show? Can you see any patterns (trends) in the data?

Experiment with the variables of speed, pitch angle, and blade length (sizeB). How does the power output respond?

## HOW IT WORKS

The model calculates the response of a theoretical turbine blade at a given angle to the wind.

The wind turbine takes energy from the wind and uses it to generate electrical power.

This model allows you to investigate the relationships between the efficiency of the turbine (cp) and the variables of windspeed and pitch angle.

The model does also allow you to change the number of blades and the size of the blades, but these values do not relate to actual data, yet. The trend should be similar to what is experienced in real life, but the values could be different.

The spin of the blades on the screen is simply scaled by normalized wind-speed and the efficiency. It does not represent the true speed.

## RELATED MODELS

Turtles Circling

## CREDITS AND REFERENCES

Material was taken from the public domain and simulink documentation: <https://www.mathworks.com/help/physmod/sps/powersys/ref/windturbine.html>

<https://www.grc.nasa.gov/WWW/K-12/airplane/short.html>

Siegfried Heier, “Grid Integration of Wind Energy Conversion Systems,” John Wiley & Sons Ltd, 1998, ISBN 0-471-97143-X

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [initCount initBlade radius baseRot step-size normSpeed lambda rhoAir areaAir powerT coefP matBlade powerW powerMW]
turtles-own [real-heading areaBlade]

to turtleIt
  clear-turtles
  ;; make turtles, equally spaced in heading
  create-ordered-turtles numBlade [
    ;; this code calculates the area of the blades. if can be easily modified to include any blade
    if shape = "bladea" [set areaBlade 0.5 * 6 * 9 ]
    if shape = "bladeb" [set areaBlade (0.5 * (6 * 9 + 3 * 9)) ] ; slightly off
    if shape = "bladec" [set areaBlade 0.5 * 20 * 9 ]
    ;; move to edge of circle
    fd radius
    ;; turn to face clockwise
    rt 90
    ;; change blade length
    set size sizeB
    ;set color white
    set real-heading heading
    ;turn the turtle in the apparent heading for display only
    facexy 0 0
    set shape bladePick
  ]
end

to initialize
  clear-ticks
  clear-patches
  ;these two variables control the speed of turtle rotation. This is not physically related to true rotation rate.
  set normSpeed (( windSpeed - 12 ) / 12 )
  set step-size 10 * (1 + normSpeed)
  ;sets the length of the blade
  set radius .5 * sizeB
  ;;background color
  ask patches [set pcolor blue - 2]

  turtleIt

  set initCount count turtles
  set initBlade sizeB
  ;defines swept area of turbine
  set areaAir pi * sizeB ^ 2
  ;defines air density
  set rhoAir 1.225 ; 0.001225
  set baseRot 1.2
  reset-ticks
end

to go-distance
  power
  ask turtles [
    set heading real-heading
    arc-forward-by-angle step-size
    set real-heading heading
    facexy 0 0
  ]
  refresh
    tick
end

;;this command calculates the theoretical power of the turbine based on the wind speed and blade pitch:

to power

  let cpnom 0.48
  let genPower (1.5e6 / 0.9)
  ;lambda is the wing-tip speed/windspeed
  let windNom windSpeed / 12
  set lambda baseRot / windSpeed

  let pitchR  pitch * 0.01745329252
  ;;these coefficient definitions come from the reference equations --> they dpend on windspeed, and angle of attack
  ;let lambdaI ((1 / ( lambda + (0.08 * pitch) )) - (0.035 / (pitch ^ 3 + 1))) ^ -1
  let lambdaI (1 / ( lambda + (0.08 * pitchR) ) - (0.035 / (pitchR ^ 3 + 1)) )

  ;this inverses the inverse
  ;let lambdaInv (1 / lambda )
  let c1 0.5176 let c2 116 let c3 0.4 let c4 5 let c5 21 let c6 0.0068
  ;set coefP (c1 * (c2 / lambdaI - ( c3 * pitch ) - c4) * e ^ ((-1 * c5 ) / lambdaI) + (c6 * lambda))
  set coefP (c1 * (c2 / lambdaI - c3 * pitchR - c4) * e ^ ((-1 * c5 ) / lambdaI) + c6 * lambda)
  ;this scales the coefP in accordance to the efficiency changes that the turbine could possibly experience by changing the number of blades. These values max at 3 blades and drop off. they are not yet derived from actual data.
  set coefP (coefP * ((-0.00003 * (numBlade ^ 5) + 0.0006 * (numBlade ^ 4) + 0.0012 * (numBlade ^ 3) - 0.0816 * (numBlade ^ 2) + 0.4151 * (numBlade) + 0.3455) / 0.93011))

  ;this corrects for the material, (non-physical toy scalar)
  ;ifelse material = "balsawood" [ set matBlade 0.8 ]
  ; [ ifelse material = "aluminium" [set matBlade 0.7] [set matBlade 1]]
  ;this is the power calculation, divide by 1e6 to make it in Megawatt
  set powerW (rhoAir * areaAir * .5 * windSpeed ^ 3)
  set powerT coefP * powerW
  set powerMW (powerT / 1000000)

  ;set powerT matBlade * (rhoAir * areaAir) * (kP * coefPnom * (windNom ^ 3)) * (1 / baseRot)
end

to refresh ;for debugging, strange blade behavior
  ask turtles [set size sizeB set shape bladePick]
  set areaAir pi * sizeB ^ 2
  ;sets the length of the blade
  set radius .5 * sizeB
  set normSpeed (( windSpeed - 12 ) / 12 )
  set step-size 10 * (1 + normSpeed) * coefP
  if numBlade != initCount or initBlade != sizeB [
    turtleIt
    ;go-distance
  set initCount count turtles
  set initBlade sizeB
  ]
end

;; This is the blade spin procedure.  It moves the blade turtles to the next point
;; on the circle, the given distance along the curve. Code copied from the model library

to arc-forward-by-angle [angle]
  ;; turn to face the next point we're going to
  rt angle / 2
  ;; calculate the distance we'll have to move forward
  ;; in order to stay on the circle. Go there.
  fd 2 * radius * sin (angle / 2)
  ;; turn to face tangent to the circle
  rt angle / 2
end

;; these are some relevant equations for air foils that were not included, but could be useful for understanding
;air density 1.225 kg/m3
;Coef = 2 * pi * pitch ;;where pitch is the angle of attack in radians
;Lift = 1/2 x coefL x densityWING x windSpeed squared x wing area
;Drag = drag + dragInd = Cd = D / (A * .5 * r * V^2) + dragInd
;dragInd=Cdi = (Cl^2) / (pi * AR * e) ;; for delta wing, AR = wingspan/averageChord ;; use e = 0.7 for approximation
;Power in the Wind = 1/2 x densityAIR x swept area x windSpeed cubed
;Power in turbine = torque * omega = torque * tangentialSpeed / radius ~= (lift - drag)*velocity
;acceleration of turbine = (lift-drag)/(mass)
;probably needs to be fudged so that turbulent air slows down the foil --
;;;Re = (airDensity * V * L) / mu ; mu = 1.784 x 10e-5, in case of trying momentum simulation


;material from public domain and simulink documentation:
;
; Siegfried Heier, “Grid Integration of Wind Energy Conversion Systems,” John Wiley & Sons Ltd, 1998, ISBN 0-471-97143-X

;This work was created by Jonathan Harrington and is licensed under the Creative Commons Attribution-NonCommercial 3.0 United States License.
;To view a copy of this license, visit http://creativecommons.org/licenses/by-nc/3.0/us/
;or send a letter to Creative Commons, PO Box 1866, Mountain View, CA 94042, USA.

There is only one version of this model, created 3 months ago by Jonathan Harrington.
