Foraging estimates

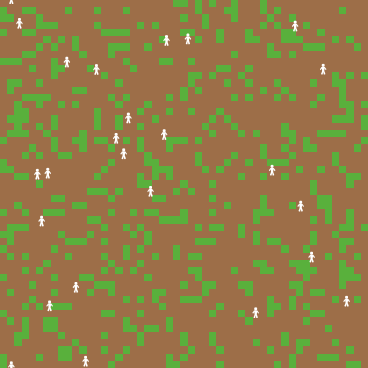

Foraging estimates preview image

1 collaborator

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by the author
Model was written in NetLogo 6.0.3 • Viewed 137 times • Downloaded 12 times • Run 0 times
Download the 'Foraging estimates' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

; Foraging V3.0

; WORLD INCLUDES
;globals [max-lifepoints]
breed [foragers forager]
foragers-own [name lifepoints encounter-v search-v expected-search-cost potential-search-cost]
patches-own [countdown food]
globals [list-search-costs max-grass-food likelihood-pay-search-cost food-value-range-L cost-per-computation]


; SETUP WORLD

to setup
  clear-all
  set list-search-costs [1 2 4]
  set likelihood-pay-search-cost 70
  set max-grass-food (max-gain-from-food * max-lifepoints / 100)
  set food-value-range-L 15 ; food-value-range-H (high) is unnecesary, as it is 100% of max-grass-food
  set cost-per-computation (1 * computing-cost / 100 ) / 6

  ;Initialize patches
  ask patches [set pcolor brown]

  ask n-of num-grassy-patches patches [ set pcolor green ]  ; num-grassy-patches patches turn green

    ask patches [
    ifelse pcolor = green
        [ set countdown grass-regrowth-time
          ;set food random max-grass-food]
          set food ( ( max-grass-food * food-value-range-L / 100 ) + random ( max-grass-food * (100 - food-value-range-L) / 100 ) )]
          ;set food median (list max-grass-food/2   max-grass-food]
      [ set countdown (random grass-regrowth-time / 2 + random grass-regrowth-time) ] ; initialize grass regrowth clocks randomly for brown patches
  ]

  ; Initialize foragers
  create-foragers initial-number-foragers [
    ;pen-down
    set shape "person"
    set color white
    set size 1.5
    setxy random-xcor random-ycor
    set lifepoints (max-lifepoints / 2 + random max-lifepoints / 2)
    ;set lifepoints random (2 * forager-gain-from-food)
  ]

  reset-ticks
end



; FUNCTIONS

to go
  if not any? foragers [ user-message "Humanity has gone extinct :(" stop ] ; A little bit of humour

  ; Foragers
  ask foragers [

    set lifepoints lifepoints - 1 ; living ain't free
    set potential-search-cost one-of list-search-costs; ; is not "computed" by forager,
                                                      ; this info is "hidden" to the forager,
                                                      ; who will become aware of it only if we call compute-sc

    ; compute value (encountered, search) & cost (search)
    if lifepoints < (max-lifepoints * saciety-thresh / 100) [

      ifelse this-model = "forage" [
        compute-ev
        compute-sv
        compute-sc

        if encounter-v < (search-v - expected-search-cost) [
          movelegs
        ]
      ]
      [
        movelegs ; moves and pays search-cost. In "forage" mode, if encounter-v < (search-v - expected-search-cost),
      ]

    ]
  ]

  ; Patches
  ask patches [ decay-grass ]

  ; Foragers
  ask foragers [
    eat-grass
    death
  ]

  ; Patches
  ask patches [ grow-grass ]

  tick
end



; Forager procedures

to compute-ev
  set encounter-v (food * (1 - (grass-decay-prob / 100) ))
  set lifepoints (lifepoints - cost-per-computation)
end

to compute-sv
  ; from command line, in observer mode, got what I wanted with:
  ; ask forager 0 [set search-v sum [food] of neighbors]
  set search-v (sum [food] of neighbors) / 8 ; 'cause there are 8 neighbors
  set lifepoints (lifepoints - cost-per-computation)
end

to compute-sc
  ; From Kolling et al 2012, Science:
  ; Decisions to search entailed a risk of point loss (which constituted the search cost) with a
  ; likelihood of 70%. The number of points that might be lost was set to three different levels
  ; and the level on each trial was indicated to the subject by the color of the box surrounding
  ; the search alternatives (potential point loss: red = 20; white = 10; green = 5).
  set expected-search-cost potential-search-cost
  set lifepoints (lifepoints - cost-per-computation)
end

to should-isosig ; should I stay or ...
; phased out to include computation of foraging costs in f(movelegs)
end

to movelegs
  set heading random 360
  fd 1
  if random-float 100 < likelihood-pay-search-cost [
    set lifepoints (lifepoints - potential-search-cost)
  ]
  ;set lifepoints (lifepoints - real-search-cost)
  ; it's not worth it to calculate a real-search-cost, just throw the dice
end

to eat-grass  ; forager procedure
  ; sheep eat grass, turn the patch brown
  if pcolor = green [

    ;set lifepoints lifepoints + forager-gain-from-food  ; gain lifepoints by eating
    set lifepoints lifepoints + food  ; gain lifepoints by eating
    set pcolor brown
    set food 0
  ]
end

to death ; forager procedure
  ; when energy dips below zero, die
  if lifepoints < 0 [ die ]
end


; Patch procedures

to grow-grass  ; patch procedure
  ; countdown on brown patches: if reach 0, grow some grass
  if pcolor = brown [
    ifelse countdown <= 0
      [ set pcolor green
        set countdown grass-regrowth-time
        set food (max-grass-food / 2 + random max-grass-food / 2)
    ]
      [ set countdown countdown - 1 ]
  ]
end

to decay-grass ; patch procedure
  if pcolor = green [
    if random-float 100 < grass-decay-prob [ ; will grass survive? throw dice...
      set pcolor brown
      set food 0 ]
  ]
end

; REPORT VARIABLES

to-report grass
  let grass-q patches with [pcolor = green] ; patches with [pcolor = green]
  let grass-report ((count grass-q / 50) * (initial-number-foragers / 25))
  report grass-report
end

There is only one version of this model, created over 5 years ago by Mike Cisneros-Franco.

Attached files

File Type Description Last updated
Foraging estimates.png preview Preview for 'Foraging estimates' over 5 years ago, by Mike Cisneros-Franco Download

This model does not have any ancestors.

This model does not have any descendants.
