Covid_19_Intervention_Timing_Effects

1 collaborator

Eduardo Tapia (Author)

WHAT IS IT?

(a general understanding of what the model is trying to show or explain)

HOW IT WORKS

(what rules the agents use to create the overall behavior of the model)

HOW TO USE IT

(how to use the model, including a description of each of the items in the Interface tab)

THINGS TO NOTICE

(suggested things for the user to notice while running the model)

THINGS TO TRY

(suggested things for the user to try to do (move sliders, switches, etc.) with the model)

EXTENDING THE MODEL

(suggested things to add or change in the Code tab to make the model more complicated, detailed, accurate, etc.)

NETLOGO FEATURES

(interesting or unusual features of NetLogo that the model uses, particularly in the Code tab; or where workarounds were needed for missing features)

RELATED MODELS

(models in the NetLogo Models Library and elsewhere which are of related interest)

CREDITS AND REFERENCES

(a reference to the model's URL on the web if it has one, as well as any other necessary credits, citations, and links)

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [ lista %_infected %_recovered activated]
turtles-own [ marker mover]

to setup
  ca
  set lista []
  ask patches [ set pcolor white]
  ask patches with [ pycor = -50] [ set pcolor black]
  ask patches with [ pycor = -49] [ set pcolor black]
  ask patches with [ pycor = 50] [ set pcolor black]
  ask patches with [ pycor = 49] [ set pcolor black]
  ask patches with [ pxcor = -80] [ set pcolor black]
  ask patches with [ pxcor = -79] [ set pcolor black]
  ask patches with [ pxcor = 79] [ set pcolor black]
  ask patches with [ pxcor = 80] [ set pcolor black]
  ask n-of Population patches with [ pcolor = white ] [ sprout 1 [ set shape "circle" set color blue fd 0.5]]
  ask one-of turtles [ set color red set marker Recovery_time]
  ask turtles [ set mover 1] ; all can move
  set activated 1
  reset-ticks
end

to go
  if (ticks = 500) [ stop ]
  move2
  spread_virus
  updatemaker
  %_infec
  which_action
  tick
end

to which_action
  if (intervention = "nothing" ) []
  if (intervention = "focalized_quarantine_hard" ) [if (%_infected > Intervention_Timing and activated = 1) [ intervene_quarantine_hard] ]
  if (intervention = "focalized_quarantine_soft" ) [if (%_infected > Intervention_Timing and activated = 1) [ intervene_quarantine_soft] ]
  if (intervention = "social_distance_hard" ) [if (%_infected > Intervention_Timing and activated = 1) [social_distance_hard] ]
  if (intervention = "social_distance_soft" ) [if (%_infected > Intervention_Timing and activated = 1) [social_distance_soft] ]
  if (intervention = "close_borders_soft" ) [if (%_infected > Intervention_Timing and activated = 1) [close_b_soft] ]
  if (intervention = "close_borders_hard" ) [if (%_infected > Intervention_Timing and activated = 1) [close_b_hard] ]
end

to %_infec
  set %_infected ((count turtles with [ color = red]) / (count turtles)) * 100
  set %_recovered ((count turtles with [ color = green]) / (count turtles)) * 100
end

to updatemaker
  ask turtles with [ color = red ] [ set marker marker - 1 ]
  ask turtles with [ ( color = red OR color = yellow )  and marker < 0 ] [ set color green ]
end

to spread_virus
  ask turtles with [ (color = red OR color = yellow) and marker > 0]
  [ if any? other turtles-here
    [ let otro one-of turtles-here
      let colorotro [color] of otro
      ifelse (colorotro = green)
      [ ]
      [
        let dado random-float 1
        ifelse(dado < Probability_of_being_asymptomatic)
        [ ask otro [ set color yellow set marker Recovery_time] ]
        [ ask otro [ set color red set marker Recovery_time] ]
      ]
    ]
  ]
end

to move2
  ask turtles with [mover = 1] [
    let patcha [pcolor] of patch-ahead 1
    ifelse (patcha = black)
    [
      set heading heading + random 360
    ]

    [
     fd 1
    ]
  ]
end

to intervene_quarantine_hard

  let aa (count (turtles-on patches with [ pxcor > 0 and pycor > 0 ]) with [ color = red ])
  set lista lput aa lista
  let bb (count (turtles-on patches with [ pxcor < 0 and pycor > 0 ]) with [ color = red ])
  set lista lput bb lista
  let cc (count (turtles-on patches with [ pxcor < 0 and pycor < 0 ]) with [ color = red ])
  set lista lput cc lista
  let dd (count (turtles-on patches with [ pxcor > 0 and pycor < 0 ]) with [ color = red ])
  set lista lput dd lista

  let maximo max lista

  let posicion position maximo lista
  ;print posicion
  if (posicion = 0) [ask patches with [ (pxcor >= 0 and pycor = 0) OR (pycor > 0 and pxcor = 0) ] [ set pcolor black ]]
  if (posicion = 1) [ask patches with [ (pxcor <= 0 and pycor = 0) OR (pycor > 0 and pxcor = 0) ] [ set pcolor black ]]
  if (posicion = 2) [ask patches with [ (pxcor <= 0 and pycor = 0) OR (pycor < 0 and pxcor = 0) ] [ set pcolor black ]]
  if (posicion = 3) [ask patches with [ (pxcor >= 0 and pycor = 0) OR (pycor < 0 and pxcor = 0) ] [ set pcolor black ]]
  set activated 0
end

to intervene_quarantine_soft

  let aa (count (turtles-on patches with [ pxcor > 0 and pycor > 0 ]) with [ color = red ])
  set lista lput aa lista
  let bb (count (turtles-on patches with [ pxcor < 0 and pycor > 0 ]) with [ color = red ])
  set lista lput bb lista
  let cc (count (turtles-on patches with [ pxcor < 0 and pycor < 0 ]) with [ color = red ])
  set lista lput cc lista
  let dd (count (turtles-on patches with [ pxcor > 0 and pycor < 0 ]) with [ color = red ])
  set lista lput dd lista

  let maximo max lista
  let posicion position maximo lista
  if (posicion = 0) [ask patches with [ (pxcor >= 0 and pycor = 0) OR (pycor > 0 and pxcor = 0) ] [ set pcolor black ]]
  if (posicion = 0) [ask n-of 3 patches with [ (pxcor >= 0 and pycor = 0) OR (pycor > 0 and pxcor = 0) ] [ set pcolor white ]]
  if (posicion = 1) [ask patches with [ (pxcor <= 0 and pycor = 0) OR (pycor > 0 and pxcor = 0) ] [ set pcolor black ]]
  if (posicion = 1) [ask n-of 3 patches with [ (pxcor <= 0 and pycor = 0) OR (pycor > 0 and pxcor = 0) ] [ set pcolor white ]]
  if (posicion = 2) [ask patches with [ (pxcor <= 0 and pycor = 0) OR (pycor < 0 and pxcor = 0) ] [ set pcolor black ]]
  if (posicion = 2) [ask n-of 3 patches with [ (pxcor <= 0 and pycor = 0) OR (pycor < 0 and pxcor = 0) ] [ set pcolor white ]]
  if (posicion = 3) [ask patches with [ (pxcor >= 0 and pycor = 0) OR (pycor < 0 and pxcor = 0) ] [ set pcolor black ]]
  if (posicion = 3) [ask n-of 3 patches with [ (pxcor >= 0 and pycor = 0) OR (pycor < 0 and pxcor = 0) ] [ set pcolor white ]]
  set activated 0
end

to social_distance_hard
  ask n-of ((95 * Population) / 100 ) turtles [ set mover 0 ]
  set activated 0
end

to social_distance_soft
  ask n-of ((80 * Population) / 100 ) turtles [ set mover 0 ]
  set activated 0
end

to close_b_hard
  ask patches with [ (pxcor >= 0 and pycor = 0) OR (pycor > 0 and pxcor = 0) ] [ set pcolor black ]
  ask patches with [ (pxcor <= 0 and pycor = 0) OR (pycor > 0 and pxcor = 0) ] [ set pcolor black ]
  ask patches with [ (pxcor <= 0 and pycor = 0) OR (pycor < 0 and pxcor = 0) ] [ set pcolor black ]
  ask patches with [ (pxcor >= 0 and pycor = 0) OR (pycor < 0 and pxcor = 0) ] [ set pcolor black ]
  set activated 0
end

to close_b_soft
  ask patches with [ (pxcor >= 0 and pycor = 0) OR (pycor > 0 and pxcor = 0) ] [ set pcolor black ]
  ask n-of 3 patches with [ (pxcor >= 0 and pycor = 0) OR (pycor > 0 and pxcor = 0) ] [ set pcolor white ]
  ask patches with [ (pxcor <= 0 and pycor = 0) OR (pycor > 0 and pxcor = 0) ] [ set pcolor black ]
  ask n-of 3 patches with [ (pxcor <= 0 and pycor = 0) OR (pycor > 0 and pxcor = 0) ] [ set pcolor white ]
  ask patches with [ (pxcor <= 0 and pycor = 0) OR (pycor < 0 and pxcor = 0) ] [ set pcolor black ]
  ask n-of 3 patches with [ (pxcor <= 0 and pycor = 0) OR (pycor < 0 and pxcor = 0) ] [ set pcolor white ]
  ask patches with [ (pxcor >= 0 and pycor = 0) OR (pycor < 0 and pxcor = 0) ] [ set pcolor black ]
  ask n-of 3 patches with [ (pxcor >= 0 and pycor = 0) OR (pycor < 0 and pxcor = 0) ] [ set pcolor white ]
  set activated 0
end

There is only one version of this model, created over 5 years ago by Eduardo Tapia.

Attached files

File	Type	Description	Last updated

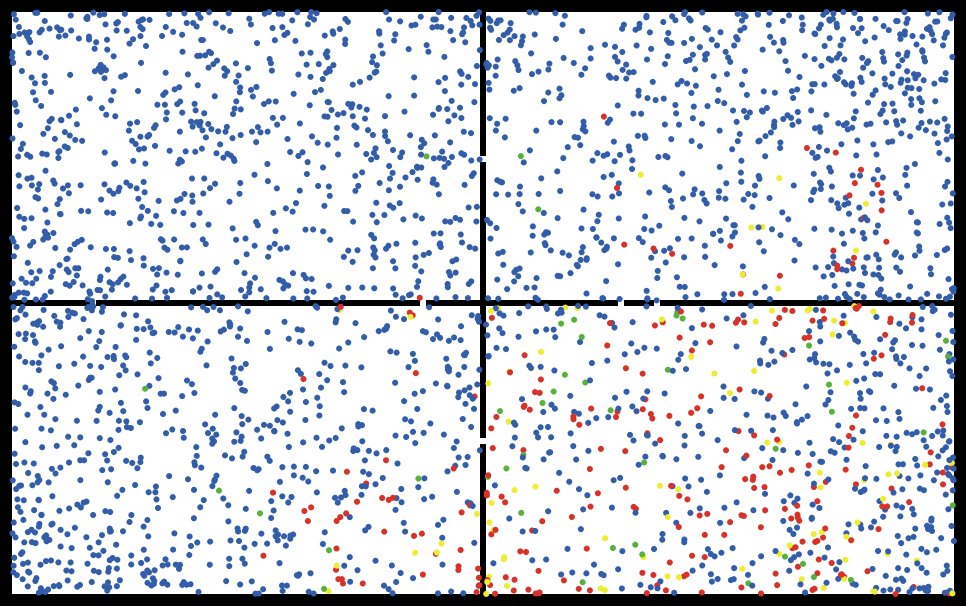

Covid_19_Intervention_Timing_Effects.png	preview	Preview for 'Covid_19_Intervention_Timing_Effects'	over 5 years ago, by Eduardo Tapia	Download
