COVID_19 spread with movement rules

This model is seeking new collaborators — would you please help?

1 collaborator

ACKNOWLEDGMENT

This model is an alternate visualization of the Virus model from the Biology section of the NetLogo Models Library. It uses visualization techniques as recommended in the paper:

Kornhauser, D., Wilensky, U., & Rand, W. (2009). Design guidelines for agent based model visualization. Journal of Artificial Societies and Social Simulation (JASSS), 12(2), 1. http://ccl.northwestern.edu/papers/2009/Kornhauser,Wilensky&Rand_DesignGuidelinesABMViz.pdf.

WHAT IS IT?

This model simulates the transmission and perpetuation of a virus in a human population. This version includes alternative visualizations of the model.

Ecological biologists have suggested a number of factors which may influence the survival of a directly transmitted virus within a population. (Yorke, et al. "Seasonality and the requirements for perpetuation and eradication of viruses in populations." Journal of Epidemiology, volume 109, pages 103-123)

HOW IT WORKS

The model is initialized with 150 people, of which 10 are infected. People move randomly about the world in one of three states: healthy but susceptible to infection (green), sick and infectious (red), and healthy and immune (gray). People may die of infection or old age. When the population dips below the environment's "carrying capacity" (set at 300 in this model) healthy people may produce healthy (but susceptible) offspring.

Some of these factors are summarized below with an explanation of how each one is treated in this model.

The density of the population

Population density affects how often infected, immune and susceptible individuals come into contact with each other. You can change the size of the initial population through the NUMBER-PEOPLE slider.

Population turnover

As individuals die, some who die will be infected, some will be susceptible and some will be immune. All the new individuals who are born, replacing those who die, will be susceptible. People may die from the virus, the chances of which are determined by the slider CHANCE-RECOVER, or they may die of old age.

In this model, people die of old age at the age of 50 years. Reproduction rate is constant in this model. Each turn, if the carrying capacity hasn't been reached, every healthy individual has a 1% chance to reproduce.

Degree of immunity

If a person has been infected and recovered, how immune are they to the virus? We often assume that immunity lasts a lifetime and is assured, but in some cases immunity wears off in time and immunity might not be absolutely secure. In this model, immunity is secure, but it only lasts for a year.

Infectiousness (or transmissibility)

How easily does the virus spread? Some viruses with which we are familiar spread very easily. Some viruses spread from the smallest contact every time. Others (the HIV virus, which is responsible for AIDS, for example) require significant contact, perhaps many times, before the virus is transmitted. In this model, infectiousness is determined by the INFECTIOUSNESS slider.

Duration of infectiousness

How long is a person infected before they either recover or die? This length of time is essentially the virus's window of opportunity for transmission to new hosts. In this model, duration of infectiousness is determined by the DURATION slider.

Hard-coded parameters

Four important parameters of this model are set as constants in the code (See setup-constants procedure). They can be exposed as sliders if desired. The turtles’ lifespan is set to 50 years, the carrying capacity of the world is set to 300, the duration of immunity is set to 52 weeks, and the birth-rate is set to a 1 in 100 chance of reproducing per tick when the number of people is less than the carrying capacity.

HOW TO USE IT

Each "tick" represents a week in the time scale of this model.

The INFECTIOUSNESS slider determines how great the chance is that virus transmission will occur when an infected person and susceptible person occupy the same patch. For instance, when the slider is set to 50, the virus will spread roughly once every two chance encounters.

The DURATION slider determines the number of weeks before an infected person either dies or recovers.

The CHANCE-RECOVER slider controls the likelihood that an infection will end in recovery/immunity. When this slider is set at zero, for instance, the infection is always deadly.

The SETUP button resets the graphics and plots and randomly distributes NUMBER-PEOPLE in the view. All but 10 of the people are set to be green susceptible people and 10 red infected people (of randomly distributed ages). The GO button starts the simulation and the plotting function.

The TURTLE-SHAPE chooser controls whether the people are visualized as person shapes or as circles.

When the SHOW-AGE? switch is on, each agent's age in years is displayed as its label.

When the WATCH-A-PERSON? switch is on, a single person at random, the subject, is selected for watching. The subject leaves a trail when it moves, green when the subject is healthy and red when it is sick. An inspector window is opened for that person. When the subject becomes infected, a link is created between the subject and the person who infected him. If one of those people dies, the link disappears. If the subject dies, a new subject is selected.

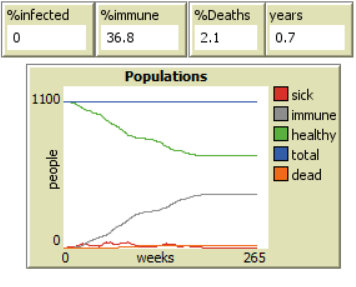

Three output monitors show the percent of the population that is infected, the percent that is immune, and the number of years that have passed. The plot shows (in their respective colors) the number of susceptible, infected, and immune people. It also shows the number of individuals in the total population in blue.

THINGS TO NOTICE

The factors controlled by the three sliders interact to influence how likely the virus is to thrive in this population. Notice that in all cases, these factors must create a balance in which an adequate number of potential hosts remain available to the virus and in which the virus can adequately access those hosts.

Often there will initially be an explosion of infection since no one in the population is immune. This approximates the initial "outbreak" of a viral infection in a population, one that often has devastating consequences for the humans concerned. Soon, however, the virus becomes less common as the population dynamics change. What ultimately happens to the virus is determined by the factors controlled by the sliders.

Notice that viruses that are too successful at first (infecting almost everyone) may not survive in the long term. Since everyone infected generally dies or becomes immune as a result, the potential number of hosts is often limited. The exception to the above is when the DURATION slider is set so high that population turnover (reproduction) can keep up and provide new hosts.

THINGS TO TRY

Think about how different slider values might approximate the dynamics of real-life viruses. The famous Ebola virus in central Africa has a very short duration, a very high infectiousness value, and an extremely low recovery rate. For all the fear this virus has raised, how successful is it? Set the sliders appropriately and watch what happens.

The HIV virus, which causes AIDS, has an extremely long duration, an extremely low recovery rate, but an extremely low infectiousness value. How does a virus with these slider values fare in this model?

EXTENDING THE MODEL

Add additional sliders controlling the carrying capacity of the world (how many people can be in the world at one time), the average lifespan of the people and their birth-rate.

Build a similar model simulating viral infection of a non-human host with very different reproductive rates, lifespans, and population densities.

Add a slider controlling how long immunity lasts. You could also make immunity imperfect, so that immune turtles still have a small chance of getting infected. This chance could get higher over time.

VISUALIZATION

The alternative visualization of the model comes from guidelines presented in Kornhauser, D., Wilensky, U., & Rand, W. (2009). http://ccl.northwestern.edu/papers/2009/Kornhauser,Wilensky&Rand_DesignGuidelinesABMViz.pdf.

The SHOW-AGE? visualization enables the user to track individual agents' lifespans.
The WATCH-A-PERSON visualization enables the user to focus on one subject and to see the "micro-level" interactions, to view which agent infects the subject. You can observe the green trail of a healthy individual, which becomes red when the person gets infected. Additionally, you can see the individual who transmitted the virus linked to the subject by a line.

RELATED MODELS

HIV
Virus
Virus on a Network

CREDITS AND REFERENCES

This model shows alternate visualizations of the Virus model. It uses visualization techniques as recommended in the paper:

Kornhauser, D., Wilensky, U., & Rand, W. (2009). Design guidelines for agent based model visualization. Journal of Artificial Societies and Social Simulation, JASSS, 12(2), 1.

HOW TO CITE

If you mention this model or the NetLogo software in a publication, we ask that you include the citations below.

For the model itself:

Wilensky, U. (1998). NetLogo Virus - Alternative Visualization model. http://ccl.northwestern.edu/netlogo/models/Virus-AlternativeVisualization. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.

Please cite the NetLogo software as:

Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.

COPYRIGHT AND LICENSE

CC BY-NC-SA 3.0

This work is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License. To view a copy of this license, visit https://creativecommons.org/licenses/by-nc-sa/3.0/ or send a letter to Creative Commons, 559 Nathan Abbott Way, Stanford, California 94305, USA.

Commercial licenses are also available. To inquire about commercial licenses, please contact Uri Wilensky at uri@northwestern.edu.

This model was created as part of the projects: PARTICIPATORY SIMULATIONS: NETWORK-BASED DESIGN FOR SYSTEMS LEARNING IN CLASSROOMS and/or INTEGRATED SIMULATION AND MODELING ENVIRONMENT. The project gratefully acknowledges the support of the National Science Foundation (REPP & ROLE programs) -- grant numbers REC #9814682 and REC-0126227.

Comments and Questions

Giovani Thies

File doesn't open. Either In Zip, 7zip or explorer.

It is possible a new file? or... there are some tip to decompress the file? thanks, Giovani - Brazil

Posted over 5 years ago

Emiliano Alvarez

Answer to Giovani

Hi, You can unzip the model via Terminal (using Linux), type: unzip \*.zip \\\ On Windows OS, Modeling Commons zip files have drawbacks. \\\ Search for a zip extractor online, like https://extract.me/ or others. \\\ Thanks, Emiliano.

Posted over 5 years ago

Eric Gladstone

Question Regarding the Modeling of Network Hubs (Question)

Hi I wanted to demonstrate how important network hubs (areas of high density) are in transmitting Covid. Namely, to show people why going camping in large groups of people, and then going to a local hub (grocery story, etc), completely defeats the point of social distancing.

Posted over 5 years ago

Emiliano Alvarez

response to Eric

Well, one possible modification is to increase the density of agents (for example, from 1500 to 5000 agents). It's similar to percolation models (one example to look is "fire model" in netlogo). Another improvement would be to set agents regarding xy (for example, more density when x&rt;0 and y&rt;0). Thanks, Emiliano

Posted over 5 years ago

Click to Run Model

turtles-own
  [ sick?                ;; if true, the turtle is infectious
    remaining-immunity   ;; how many weeks of immunity the turtle has left
    sick-time            ;; how long, in days, the turtle has been infectious
    movement-turtles     ;; movement of each turtle
    sick-symptoms?       ;; if true, the turtle is infectouss and knows it
    days_sick
  age ]                  ;; how many weeks old the turtle is

globals
  [ %infected            ;; what % of the population is infectious
    %immune              ;; what % of the population is immune
    lifespan             ;; the lifespan of a turtle
    chance-reproduce     ;; the probability of a turtle generating an offspring each tick
    chance-recover       ;; the probability of recovery at each tick
;    carrying-capacity    ;; the number of turtles that can be in the world at one time
    immunity-duration    ;; how many weeks immunity lasts
;    sick-not-know-min    ;; how many days a person could be sick without notice
 ;   sick-not-know-max
number-people
    number-dead ]        ;; how many turtles die

;; The setup is divided into four procedures

to setup
  clear-all
  setup-constants
  setup-turtles
  update-global-variables
  update-display
  reset-ticks
end

;; We create a variable number of turtles of which 1 are infectious,
;; and distribute them randomly

to setup-turtles
  create-turtles number-people
    [ setxy random-xcor random-ycor
      set age random lifespan
      set sick-time 0
      set remaining-immunity 0
      set size .7 ;; easier to see
      get-healthy ]
  ask n-of 1 turtles
    [ get-sick ]
end

to get-sick ;; turtle procedure
  set sick? true
  set remaining-immunity 0
end

to get-healthy ;; turtle procedure
  set sick? false
  set sick-symptoms? sick?
  set remaining-immunity 0
  set sick-time 0
end

to become-immune ;; turtle procedure
  set sick? false
  set sick-symptoms? false
  set sick-time 0
  set remaining-immunity immunity-duration
  ask my-links [ die ] ;; remove link to turtle who infected us, if there was one
end

;; This sets up basic constants of the model.

to setup-constants
  set lifespan 80 * 52 * 7     ;; 80 times 52 weeks times 7 days = 50 years = 2600 weeks old = 18200 days
;  set carrying-capacity 1000
  set chance-reproduce 0.34 ;; birth rate per 1000 people per week
  ifelse inmune [set immunity-duration 10000] [set immunity-duration 4 * 7] ;; 4 weeks for immunity duration
  if Weather = "Hot-Humid" [set infectiousness  .9 * infectiousness]
  if Weather = "Hot-Dry" [set infectiousness  .95 * infectiousness]
  if Weather = "Cold-Dry" [set infectiousness  .97 * infectiousness]
  if Weather = "Cold-Humid" [set infectiousness infectiousness]
  set number-people carrying-capacity
;  set sick-not-know-min  4
;  set sick-not-know-max 14
end

to go
  visitor-infected

  ask turtles [
    get-older
    ifelse (age > 60 * 52 * 7) [set movement-turtles (movement * alpha)] [set movement-turtles movement]
    quarantine
    days-sick
    move
    if sick? [ recover-or-die ]
    ifelse sick? [ infect ] [ reproduce ]
  ]
  update-global-variables
  update-display
  tick
  if ticks = time-stop [stop]
end

to days-sick
  ifelse sick? [set days_sick days_sick + 1] [set days_sick 0]
  if ( days_sick > ( sick-not-know-min + 1 + random sick-not-know-max ) ) [set sick-symptoms? true ]
end

to update-global-variables
  if count turtles > 0
    [ set %infected (count turtles with [ sick? ] / count turtles) * 100
      set %immune (count turtles with [ immune? ] / count turtles) * 100 ]
end

to update-display
  ask turtles
    [ if shape != turtle-shape [ set shape turtle-shape ]
      set label ifelse-value show-age? [ floor (age / 364) ] [ "" ]
      set color ifelse-value sick? [ red ] [ ifelse-value immune? [ grey ] [ green ] ]
      if age < 10 * 52 * 7 [set color blue]
      if age > 60 * 52 * 7 [set color yellow]
    ]
  stop-inspecting-dead-agents
  if watch-a-person? and subject = nobody
    [ watch one-of turtles with [ not hidden? ]
      clear-drawing
      ask subject [ pen-down ]
      inspect subject ]
  if not watch-a-person? and subject != nobody
    [ stop-inspecting subject
      ask subject
        [ pen-up
          ask my-links [ die ] ]
      clear-drawing
      reset-perspective ]
  ask patches [
  if Weather = "Hot-Humid" [set pcolor 68]
  if Weather = "Hot-Dry" [set pcolor 48]
  if Weather = "Cold-Dry" [set pcolor 38]
  if Weather = "Cold-Humid" [set pcolor 108]
  ]
end

;;Turtle counting variables are advanced.

to get-older ;; turtle procedure
  ;; Turtles die of old age once their age exceeds the
  ;; lifespan (set at 80 years in this model).
  set age age + 1
  if age > lifespan [ die ]
  if age > 60 * 52 * 7 [ set chance-recover .95]
  if age < 60 * 52 * 7 [ set chance-recover .98]
  if immune? [ set remaining-immunity remaining-immunity - 1 ]
  if sick? [ set sick-time sick-time + 1 ]
end

;; Turtles move about at random.

to move ;; turtle procedure
  rt random 100
  lt random 100
  move-infected
  fd movement-turtles    ; check if agents can be steady when they know that they're infected (1 period after)
end

;; If a turtle is sick, it infects other turtles on the same patch.
;; Immune turtles don't get sick.

to infect ;; turtle procedure
  ask other turtles-here with [ not sick? and not immune? ]
    [ if random-float 1000 < infectiousness
      [ get-sick
        if self = subject             ;; if its the watched turtle getting sick
          [ create-link-with myself   ;; create a link with the one that infected it
            [ set color red
              set thickness .3 ] ] ] ]
end

;; Once the turtle has been sick long enough, it
;; either recovers (and becomes immune) or it dies.

to recover-or-die ;; turtle procedure
  if age > 60 * 52 * 7 [ set chance-recover .90]
  if age < 60 * 52 * 7 [ set chance-recover .97]
  if sick-time > duration                        ;; If the turtle has survived past the virus' duration, then
    [ ifelse random-float 1 < chance-recover   ;; either recover or die
      [ become-immune ]
      [ set number-dead number-dead + 1
        die ]]
end

;; If there are less turtles than the carrying-capacity
;; then turtles can reproduce.

to reproduce
  if count turtles < carrying-capacity and random-float 1 < chance-reproduce
    [ hatch 1
      [ set age 1
        lt 45 fd 1
        pen-up ;; in case we're hatched from the watched turtle
        get-healthy ] ]
end

to-report immune?
  report remaining-immunity > 0
end

to startup
  setup-constants ;; so that carrying-capacity can be used as upper bound of number-people slider
end

to move-infected
   ifelse sick-symptoms? [set movement-turtles movement-turtles / 2] [set movement-turtles movement-turtles]
end

to visitor-infected
if (random-float 1 < prob_infected) [crt 1
    [setxy random-xcor random-ycor
      set age random lifespan
      set sick-symptoms? false
      set sick-time 0
      set remaining-immunity 0
      set size .7 ;; easier to see
      get-sick]]
  if ( count turtles > number-people ) [ ask one-of turtles [die]]
end

to quarantine
  if ( count turtles with [ sick-symptoms? ] > threshold-quarantine )
  [set movement-turtles movement / 10]
end


; Copyright 1998 Uri Wilensky.
; See Info tab for full copyright and license.

There are 10 versions of this model.

Uploaded by	When	Description	Download
Emiliano Alvarez	over 5 years ago	some fixes - people with and without symptoms	Download this version
Emiliano Alvarez	over 5 years ago	bug fixes	Download this version
Emiliano Alvarez	over 5 years ago	bug fixes	Download this version
Emiliano Alvarez	over 5 years ago	plots corrected	Download this version
Emiliano Alvarez	over 5 years ago	bug fixes. quarantine rules and delays between infection and synthoms	Download this version
Emiliano Alvarez	over 5 years ago	fixes on elders' speed	Download this version
Emiliano Alvarez	over 5 years ago	Some fixes. Show mean movement. Prob of visitors (tourist) infected	Download this version
Emiliano Alvarez	over 5 years ago	switch to full-immunity. Alpha to regulate elders' movement	Download this version
Emiliano Alvarez	over 5 years ago	with changes in movement rules	Download this version
Emiliano Alvarez	over 5 years ago	changing carrying capacity, time, movement rules	Download this version

Attached files

File	Type	Description	Last updated
COVID_19 spread with movement rules.png	preview	preview	over 5 years ago, by Emiliano Alvarez	Download

Parent: COVID_19 Spread

This model does not have any descendants.

Graph of models related to 'COVID_19 spread with movement rules'

NetLogo

COVID_19 spread with movement rules

1 collaborator

Close

Tags

Close

ACKNOWLEDGMENT

WHAT IS IT?

HOW IT WORKS

The density of the population

Population turnover

Degree of immunity

Infectiousness (or transmissibility)

Duration of infectiousness

Hard-coded parameters

HOW TO USE IT

THINGS TO NOTICE

THINGS TO TRY

EXTENDING THE MODEL

VISUALIZATION

RELATED MODELS

CREDITS AND REFERENCES

HOW TO CITE

COPYRIGHT AND LICENSE

Comments and Questions

File doesn't open. Either In Zip, 7zip or explorer.

Posted over 5 years ago

Answer to Giovani

Posted over 5 years ago

Question Regarding the Modeling of Network Hubs (Question)

Posted over 5 years ago

response to Eric

Posted over 5 years ago

Attached files
