Community interaction-Mutually beneficial

; Coded in 2022 by Lin Xiang; Last revised in 2022 by Lin Xiang (lxiang75@gmail.com; lin.xiang@uky.edu)
;;
;; If you mention this model in a publication, we ask that you include the citations below.
;;
;; Xiang, L. (2022). Mutually Beneficial Interaction. Department of STEM Education, University of Kentucky, Lexington, KY.
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;


breed [legends legend]
breed [plant1s plant1]
breed [pesticides pesticide]
breed [buildings building]
breed [bees bee]

plant1s-own [visit-1 num-seed nectar]
bees-own [life erg food ]
patches-own [seeding bldg]
Globals [days num-seeds

  running-avg-list-bee running-avg-list-plant1
  mean-total-bee mean-total-plant1

  oil
  honey

]

to-report empty-patches
  report patches with [pcolor >= 62 and seeding = 0 and bldg = 0 and not any? plant1s-here]
end

to-report fresh-flowers
  report plant1s with [nectar > 0 and visit-1 < 2 and shape = "sunflower-1"]
end

to-report building-land
  report patches with [pxcor > min-pxcor and pxcor < max-pxcor and pcolor = 62 and bldg = 0]
end

to setup
  clear-all
  setup-patches
  setup-legends
  setup-plant1s
  setup-bees


  set running-avg-list-bee []
  set running-avg-list-plant1 []

  set oil 0
  set honey 0

  do-plot
  reset-ticks
end

to setup-patches
  ask patches [set pcolor 62]
  ask patches with [pycor < 2 or pycor = max-pycor or pxcor = 0 or pxcor = max-pxcor] [set pcolor white]
  ask patches with [pcolor = 62] [set seeding 0 set bldg 0]
end

to setup-bees

  set-default-shape bees "bee"

    create-bees number-of-bees
    [set color yellow
     set size 0.6
     set erg 10
     set life 0
     setxy 1 + random (world-width - 2)  2 + random (world-height - 3)
    ]
end

to setup-plant1s
  ask n-of number-of-sunflowers empty-patches
    [sprout-plant1s 1
    [set color 26
    set size 1
    set shape "sunflower-1"
    set visit-1 0
    set nectar 1
  ]]
end




;;;;;;;;;;;;;;;;;;;;;
;;   GO PROCEDURE  ;;
;;;;;;;;;;;;;;;;;;;;;

to go
; every 0.01[

 if ticks >= years: * 60 [stop]

  search
  reproduce-bees
  make-nectar
  flower-color
  plant-reproduction
  pesticides-killing
  find-running-avg-1
  ifelse days <= 9 [set days days + 1] [set days 0]
  do-plot
  tick
;]
  if mean-total-plant1 = 0 and mean-total-bee <= 0 [stop]
end

;;;;;;;;;;;;;;;;;;;;;;;;;;

to search
ask bees
  [ifelse any? fresh-flowers in-radius 2
     [let my-goal one-of fresh-flowers in-radius 2
      face my-goal
      move-to my-goal
      set erg erg + 3
      ask my-goal [set nectar 0 set visit-1 visit-1 + 1]]
     [right random 180 left random 180 if [pcolor] of patch-at dx dy = 62 [fd 1 set erg erg - 0.5 if erg <= 0 [die]]]

     ifelse life < 60 [set life life + 1][die]  ;set life-span to allow trapped bees to die out
  ]
end

to harvest-honey
  ifelse count bees > 35
  [set honey 0.1 * (sum [erg] of bees * (20 / 100))
    ask bees [set erg erg * (80 / 100)]]
  [set honey 0]
end

to reproduce-bees
  ask bees
    [if erg >= 20
      [hatch 1 [set erg 10 set life 0]
       set erg erg - 10]]
end

to plant-reproduction
  if days = 9
    [ifelse count plant1s with [visit-1 = 2] > count patches with [pcolor = 62] / 2
      [set oil (count plant1s with [visit-1 = 2] - count patches with [pcolor = 62] / 2) / 2 set num-seeds count patches with [pcolor = 62] / 2]  ;harvest sunflower oil
      [set num-seeds count plant1s with [visit-1 = 2]]

      ask up-to-n-of (2 * num-seeds) patches with [pcolor = 62 and seeding = 0]
        [set seeding 1]

        ask plant1s [die]

    ask patches with [seeding = 1]
      [if bldg = 0
          [if random 100 < 85
            [sprout-plant1s 1
             [set color 26
              set size 1
              set shape "sunflower-1"
              set visit-1 0
                set nectar 1]]]
        set seeding 0]



    harvest-honey
  ]
end

to make-nectar
  ask plant1s with [nectar = 0 and visit-1 < 2]
  [if random 100 < 15    ;produce food at a chance
    [set nectar 1]]
end

to  flower-color
  ask plant1s with [visit-1 >= 2 and shape = "sunflower-1"]
  [set color 35 set shape "sunflower"]
end

to find-running-avg-1   ;find the running average
   (ifelse
    ticks < 30
     [set running-avg-list-bee lput (count bees) running-avg-list-bee set mean-total-bee mean running-avg-list-bee
      set running-avg-list-plant1 lput (count plant1s) running-avg-list-plant1 set mean-total-plant1 mean running-avg-list-plant1
    ]

     [set running-avg-list-bee lput count bees running-avg-list-bee set running-avg-list-bee remove-item 0 running-avg-list-bee set mean-total-bee mean running-avg-list-bee
      set running-avg-list-plant1 lput count plant1s running-avg-list-plant1 set running-avg-list-plant1 remove-item 0 running-avg-list-plant1 set mean-total-plant1 mean running-avg-list-plant1
  ])
end

to deconstruction-1
if any? buildings
  [ask one-of buildings with [pycor = max [pycor] of buildings]
    [ask neighbors with [bldg = 1] [set bldg 0 set pcolor 62] set bldg 0 set pcolor 62 die]]
end

to deconstruction
if any? buildings
  [let demolishing buildings with [pycor = max [pycor] of buildings]
    ask one-of demolishing with [pxcor = max [pxcor] of demolishing]
    [ask neighbors with [bldg = 1] [set bldg 0 set pcolor 62] set bldg 0 set pcolor 62 die]]
end

to building-a-house
    if any? plant1s-here [ask plant1s-here [die]]

    sprout-buildings 1
      [set shape "house-1"
       set size 2
       set color 48
       setxy pxcor - 0.5 pycor
     ]

    set bldg 1 set pcolor 62.5

    ask neighbors with [pcolor = 62]
      [if any? plant1s-here [ask plant1s-here [die]]
          set bldg 1 set pcolor 62.5]
end

to pesticides-killing

   ifelse Bees-killed-by-insecticides > 0
    [if any? plant1s [ask n-of (1 + ((Bees-killed-by-insecticides * count plant1s / 1000))) plant1s [set shape "sunflower-11"]]]
    [if any? plant1s [ask plant1s [ifelse visit-1 < 2 [set color 26 set shape "sunflower-1"][set color 35 set shape "sunflower"]]]]

  ask bees
  [if count bees >= 100 - Bees-killed-by-insecticides
    [if random 2 = 0 [die]]]
end

to building-houses-1

ifelse not any? buildings
  [ask patches with [pxcor = 2 and pycor = 3] [building-a-house ]]
  [ifelse any? building-land with [pycor = 3]
    [ask patches with [pxcor = max [pxcor] of patches with [bldg = 1] + 2 and pycor = 3] [building-a-house]]
    [ifelse not any? buildings with [pycor = 6]
       [ask patches with [pxcor = 2 and pycor = 6] [building-a-house ]]
       [ifelse any? building-land with [pycor = 6]
          [ask patches with [pxcor = max [pxcor] of patches with [bldg = 1 and pycor = 6] + 2 and pycor = 6] [building-a-house]]
          [ifelse not any? buildings with [pycor = 9]
             [ask patches with [pxcor = 2 and pycor = 9] [building-a-house ]]
             [ifelse any? building-land with [pycor = 9]
                [ask patches with [pxcor = max [pxcor] of patches with [bldg = 1 and pycor = 9] + 2 and pycor = 9] [building-a-house]]
                 [ifelse not any? buildings with [pycor = 12]
                    [ask patches with [pxcor = 2 and pycor = 12] [building-a-house ]]
                    [ifelse any? building-land with [pycor = 12]
                      [ask patches with [pxcor = max [pxcor] of patches with [bldg = 1 and pycor = 12] + 2 and pycor = 12] [building-a-house]]
                      [ifelse not any? buildings with [pycor = 15]
                         [ask patches with [pxcor = 2 and pycor = 15] [building-a-house ]]
                         [if any? building-land with [pycor = 15]
                             [ask patches with [pxcor = max [pxcor] of patches with [bldg = 1 and pycor = 15] + 2 and pycor = 15] [building-a-house]]


  ]]]]]]]]]
end

to do-plot  ;; this creates creates the bar graph
    set-current-plot "Oil and Honey Yields"
    clear-plot
    plot-pen-down
    set-current-plot-pen "Sunflower Oil"
    plotxy 0 oil
    set-current-plot-pen "Honey"
    plotxy 1 honey
end

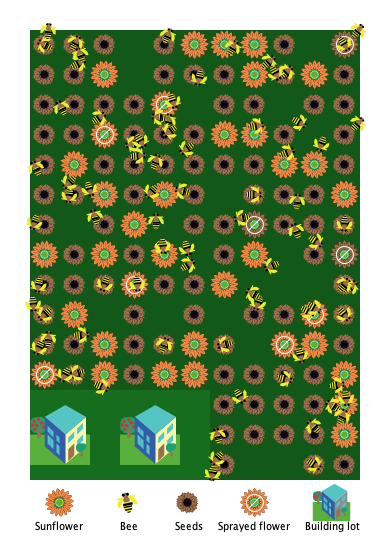

to setup-legends

  create-legends 10

  ask legend 0
  [set shape "sunflower-1"
    set size 1
    set color 26
    setxy 1.5 0.75]

  ask legend 1
  [set shape "bee"
    set color yellow
    set size 0.75
    setxy 3.75 0.75]


  ask legend 2
  [set shape "house-1"
    set color gray
    set size 1.25
    setxy 10.55 0.75]

  ask legend 3
  [set shape "sunflower-11"
    set color 26
    set size 1
    setxy 8 0.75]

  ask legend 4
  [set shape "blank"
    set color 136
    set size 1.5
    set label "Sunflower"
    set label-color 0
    set heading 90
    setxy 1.5 0.5]

  ask legend 5
  [set shape "blank"
    set color 136
    set size 1.5
    set label "Sprayed flower"
    set label-color 0
    set heading 75
    setxy 8.4 0.5]

  ask legend 6
  [set shape "blank"
    set color 136
    set size 1.5
    set label "Bee"
    set label-color 0
    set heading 75
    setxy 3.35 0.5]

  ask legend 7
  [set shape "blank"
    set color 136
    set size 1
    set label "Building lot"
    set label-color 0
    set heading 75
    setxy 11 0.25]

  ask legend 8
  [set shape "sunflower"
    set color 35
    set size 1
    set label ""
    set label-color 0
    set heading 75
    setxy 5.75 0.75]

  ask legend 9
  [set shape "blank"
    set color 136
    set size 1
    set label "Seeds"
    set label-color 0
    set heading 75
    setxy 5.75 0.25]
end
