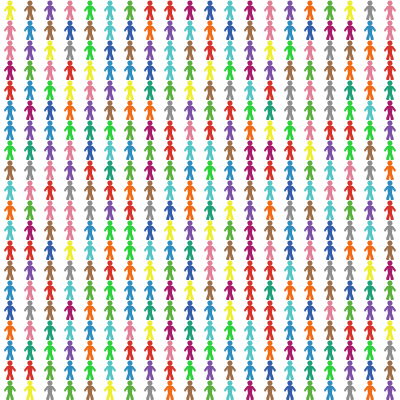

Parrondo on a network preview image

This model is seeking new collaborators — would you please help?

1 collaborator

Tags

game theory

Tagged by Jaroslaw Miszczak 4 months ago

parrondo game

"basic scheme"

Tagged by Jaroslaw Miszczak 4 months ago

Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.2.1 • Viewed 69 times • Downloaded 3 times • Run 0 times
Download the 'Parrondo on a network' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;;
;; internal variables for agents
;;
turtles-own [
  state   ;; current state, 1 - winning, 0 - loosing
  state-1 ;; state in the previous round, 1 - winning, 0 - loosing
  wealth  ;; total wealth, set to some initial value during the setup
]

;;
;; setup the world: creat agents, assign states
;;

to setup
  clear-all
  ask patches [
    set pcolor white
    sprout 1 [
      set wealth intial-wealth
      set shape "person"
      ifelse random-float 1 < 0.5 [
        set state 1
      ][
        set state 0
      ]
      ifelse random-float 1 < 0.5 [
        set state-1 1
      ][
        set state-1 0
      ]
    ]

  ]
  reset-ticks
end

;;
;; main process
;;

to go
  ask one-of turtles [

    ;; position swapping process
    if random-float 1.0 > swap-prob [
      swap-postions
    ]

    ;; include more colors and id
    show-debug-info

    ;;
    ;; main switch based on the type of selected game
    ;;
    ifelse random-float 1.0 < gameA-prob [
      zero-sum-game ;; game A
    ][
      (
        ifelse gameB-type = "capital-based" [
          capital-based-game
        ] gameB-type = "niche-based" [
          niche-based-game
        ] gameB-type = "state-based" [
          state-based-game
        ] gameB-type = "new-type-example" [
          new-type-game
        ]

      )

    ]
  ]
  tick
end

;;
;; exchange postion with one of neighbours
;;

to swap-postions
  let goal one-of neighbors
  let here patch-here
  ;; migrate from the goal
  ask turtles-on goal  [
    ;;set pcolor blue
    move-to here
    show-debug-info
  ]
  ;; move to the goal
  move-to goal
end

;;
;; display some debug information
;;

to show-debug-info
  if debug  [
    show who
    set color black
    set label who
    ifelse state = "winner" [
      set pcolor green
    ][
      set pcolor red
    ]
  ]
end

;;
;;
;;

to warn-unimplemented
  if who = 0 [
    show "[Warning] This function is not implemented yet!"
  ]
end

;;
;; implementation of elementary games used in the schemes
;;

;;
;; game A - zero-sum game played with probability
;;

to zero-sum-game
  ifelse random-float 1.0 < 0.5 [
    set state 1
    set wealth wealth + 1
    ask turtles-on one-of neighbors [
      set state 0
      set wealth wealth - 1
    ]
  ][
    set state 0
    set wealth wealth - 1
    ask turtles-on one-of neighbors [
      set state 1
      set wealth wealth + 1
    ]
  ]
end

;;
;; standard verion of Parronod's scheme, based on the accumulated wealth
;;

to capital-based-game
  ;; local variable for controlling elementary game
  let pWin -1
  ;; check the condition based on divisibility and set the probability
  ifelse wealth mod bigM = 0 [
    set pWin pWinBranch1
  ][
    set pWin pWinBranch2
  ]

  ;; play with p assigned to the apropriate branch
  ifelse random-float 1.0 < pWin [
    set state 1
    set wealth wealth + 1
  ][
    set state 0
    set wealth wealth - 1
  ]
end

;;
;;
;;

to state-based-game
  ;; set the probabilities for all cases
  let probsWinState
  (list
    pWinState00
    pWinState01
    pWinState10
    pWinState11
  )

  ;; save the current state in the history
  set state-1 state

  ;; update the state and the wealth
  ifelse ( random-float 1.0 ) < ( item (2 * state + state-1) probsWinState ) [
    set state 1
    set wealth wealth + 1
  ][
    set state 0
    set wealth wealth - 1
  ]
end

;;
;;
;;

to niche-based-game

  ;; set the probabilities for all cases
  let probsWinNiche
  (list
    pWinNiche0
    pWinNiche1
    pWinNiche2
    pWinNiche3
    pWinNiche4
  )
  ;; read the states of agents in the von Neumann neighborhood
  let whichBranch sum [state] of turtles-on neighbors4

  ;; save the current state in the history
  set state-1 state

  ;; update the state and the wealth
  ifelse ( random-float 1.0 ) < ( item whichBranch probsWinNiche ) [
    set state 1
    set wealth wealth + 1
  ][
    set state 0
    set wealth wealth - 1
  ]
end

;;
;; example of procedure implementing new game B
;;

to new-type-game
  warn-unimplemented
end

;;
;;
;;

to-report mean-state
  report mean [state] of turtles
end

;;
;;
;;

to-report mean-wealth-change
  report  ( mean [wealth] of turtles ) - intial-wealth
end

to-report mean-wealth-change-zero
  report  ( [wealth] of turtle 0 ) - intial-wealth
end
