Asymmetric broadcast consensus

1 collaborator

Luka Grgicevic (Author)

ACKNOWLEDGMENT

Luka Grgičević PhD, NTNU i Ålesund, IIR

WHAT IS IT?

For a more detailed explanation send me an email to luka.grgicevic@ntnu.no

HOW IT WORKS

In this algorithm, one node "i" is activated and it broadcasts the colour to its neighbour "j". Neighbours’ new value "x_j" is then calculated to be somewhere in between the caller node "i" and node "j", depending on the variable "Q" which determines the percentage node "j" is going to change its values toward the caller. The algorithm works also with multiple callers activated and broadcasting its colour to its neighbours at the same time.

HOW TO USE IT

Click "SETUP", "CONNECT" the undirected graph according to the number of nodes chosen and the average node degree (depends on "in" and "out" connections). Choose the "Q" value, that determines the weight each node makes when changing its colour. Click "GO" and speed up if needed.

THINGS TO TRY

Try to tune the "Q" value to reach the initial average consensus.

EXTENDING THE MODEL

Try to implement multiple broadcast nodes. A more advanced task could be to implement a communication loss (occasionally some messages are not received by "j" nodes) and make a modification based on the preservation of mass to still reach the consensus.

HOW TO CITE

For the model itself:

Visit - https://github.com/GrgicevicLukaNTNU

Please cite the NetLogo software as:

Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.

COPYRIGHT AND LICENSE

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

turtles-own [past-state present-state color-initial]

; Create nodes

to setup

  clear-all
  ask patches [set pcolor white]
  let average 0
  create-turtles num-nodes [
    set shape "circle"
    setxy random-xcor random-ycor
    set color random 140
    set color-initial color
    set average average + color
  ]

  ; Print the initial average

  print (word "Initial average is: " (average / num-nodes))
  reset-ticks
end

; Asymmetric broadcast algorithm

to go

 ; Let one node make a broadcast

  ask one-of turtles [

    carefully [

    ; If there are listeners, tell them to change their values somewhere in between, according to the ratio Q

    let P color
    ask link-neighbors [set color (color * Q + P * (1 - Q))]
    ]

    ; If there are no links, remove the node

    [ask turtle who [die]]

  ]

  ; Plot the pens on the graph for each node

    ask turtles [
    create-temporary-plot-pen (word who)
    set-plot-pen-color color-initial
    plot color]

  tick
end

; Connect the nodes

to setup-spatially-clustered-network

  let num-links (average-node-degree * num-nodes) / 2
  while [count links < num-links ]

  [
    ask one-of turtles
    [
      let choice (min-one-of (other turtles with [not link-neighbor? myself]) [distance myself])
      if choice != nobody [ create-link-with choice ]
    ]
  ]

  ; Make the network look a little prettier

  repeat 10
  [
    layout-spring turtles links 0.3 (world-width / (sqrt num-nodes)) 1
  ]
end

There is only one version of this model, created over 2 years ago by Luka Grgicevic.

Attached files

File	Type	Description	Last updated

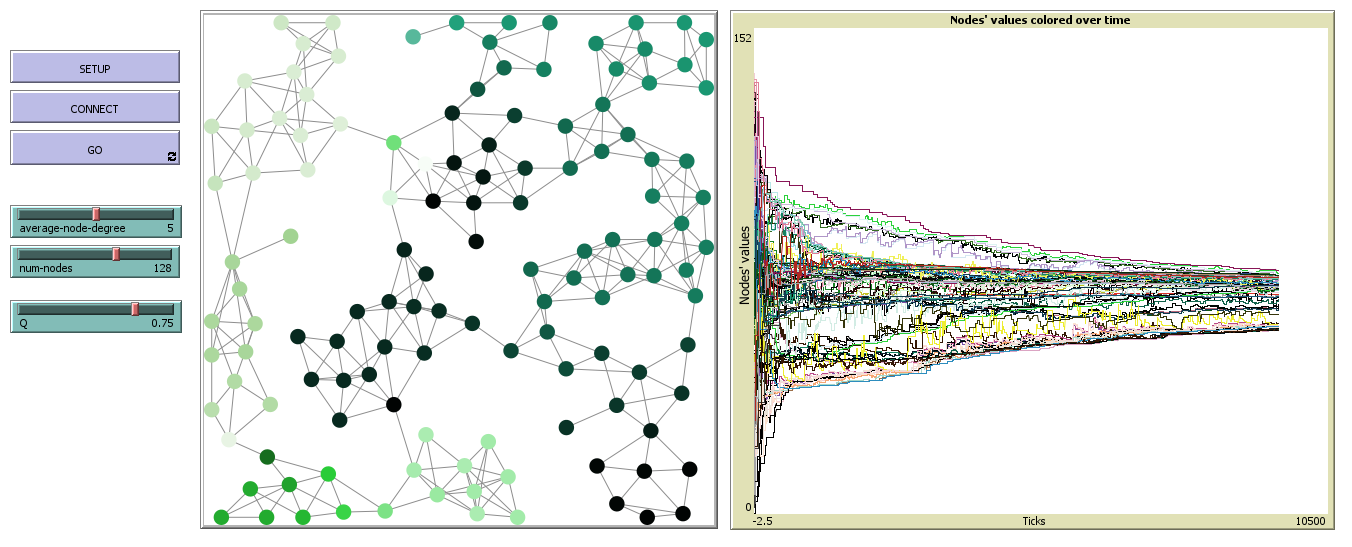

Asymmetric broadcast consensus.png	preview	Preview for 'Asymmetric broadcast consensus'	over 2 years ago, by Luka Grgicevic	Download
